Kramer OSP-MM1 Optical MM 850nm 10G SFP Transceiver
Kramer OSP-MM1 Optical MM 850nm 10G SFP Transceiver
Free Shipping
Kramer OSP-MM1 Optical MM 850nm 10G SFP Transceiver

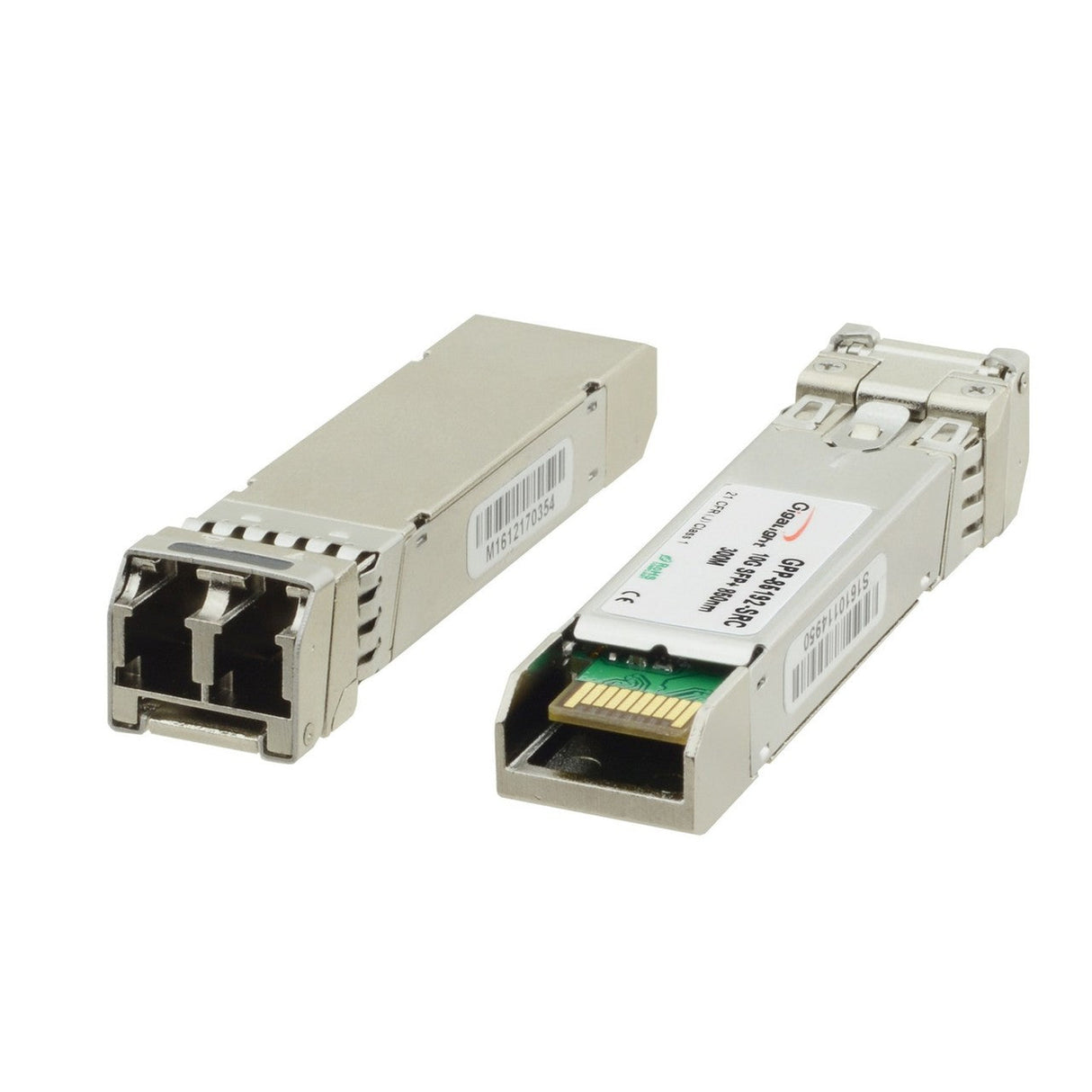

OSP?MM1 is a fiber optic transceiver for 850nm multimode signals. This standard pluggable SFP+ optical module has two LC connectors for reception and transmission of signals over two strands of multimode optical fiber.
Key Features
- Certified SFP+ optical module
- 2strand LCconnected multimode fiber
- Ultrareach Up to 3km (1.8 miles) at 4K@60Hz (4:2:0)
- Data rate - 10.2Gbps
Technical Specifications
OPTICAL LINE
Multimode G.651.1 compliant OFNR fiber
PORTS
2strand simplex fiber optic LC(PC/UPC) connector
Note: Do not use with LC(APC) cable connectors
MAX. REACH
3km (1.8 miles) over OM3 MM fiber
NOMINAL PEAK WAVELENGTH
850nm
MAX. DATA RATE
10.2Gbps
TRANSMITTER TYPE
VCSEL
OPTICAL TYPICAL TRANSMISSION POWER
-2.5dBm
OPTICAL TYPICAL MAXIMUM RECEIVER SENSITIVITY
-11.1dBm
OPTICAL TYPICAL MAXIMUM LOSS BUDGET
8.6dB
STANDARDS COMPLIANCE
IEEE 802.3ae, SFF-8431
LASER SAFETY COMPLIANCE
Laser Class I
REGULATORY CERTIFICATIONS
FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950-2:2007, RoHS6, EMC EN 55022 and EN 55024
POWER CONSUMPTION
1W
OPERATING TEMPERATURE
0Ā° to 70Ā°C
STORAGE TEMPERATURE
-40Ā° to 85Ā°C
HUMIDITY
5% to 95% RH
