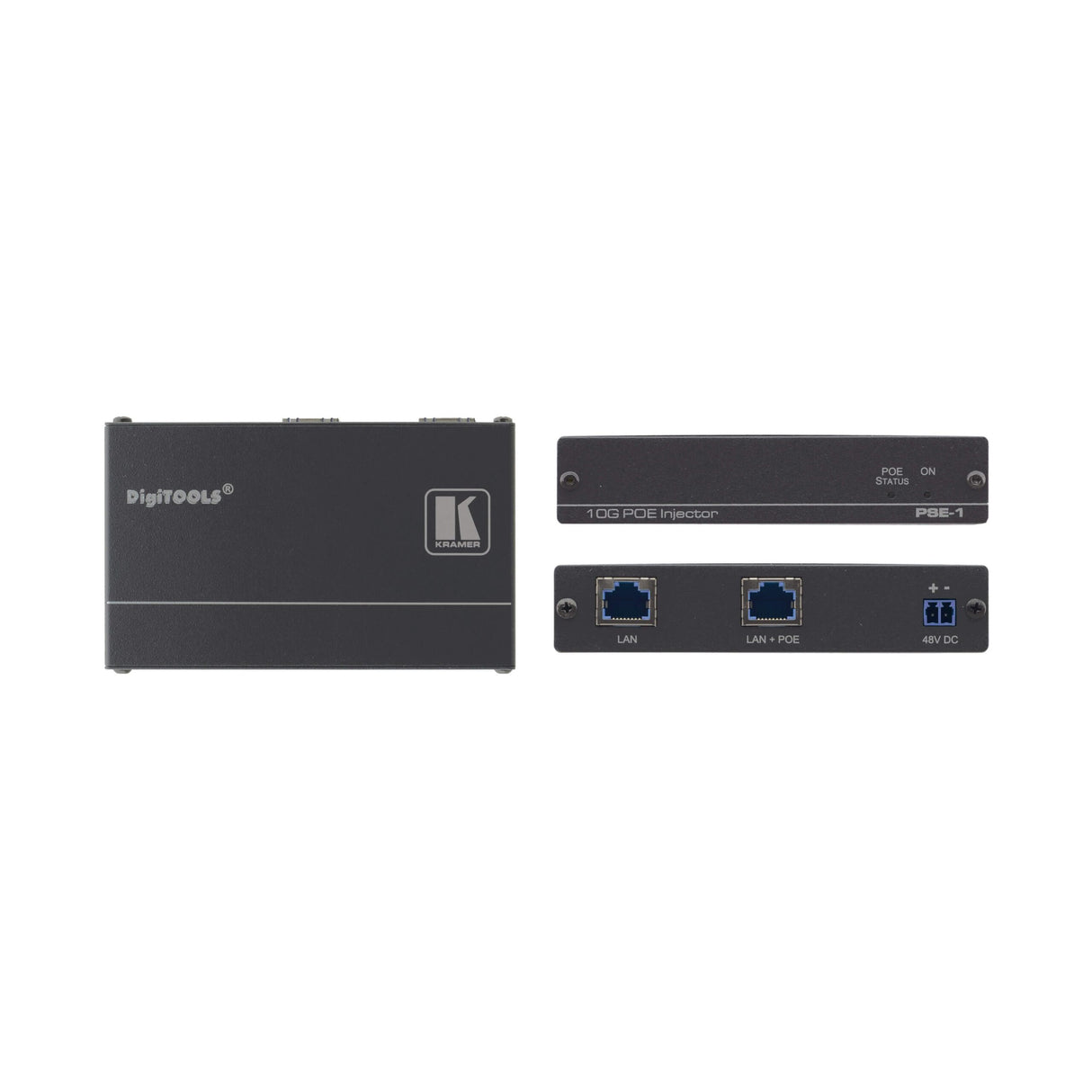

Kramer PSE-1 Single 10G HDBaseT and Ethernet Power Injector
Kramer PSE-1 Single 10G HDBaseT and Ethernet Power Injector
Free Shipping
Kramer PSE-1 Single 10G HDBaseT and Ethernet Power Injector
The PSE-1 provides power remotely over Ethernet to any device capable of acting as a PoE acceptor (for example, a wallplate, where it may be difficult to connect an external power supply). This allows a single HDBT LAN cable to provide both data and electrical power to compatible devices.
Key Features
- Total Range - Up to 100m (328ft) @4K on shielded Kramer HDBaseT cable (or equivalent).
- 48V DC Power.
Technical Specifications
INPUT/OUTPUT
1 HDBaseT/LAN + PoE on an RJ-45 connector, 1 HDBaseT/LAN on an RJ-45 connector
OPERATION BANDWIDTH
Up to 10.2Gbps (3.4Gbps per data channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI, HDCP
INDICATOR LEDS
ON, PoE STATUS
POWER SOURCE
48V DC, 630mA (device plus remote power sink)
POWER PROVISION
Up to 13W
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
COOLING
Convection, vents
ENCLOSURE TYPE
Aluminum
RACK MOUNT
With optional adapter
FURNITURE MOUNT
With included rubber feet
VIBRATION
ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE
CE, c-UL, UL
EMI/EMC REGULATORY COMPLIANCE
CE, C-tick, FCC Class A, ICES, KCC, VCCI
ENVIRONMENTAL REGULATORY COMPLIANCE
Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES
Power supply
WARRANTY
7 years parts and labor
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
