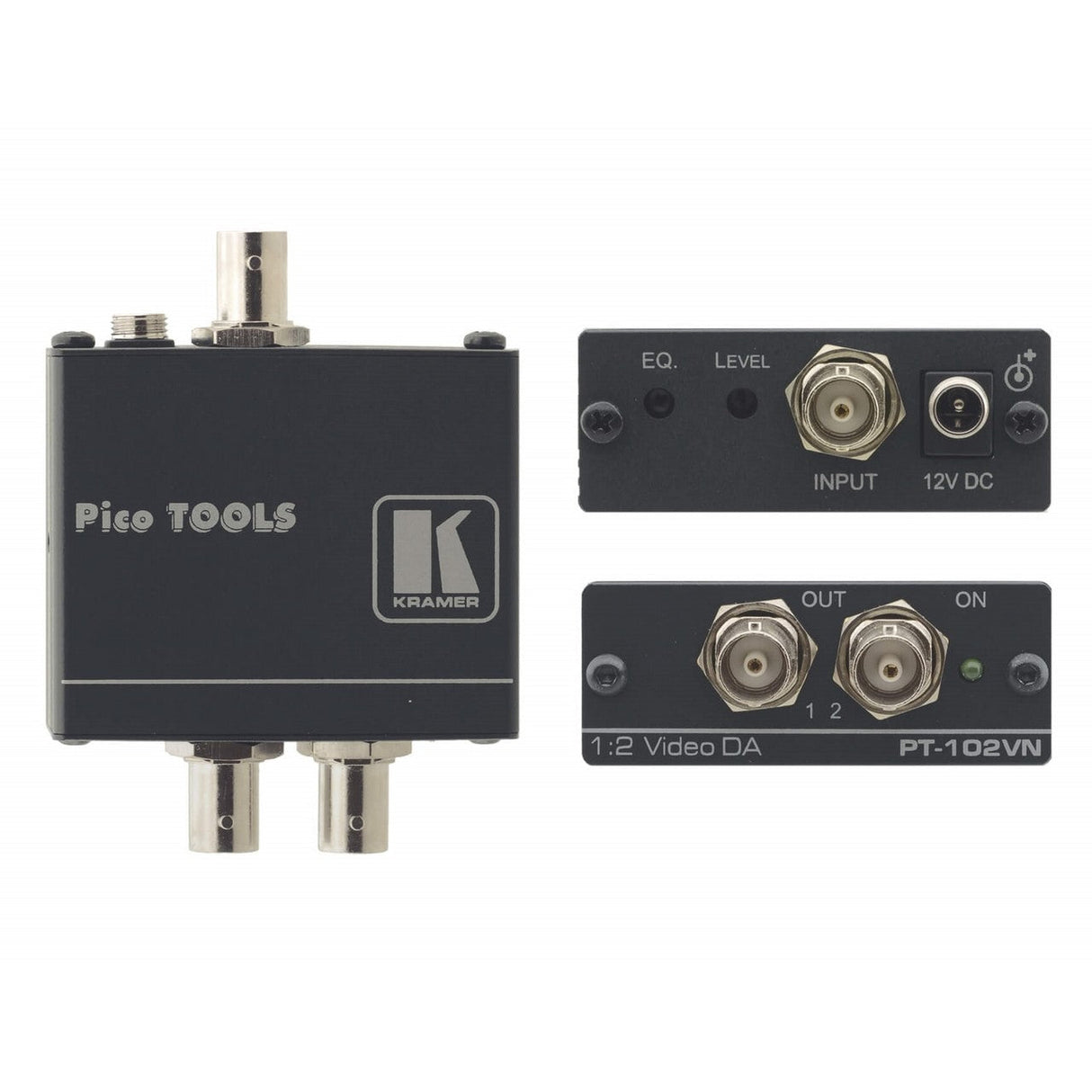

Kramer PT-102VN 1:2 Composite Video Distribution Amplifier
The PT-102VN is a distribution amplifier for composite video or SDI signals. It takes one input, provides correct buffering and isolation and distributes the signal to two identical outputs.
Key Features
- High Bandwidth - 430MHz (-3dB).
- Level (Gain) and EQ (Peaking) Controls.
- Ultra Compact Pico TOOLS - 4 units can be rack mounted sidebyside in a 1U rack space with the optional RK-4PT rack adapter.
Technical Specifications
INPUTS
1 composite or SDI video, 1Vpp/75 ohm on a BNC connector
OUTPUTS
2 composite or SDI video, 1Vpp/75 ohm on BNC connectors
MAX. VIDEO OUTPUT
2Vpp
VIDEO BANDWIDTH (-3DB)
430MHz
DIFF. GAIN
0.05%
DIFF. PHASE
0.05Deg
K-FACTOR
<0.05%
S/N RATIO
76.1dB
CONTROL
Gain: - 1.2 to +6dB
EQ.: 0 to +7.5dB @50MHz via trimmers accessible from the front panel
POWER CONSUMPTION
12V DC, 35mA
INCLUDED ACCESSORIES
Power supply
OPTIONS
RK-4PT 19" rack adapter
PRODUCT DIMENSION
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.1kg (0.3lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.6kg (1.2lbs) approx.
