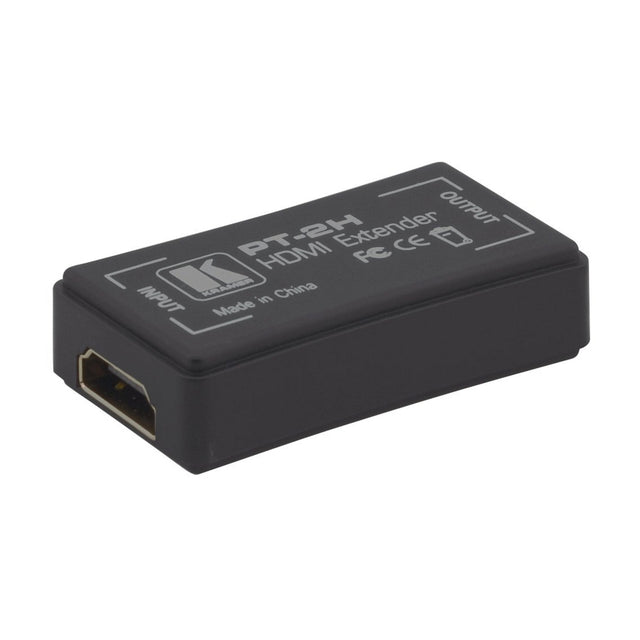

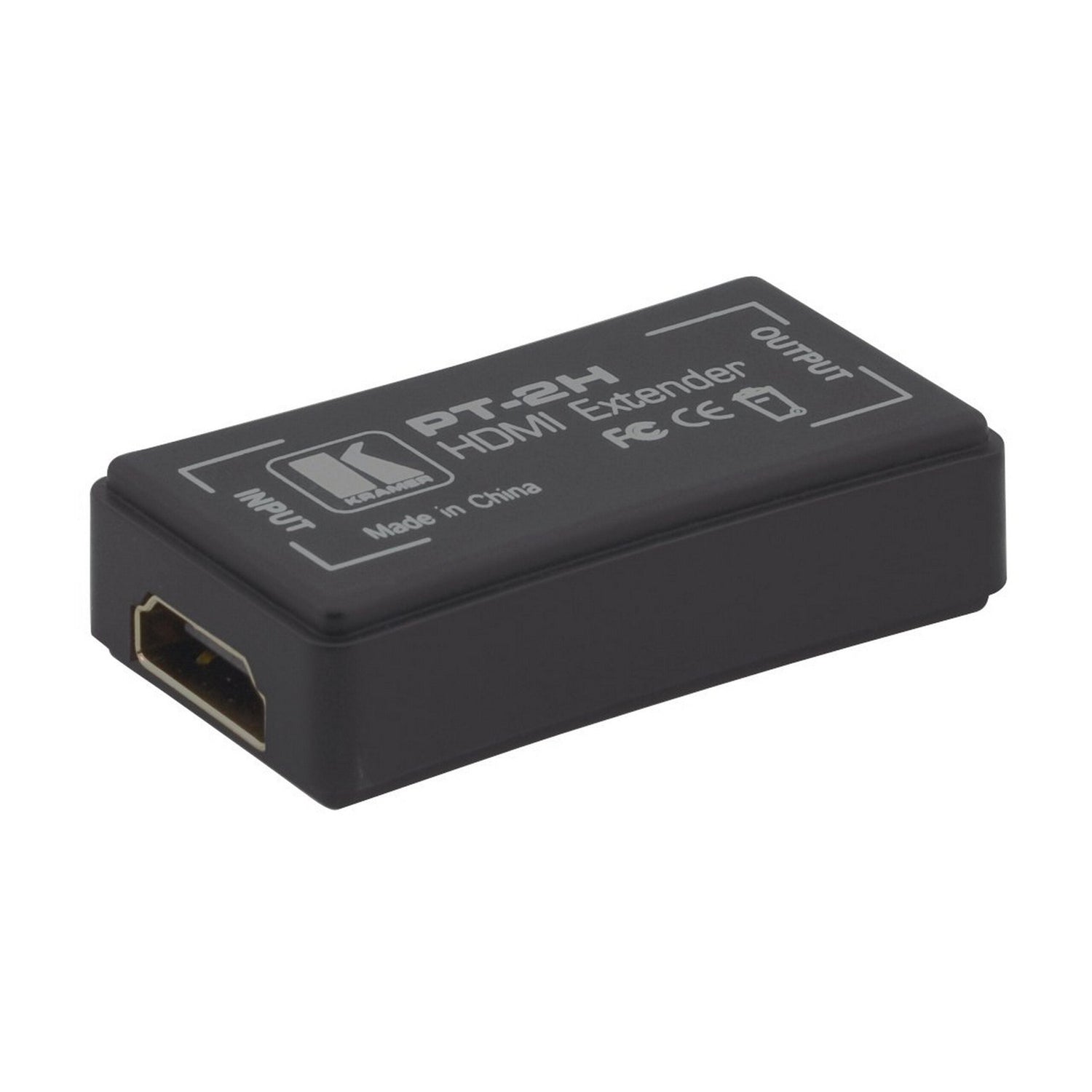

Kramer PT-2H HDMI Equalizer
Kramer PT-2H HDMI Equalizer
Kramer PT-2H HDMI Equalizer
The PT-2H is an equalizer for HDMI signals. The unit removes the digital noise (sparkles) in a video image that results from using a long HDMI cable.
Key Features
- Resolution - Up to 1080p.
- HDTV Compatible.
- HDCP Compliant.
- Range - 38m (120ft).
- Powered from HDMI Source.
Technical Specifications
INPUT
1 HDMI/DVI-TMDS on a type A 19-pin HDMI connector
OUTPUT
1 HDMI, HDCP1.0/1.1 on a type A 19-pin HDMI connector
MAX. DATA RATE
4.95Gbps (1.65Gbps per graphic channel)
HDMI COMPLIANCE
HDMI
RESOLUTION
All resolutions from VGA up to UXGA
DTV/HDTV VIDEO FORMAT
480i, 576i, 480p, 576p, 720p, 1080i, and 1080p
MAX. RANGE
1920 x 1200, 1080p - 38m (120ft): 23m from HDMI source to PT-2H, 15m* from PT-2H to HDMI acceptor. *For older models, 7m from PT-2H to HDMI acceptor (check with your local Kramer office)
PRODUCT DIMENSION
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
