Kramer RC-208/US-D 8-Button I/O Control Keypad, US

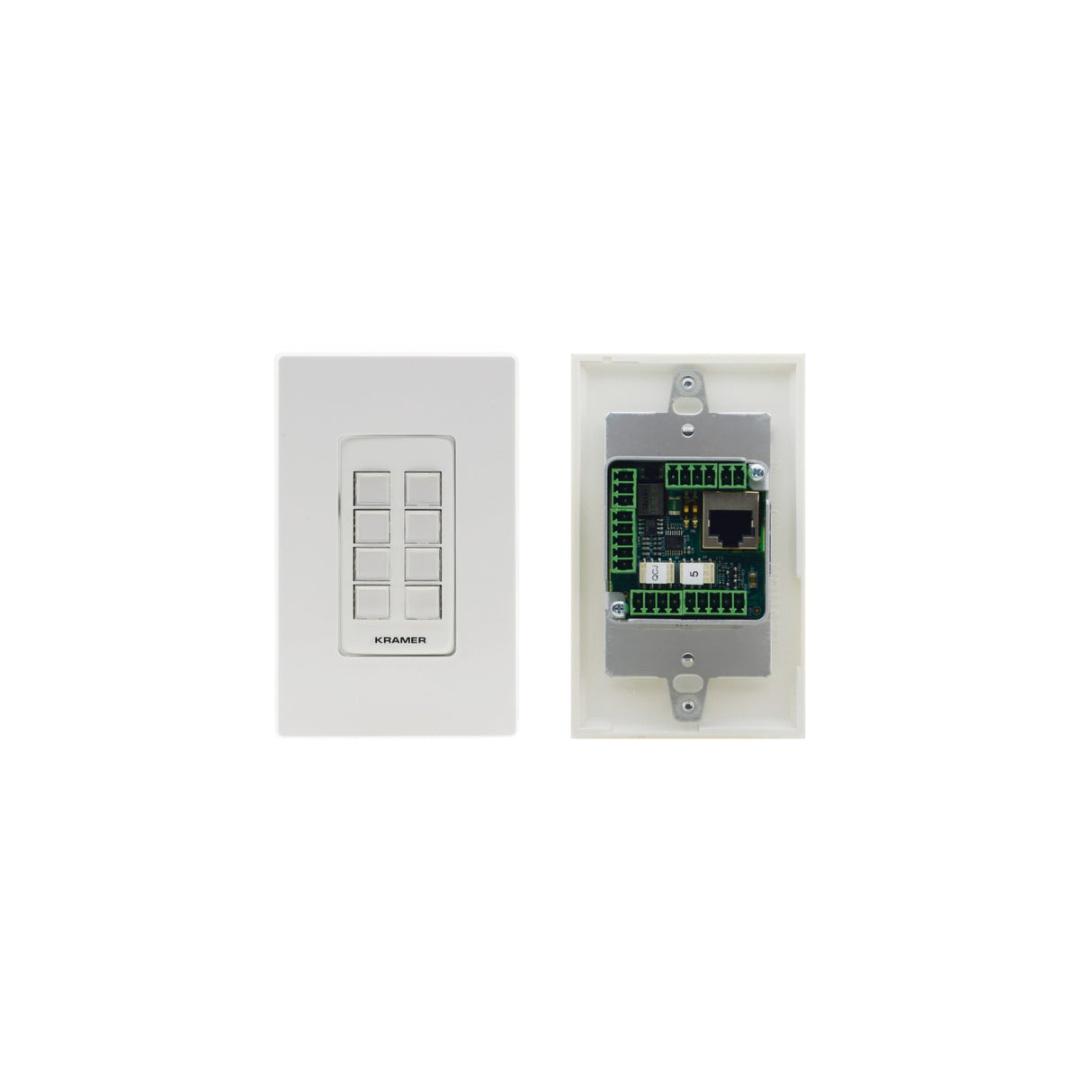

RC-208 is a compact 8-button control keypad that fits US, European and UK standard 1-gang wall junction boxes. Easy to deploy, RC-208 fits decoratively within a room design. It is perfectly suited for use as a user interface keypad within a Kramer Control system. Using K-Config, tap into the rich, built-in I/O interfaces that enable this keypad to be used as a flexible, standalone room controller. In this way, it is ideal for classroom and meeting room control, providing end-user convenient control of complex multimedia systems and other room facilities such as screens, lighting and shades.
Key Features
- 8 RGB-color, backlit buttons
- Connectable to auxiliary KNET keypads
Technical Specifications
INPUTS
1 IR Sensor: For IR learning
OUTPUTS
2 IR: On 2-pin terminal block connectors
PORTS
1 Ethernet: On an RJ-45 female connector for device configuration, control and firmware upgrade
2 RS-232: On 3-pin terminal block connectors
1 RS-485: On a 3-pin terminal block connector
1 K-NET: On a 4-pin terminal block connector
2 Relays: On 2-pin terminal block connectors (30V DC, 1A max)
1 GPI/O: On a 2-pin terminal block connector
1 Mini USB: On a female mini USB-B connector for configuration and firmware upgrade
DEFAULT IP SETTINGS
DHCP Enabled
POWER
Source: 12V DC 2A power supply
Consumption: 12V DC, 780mA
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
REGULATORY
Safety: CE, UL
Environmental: RoHs, WEEE
ENCLOSURE
Size: 1 Gang wall plate
Cooling: Convection ventilation
ACCESSORIES
Included: 12V DC power adapter, special tweezers for removing button caps, standard button label set (8.8mm x 8.8mm)
PRODUCT DIMENSION
US: 6.98cm x 4.70cm x 11.43cm (2.75" x 1.85" x 4.50" ) W, D, H
PRODUCT WEIGHT
US: 0.1kg (0.2lbs) approx.
EU: 0.1kg (0.2lbs) approx.
SHIPPING DIMENSION
US: 23.20cm x 13.60cm x 10.00cm (9.13" x 5.35" x 3.94" ) W, D, H
SHIPPING WEIGHT
US: 0.4kg (0.8lbs) approx.
