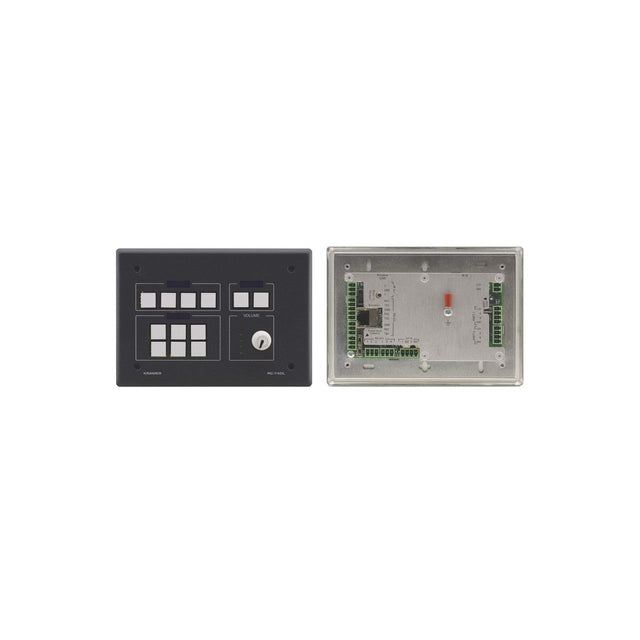

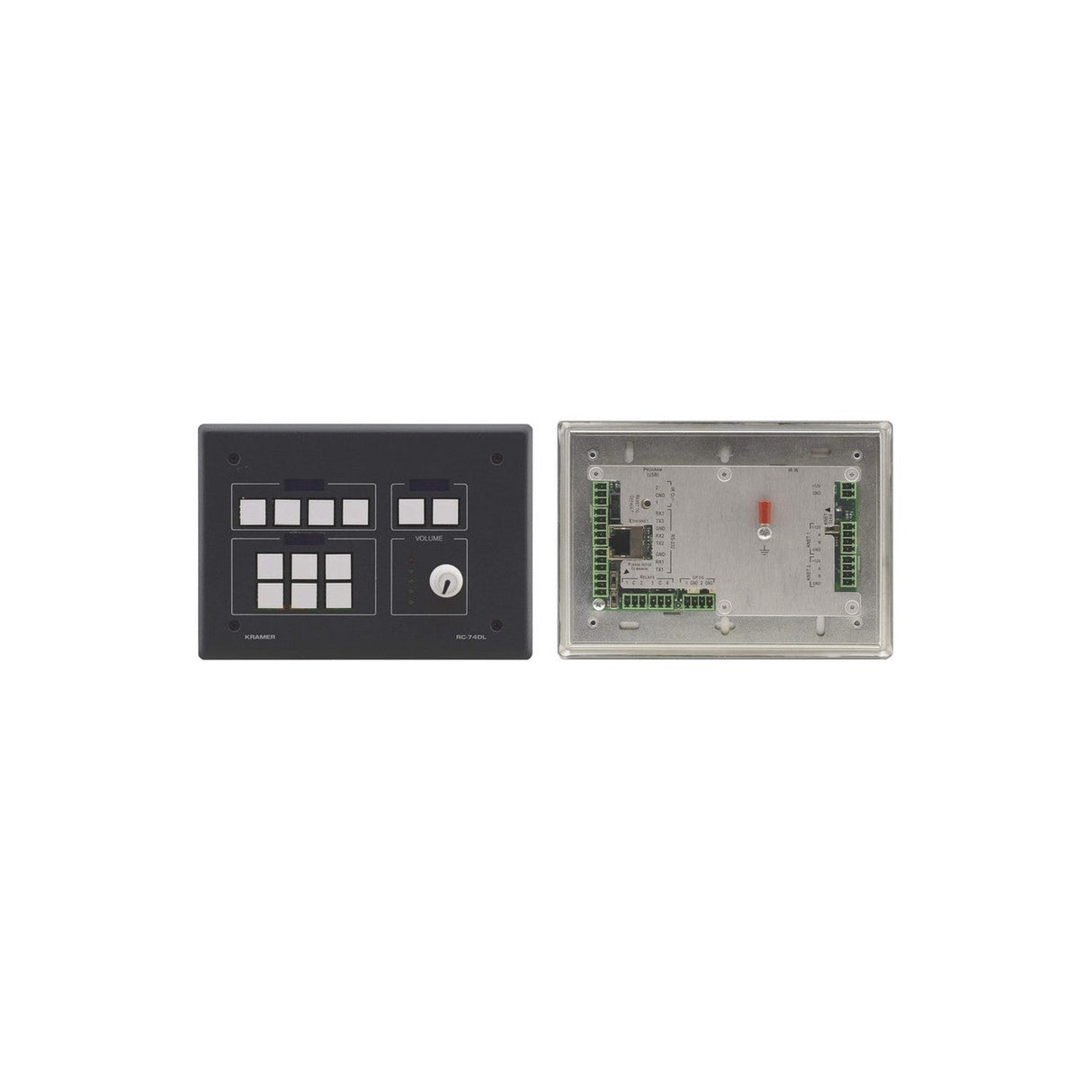

Kramer RC-74DL 12 Button Ethernet K Net Control Keypad Black
The RC?74DL is a 12button control keypad, with knob and LCD displays. It is a versatile device that connects to powerful control tools: over Ethernet it connects to Kramer's Site?CTRL, a remote AV control, site management & monitoring system. For extended controlled device capacity it connects to LAN?connected control gateways. For remote keypad control it connects via KNET to master room controllers and auxiliary keypads. It flexibly serves either as a standalone room controller, part of multi?units KNET system, or part of multi?unit Ethernet system managed by Kramer Site?CTRL site management platform. The RC?74DL is ideal for auditoriums and meeting rooms, for convenient control of their complex multimedia systems and other room facilities such as screens, lighting and shades.
Key Features
- 12 RGBcolor, backlit buttons
- Custom labeled, removable button caps
- Digital knob for volume control
- 3 8characters programconfigurable LCD displays
- 1 Ethernet port
- 2 KNET ports
- 3 Bidirectional RS-232port
- 2 IR emitter port
- 4 Relay ports
- 1 IR sensor for learning
- SiteCTRL software compatible
- Mounts in standard 3 gang US wall junction boxes
Technical Specifications
PORTS
1 RS-485, 3 RS-232, 2 GPI/O, 2 KNET on terminal block connectors, 1 Ethernet on an RJ-45 connector, 1 infrared sensor , 1 mini USB for programming
OUTPUTS
2 IR emitter, 4 relays (36V AC or DC, 2A, 60V AC maximum on noninductive load), on terminal block connectors
DEFAULT IP SETTINGS
IP number 192.168.1.39
Mask - 255.255.0.0
Gateway - 0.0.0.0
POWER CONSUMPTION
12V DC, 570mA
OPERATING TEMPERATURE 0° TO +40°C (32° TO 104°F).
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE 40° TO +70°C (?40° TO 158°F).
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F)
HUMIDITY 10% TO 90%, RHL NON?CONDENSING.
HUMIDITY: 10% to 90%, RHL noncondensing
INCLUDED ACCESSORIES
Power supply, mud ring, label set, screwdriver
PRODUCT DIMENSION
16.20cm x 0.00cm x 11.40cm (6.38" x 0.00" x 4.49" ) W, D, H
PRODUCT WEIGHT
0.6kg (1.3lbs) approx
SHIPPING DIMENSION
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.6lbs) approx
