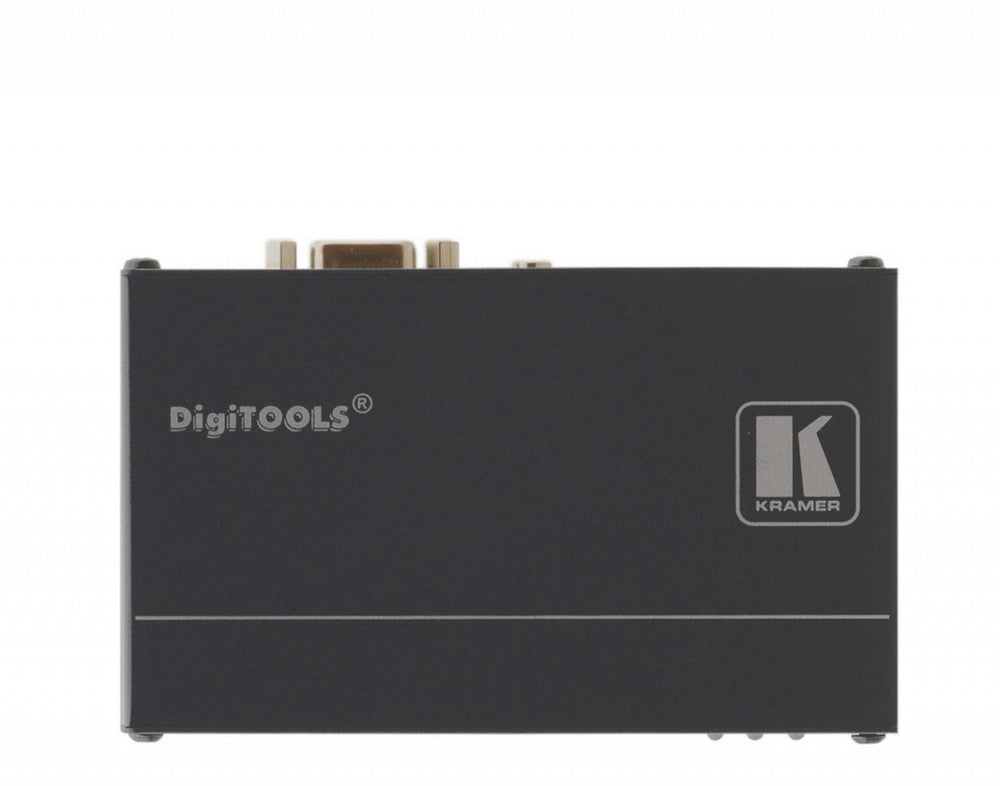

Kramer TP-574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver

Kramer | SKU: KRMR-RCVER-TP574
$22000

Free Shipping



Last 1


Estimated Shipping Widget will be displayed here!


Condition: New

Kramer TP-574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver

The Kramer TP574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver is a DGKat twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals

Key Features

  • Max. Data Rate – 4.95Gbps
  • HDTV Compatible
  • HDCP Compliant
  • HDMI Support
  • 3D Pass-Through
  • EDID PassThru
  • Bidirectional RS-232 & IR Interface
  • DGKat Signal Integration
  • Power Connect System
  • Compact DigiTOOLS

Technical Specs

Inputs

1 x CAT 5 In on an RJ-45 connector

Outputs

1 x HDMI connector

1 x Bidirectional IR port on a 3.5mm mini jack

1 x Bidirectional RS-232 port on a 9-pin D-sub connector

Bandwidth

4.95Gbps (1.65Gbps per graphic channel)

Compliance with HDMI Standard

Supports HDMI and HDCP

Power Consumption

12V DC from TP-573

Dimensions (W x D x H)

12.1cm x 7.18cm x 2.42cm (4.76ā€ x 2.83ā€ x 0.95ā€)

Weight

0.3kg (0.67lbs.) approx.

Accessories

12V DC power supply

Options

RK-3T 19ā€ rack mount, Kramer remote external

Kramer TP-574 HDMI Bidirectional RS-232 & IR over Twisted Pair Receiver
Kramer

Kramer TP-574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver

$22000

Free Shipping

Kramer TP-574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver

The Kramer TP574 HDMI, Bidirectional RS-232 & IR over Twisted Pair Receiver is a DGKat twisted pair receiver for HDMI, bidirectional RS-232 and infrared signals. The TP-573 converts the input signals to a twisted pair signal and the TP-574 converts it back to HDMI, RS-232 and infrared signals

Key Features

Technical Specs

Inputs

1 x CAT 5 In on an RJ-45 connector

Outputs

1 x HDMI connector

1 x Bidirectional IR port on a 3.5mm mini jack

1 x Bidirectional RS-232 port on a 9-pin D-sub connector

Bandwidth

4.95Gbps (1.65Gbps per graphic channel)

Compliance with HDMI Standard

Supports HDMI and HDCP

Power Consumption

12V DC from TP-573

Dimensions (W x D x H)

12.1cm x 7.18cm x 2.42cm (4.76ā€ x 2.83ā€ x 0.95ā€)

Weight

0.3kg (0.67lbs.) approx.

Accessories

12V DC power supply

Options

RK-3T 19ā€ rack mount, Kramer remote external
