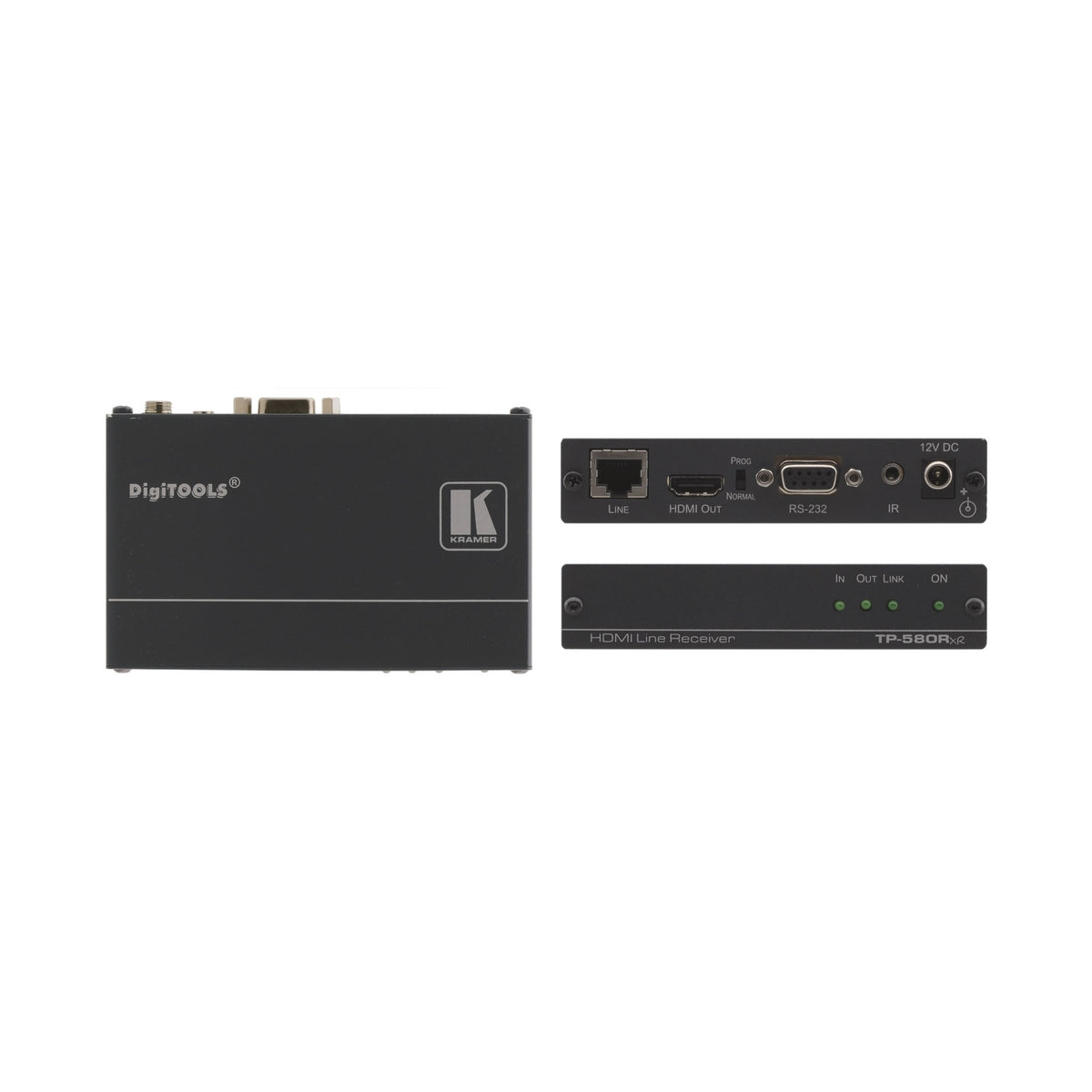

Kramer TP-580RXR HDMI Bidirectional RS-232 IR over Extended Range HDBaseT Twisted Pair Receiver

The TP-580RXR is an extended range, HDBaseT twisted pair receiver for HDMI, bidirectional RS-232 and IR signals. The TP-580RXR receives an HDBaseT twisted pair signal from the TP-580TXR and converts it back into HDMI, RS-232 and IR signals.

Key Features

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliance.
• HDBaseT™ Technology.
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
• 3D Pass-Through.
• EDID PassThru - Passes EDID signals between the source and display.
• 2K & 4K Support.
• Bidirectional RS-232 & IR Interface. - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and remote control of the destination unit.
• System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables
• Cable - For optimum range and performance using HDBaseT™, use Kramer's BC−HDKat6a cable. Note that the transmission range depends on the signal resolution, source and display used. The distance using non−Kramer CAT 6 cable may not reach these ranges.
• Indicators - Status LEDs for input, output, link and power.
• Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T universal rack adapter.

Technical Specifications

INPUTS:1 HDBaseT twisted pair RJ−45 connector.
OUTPUTS: 1 HDMI connector.
PORTS: 1 IR on a 3.5mm mini jack, 1 RS−232 on a 9−pin D−sub connector.
MAX. DATA RATE: 10.2Gbps (3.4Gbps per graphic channel).
RS-232 BAUD RATE: 115200.
COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
POWER CONSUMPTION: 12V DC, 500mA.
OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F).
STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F).
HUMIDITY: 10% to 90%, RHL non−condensing.
DIMENSIONS: 12cm x 7.6cm x 2.4cm (4.7" x 3" x 1.0") W, D, H.
WEIGHT: 0.6kg (1.4lbs).
INCLUDED ACCESSORIES: Power supply.
OPTIONS: RK−3T 19” rack mount.
