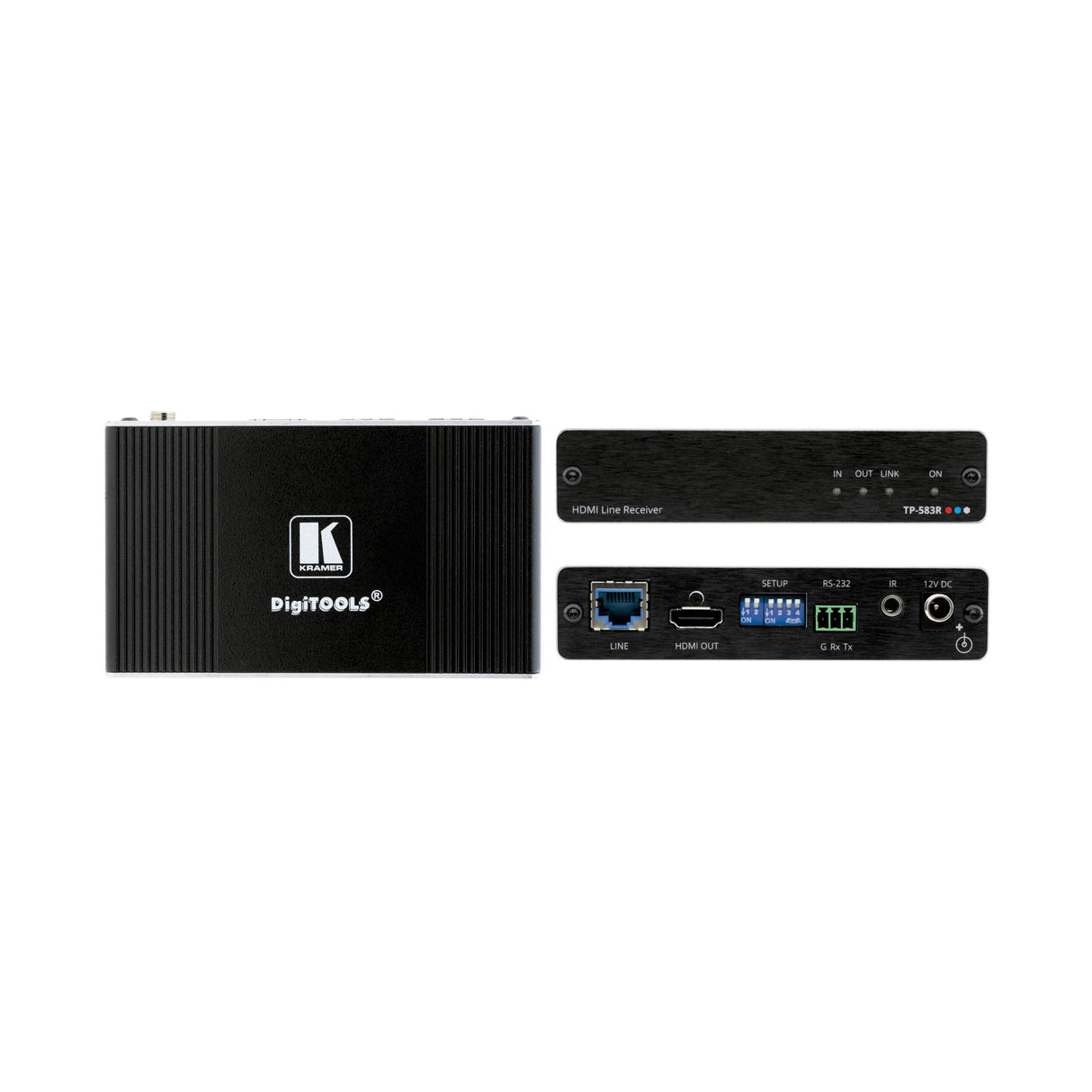

Kramer TP-583R 4K HDR HDMI Receiver with RS-232 and IR
TP-583R is a high-performance , long-reach HDBaseT receiver for 4K HDR HDMI, RS-232 and IR signals over twisted pair. TP-583R converts the HDBaseT signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 70m (230ft) over Kramer copper cables at up to 4K@60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT-compliant extenders at 4K@30Hz and HD video resolutions.
Key Features
- HDBaseT 1.0 receiver
- Up to 40m (130ft) at 4K@60Hz (4:4:4)
- Up to 70m (230ft) at up to 4K@30Hz (4:4:4)
- Bidirectional RS-232 & IR control extension
Technical Specifications
INPUTS
1 HDBT: On an RJ-45 connector
OUTPUTS
1 HDMI: On a female HDMI connector
PORTS
1 RS-232: On a 3-pin terminal block connector for serial link extension
1 IR: On a 3.5mm mini jack connector
EXTENSION LINE
Standard Compression: Up to 40m (130ft) at 4K@60Hz (4:4:4) or 4K@60Hz (4:2:0)
Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
High Compression: Up to 70m (230ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0), or full HD (1080p @60Hz 36bpp)
No Compression Extension: Up to 40m (130ft) at 4K@60Hz (4:2:0)
Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
Standards Compliance: HDBaseT 1.0
Note: When using recommended Kramer cables
VIDEO
Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
Standard Compression Max Resolution: 4096x2160@60Hz (4:4:4) 24bpp
High Compression Max Resolution: 3840x2160@60Hz (4:4:4) 24bpp
No Compression Max Resolution: 4096x2160@60Hz (4:2:0) 24bpp
Compliance: HDCP 2.2, HDR 10
HDMI Support: Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
EXTENDED BIDIRECTIONAL RS-232
300 to 115200 baud rate
EXTENDED BIDIRECTIONAL IR
20kHz to 100kHz frequency
USER INTERFACE
Indicators: IN, OUT, LINK and ON LEDs
Controls: DIP-switches
POWER
Source: 12V DC, 2A
Consumption: 680mA
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE, UL
Environmental: RoHs, WEEE
ENCLOSURE
Size: DigiTOOLS
Type: Aluminum
Cooling: Convection ventilation
ACCESSORIES
Included: Power adapter, power cord, bracket set
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.3kg (0.6lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.5lbs) approx.
