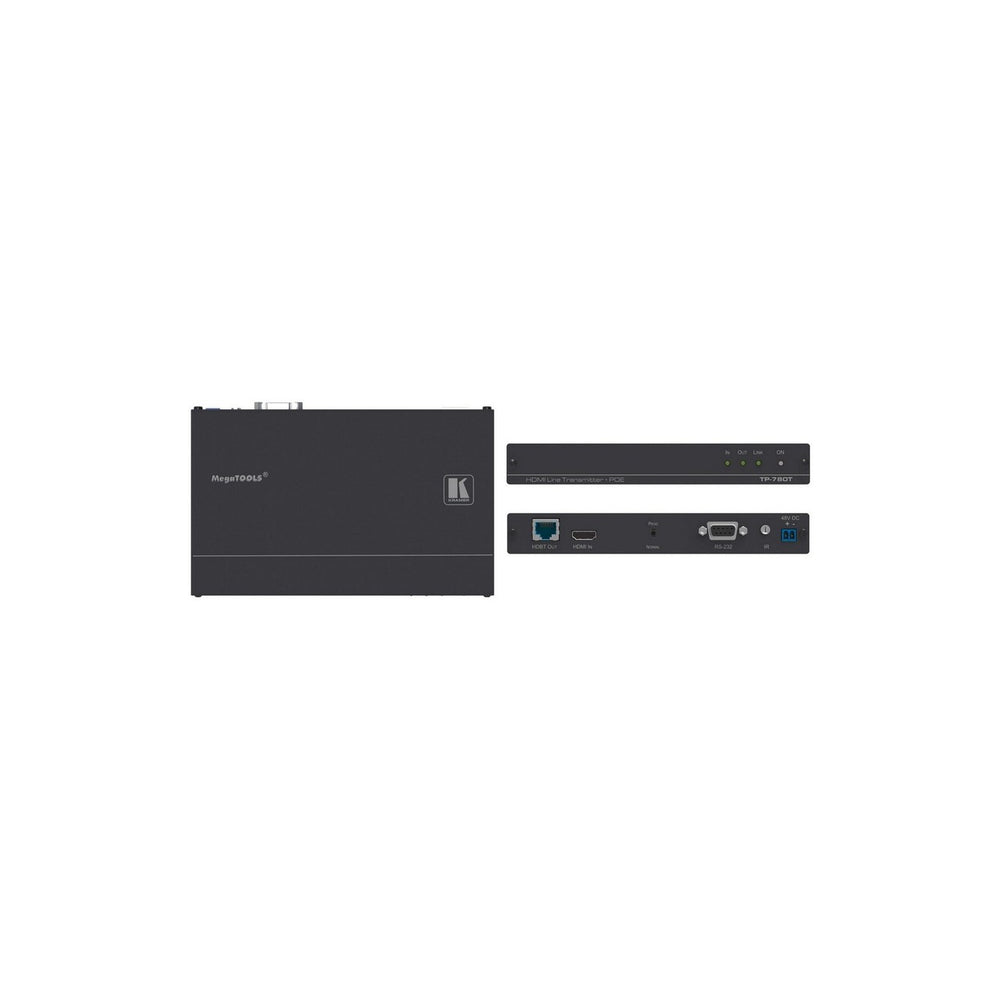

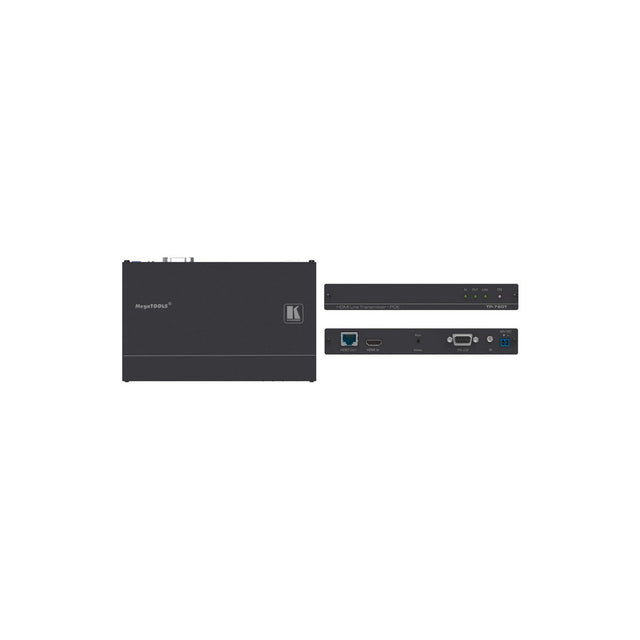

Kramer TP-780T 4K60 HDMI HDCP PoE RS 232 HDBaseT Transmitter
The TP-780T is a high-performance , long-reach HDBaseT transmitter for 4K@60Hz (4:2:0) HDMI, RS?232 and IR signals over twisted pair. The TP-780T converts all input signals into an HDBaseT signal that it transmits over twisted pair. The extended HDBaseT signal is decoded by the receiver, such as Kramer TP-780R, back to 4K@60Hz (4:2:0) HDMI, RS?232 and IR output signals.
Key Features
- Reach Extension Up to 40m (130ft) at 4K@60Hz (4:2:0); up to 70m (230ft) at full HD (1080p @60Hz 36bpp), when using Kramer HDBaseT cables.
- Transmitted Data Bandwidth Up to 10.2Gbps (3.4Gbps per graphic channel).
- Transmitter Compliance Complies with HDBaseT receiver.
- Video Resolution Up to 4K@60Hz (4:2:0) 24bpp.
- HDMI Signal Transmission HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS HD, CEC, Full HD, 2K, 4K, and 3D.
- Multi channel Audio Transmission Up to 32 channels of digital stereo uncompressed signals for supporting surround sound at studio level.
- EDID and CEC Pass Through Passes EDID and CEC signals from the source to the display.
- Bidirectional RS-232 Transmission Serial interface data flows in both directions to allow data transmission and device control.
- Bidirectional Infrared Transmission IR interface data flows in both directions to allow remote control of peripheral devices located at either end of the extended line.
- Firmware Upgrade Local upgrade via RS-232 control connection and the
- KUpload tool to ensure field proven deployment.
Technical Specifications
INPUTS
1 HDMI connector
OUTPUTS
1 RJ-45 connector
PORTS
1 IR on a 3.5mm mini jack, 1 RS-232 on a 9pin Dsub connector
MAX. DATA RATE
Supports up to 10.2Gbps (3.4Gbps per graphic channel)
RS-232 BAUD RATE
115200
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
POWER CONSUMPTION
48V DC, 240mA
OPERATING TEMPERATURE
0Ā° to 40Ā°C (32Ā° to 104Ā°F)
STORAGE TEMPERATURE
-40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
HUMIDITY
10% to 90%, RHL noncondensing
INCLUDED ACCESSORIES
Power supply
OPTIONS
RKT2B 19ā rack mount, Kramer external IR sensor (P/N: 95-0104050), Kramer IR emitter cable (P/N: CA35/IRE-10)
PRODUCT DIMENSION
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
0.4kg (1.0lbs) approx
SHIPPING DIMENSION
34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT
1.0kg (2.2lbs) approx
