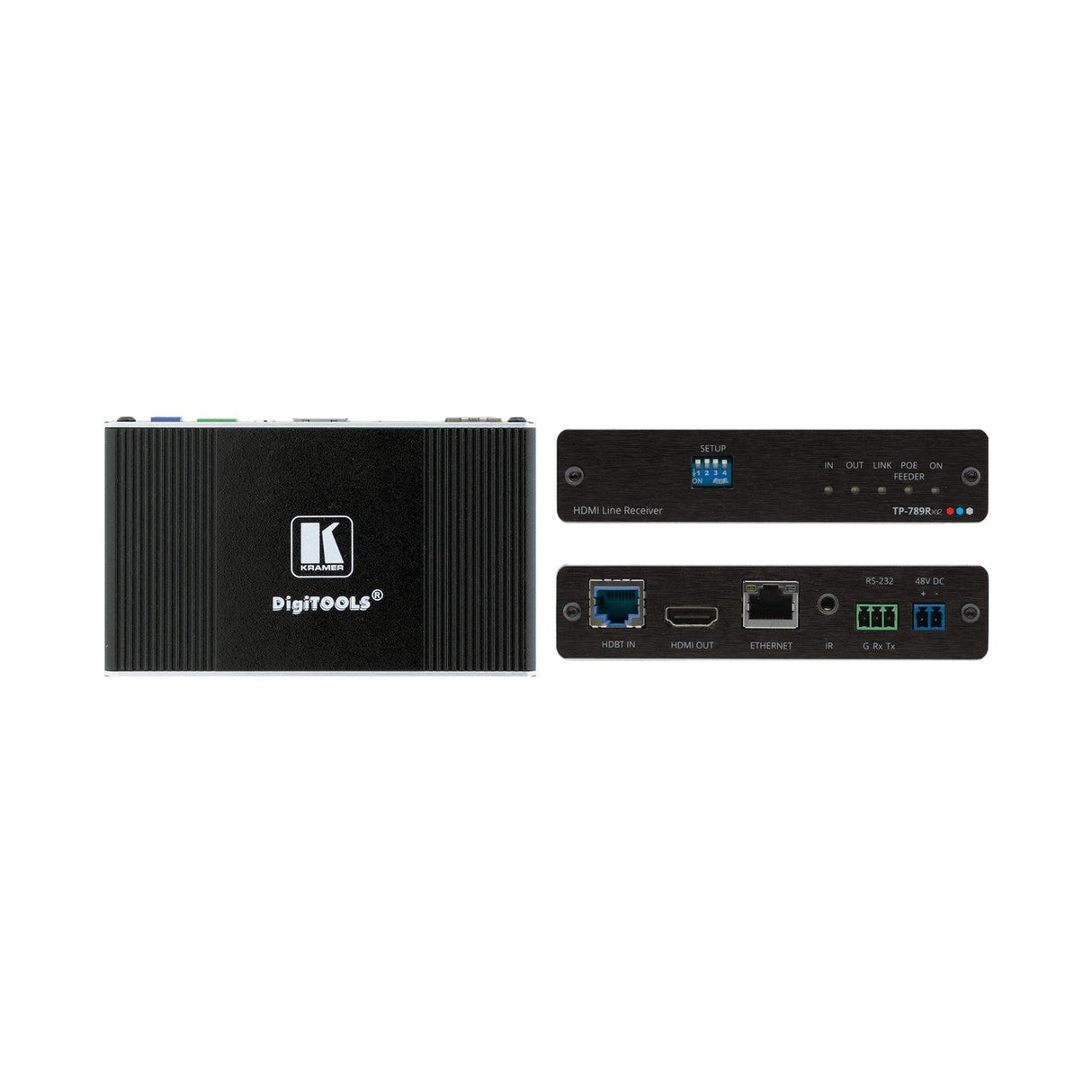

Kramer TP-789RXR 4K60 4:2:0 HDMI HDCP 2.2 Compact Bidirectional PoE Receiver with Ethernet
TP-789Rxr is a high-performance, extended-reach HDBaseT receiver for 4K60Hz (4:2:0) HDMI, Ethernet, RS-232 and IR signals and 2-way powering over twisted pair. It extends video signals to up to 100m (330ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This receiver either provides power over the copper extension cable to a POE (Power over Ethernet) acceptor device such as a PoE wall-plate, or accepts PoE through the extension cable from a PoE provider remote device, as auto-sensed by the receiver.
Key Features
- HDBaseT 1.0 receiver
- Bidirectional PoE (Power over Ethernet/HDBaseT)
- Up to 180m (590ft) at 1080p
- Up to 100m (330ft) at 4K@60Hz (4:2:0)
- Ethernet and control extension
Technical Specifications
INPUTS
1 HDBT
On a female RJ-45 connector
OUTPUTS
1 HDMI
On a female HDMI connector
PORTS
1 IR
On a 3.5mm mini jack for IR link extension
1 RS-232
On a 3-pin terminal block connector for serial link extension and device firmware upgrade
1 100BaseT Ethernet: On an RJ-45 female connector for LAN extension
EXTENSION LINE
Up to 100m (330ft)
At 4K@60Hz (4:2:0)
Up to 130m (430ft)
At full HD (1080p @60Hz 36bpp)
Up to 180m (590ft)
At HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
Note: When using Kramer HDBaseT cables
Standards Compliance
HDBaseT 1.0
VIDEO
Max. Data Rate
10.2Gbps (3.4Gbps per graphic channel)
Max. Resolution
4K@60Hz (4:2:0) 24bpp resolution
Standards Compliance
HDMI 2.0 and HDCP 2.2
EXTENDED ETHERNET
Up to 100Mbps extended line rate bandwidth
EXTENDED RS-232
300 to 115200 baud rate
EXTENDED BIDIRECTIONAL IR
20kHz to 100kHz frequency
USER INTERFACE
Indicators
IN, OUT, LINK, PoE FEEDER and ON LED indicators
Controls
DIP-switches
POWER
Source
48V DC, 1.36A
PoE
Acceptor and Provider
Consumption
370mA
Consumption with PoE
13Watt
ENCLOSURE
Size
DigiTOOLS
Material
Aluminum
Cooling
Convection ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature
0Ā° to 40Ā°C (32Ā° to 104Ā°F)
Storage Temperature
-40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
Humidity
10% to 90%, RHL non-condensing
STANDARDS COMPLIANCE
Safety
CE
Environmental
RoHs, WEEE
ACCESSORIES
Included
Power adapter, bracket set
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.3kg (0.6lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.5lbs) approx.
