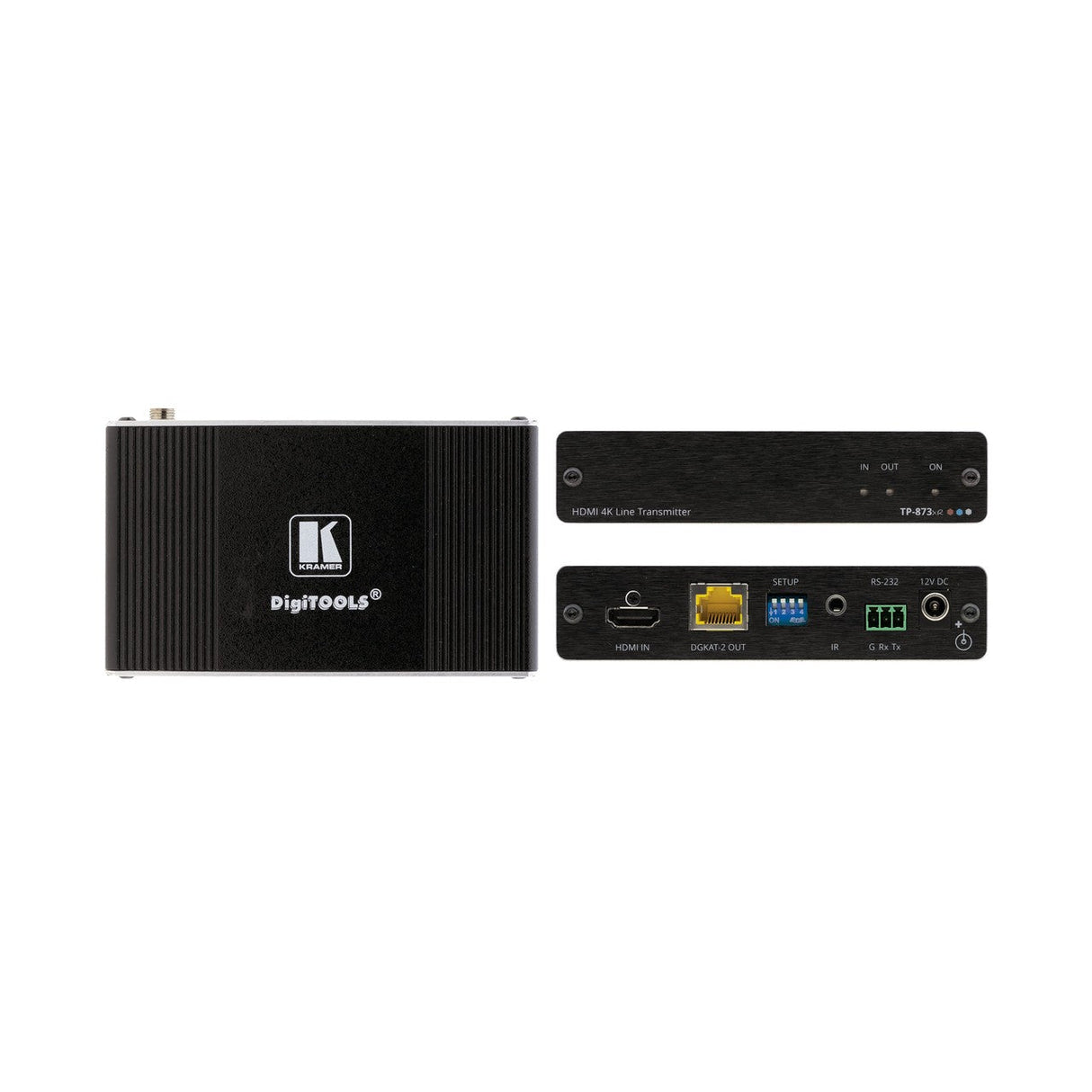

Kramer TP-873XR 4K HDR HDMI Compact PoC Transmitter

TP-873xr is a high-performance, long-reach DGKat 2.0 transmitter for 4K@60Hz (4:4:4) HDR HDMI 2.0 HDCP 2.2 signals, RS-232 and IR signals and 2-way powering over twisted pair. It converts the HDMI input signal into a DGKat 2.0 signal and transmits it to the receiver. TP-873xr extends video signals to up to 50m (160ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.

Key Features

• Compact, low-heat DGKat 2.0 transmitter
• Up to 50m (160ft) at 4K@60Hz (4:4:4)
• Up to 70m (230ft) at 4K@30Hz (4:4:4)
• HDR, HDMI 2.0 & HDCP 2.2 compliance
• Control extension
• Two-way powering

Technical Specifications

INPUTS
1 HDMI
On a female HDMI connector
OUTPUTS
1 DGKAt 2.0
On an RJ-45 female connector
PORTS
1 RS-232
On a 3-pin terminal block connector
1 IR
On a 3.5mm mini jack connector
VIDEO
Transmitted Data Bandwidth
Up to 18Gbps (6Gbps per graphic channel)
Max Resolution at High Compression Level
3840x2160@60Hz (4:4:4) 24bpp
Max Resolution at Standard Compression Level
4096x2160@60Hz (4:4:4) 24bpp
Standards Compliance
HDR10, HDMI 2.0, HDCP 2.2
HIGH COMPRESSION REACH EXTENSION
Using Shielded UNIKAT Cables
Up to 50m (160ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
Using Plenum HDKat Cables
Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
STANDARD COMPRESSION REACH EXTENSION
Using Shielded UNIKAT Cables
Up to 35m (110ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
EXTENSION LINE
Signal Compression
Standard or high compression level applied to >1080p signals
Compliance
DGKat 2.0
USER INTERFACE
Indicators
IN, OUT, and ON LEDs
Controls
Dip-switches to define compression level
POWER
Source
12V DC, 2A
Consumption
(connected to power and providing power to a receiver) 0.87A
ENVIRONMENTAL CONDITIONS
Operating Temperature
0° to +40°C (32° to 104°F)
Storage Temperature
-40° to +70°C (-40° to 158°F)
Humidity
10% to 90%, RHL non-condensing
ENCLOSURE
Size
DigiTOOLS
Type
Aluminum
Cooling
Convection ventilation
ACCESSORIES
Included
1 power adapter with cord, 1 bracket set
REGULATORY
Safety
CE, UL
Environmental
RoHs, WEEE
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.5lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.5lbs) approx.
