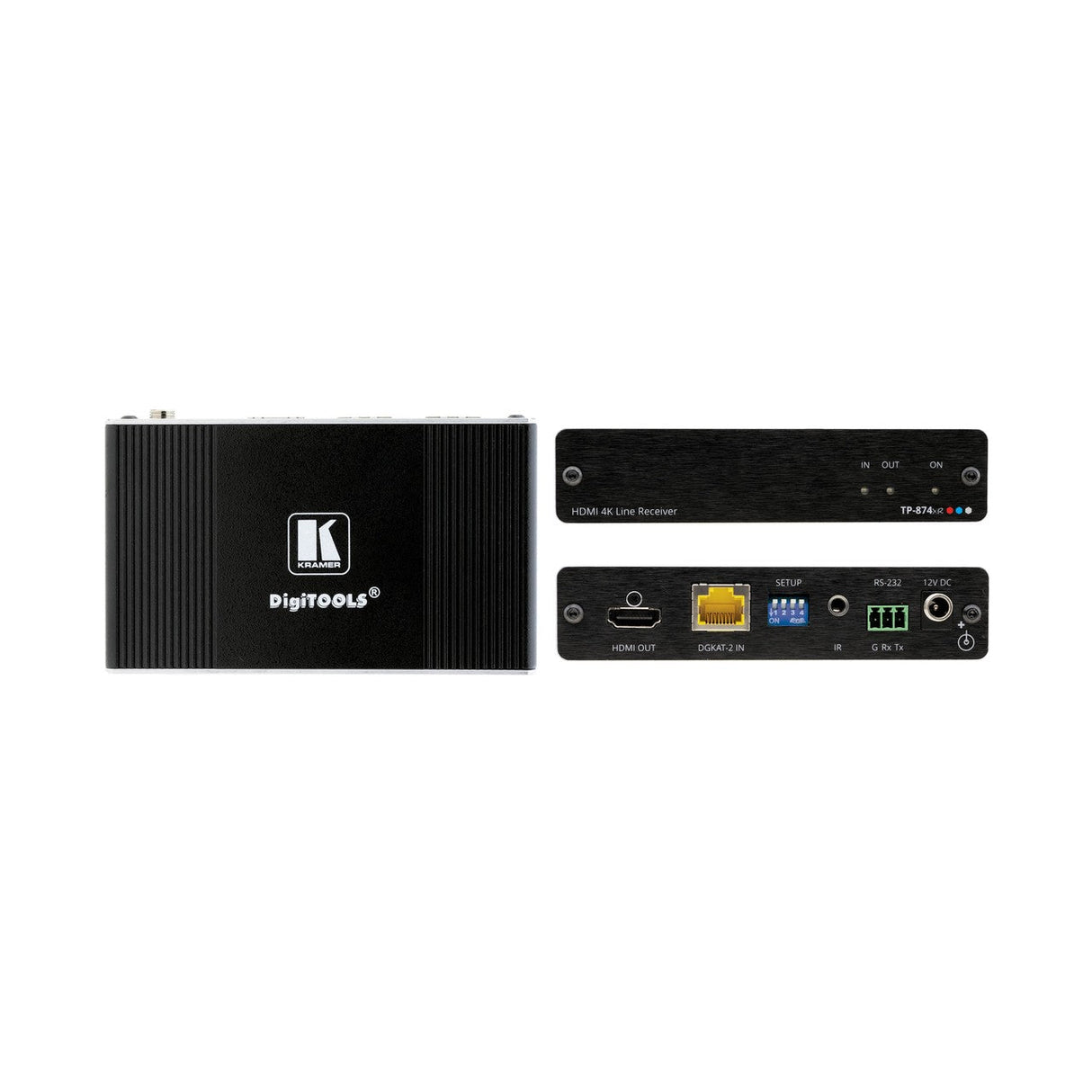

Kramer TP-874XR 4K HDR HDMI Compact Bidirectional-PoC Receiver
TP-874xr is a high-performance, long-reach DGKat 2.0 receiver for 4K@60Hz (4:4:4) HDR HDMI 2.0 HDCP 2.2 signals, RS-232 and IR signals and 2-way powering over twisted pair. It converts the transmitted DGKat 2.0 signal into an HDMI signal. TP-874xr extends the signal to up to 50m (160ft) at 4K@60Hz (4:4:4) resolution and up to 70m (230ft) at 4K@30Hz (4:4:4) 24bpp resolution over Kramer shielded cables.
Key Features
- Compact, low-heat DGKat 2.0 receiver
- Up to 50m (160ft) at 4K@60Hz (4:4:4)
- Up to 70m (230ft) at 4K@30Hz (4:4:4)
- HDR, HDMI 2.0 & HDCP 2.2 compliance
- Control extension
- Two-way powering
Technical Specifications
INPUTS
1 DGKat 2.0
On an RJ-45 female connector
OUTPUTS
1 HDMI
On an HDMI female connector
PORTS
1 RS-232
On a 3-pin terminal block connector
1 IR
On a 3.5mm mini jack connector
VIDEO
Transmitted Data Bandwidth
Up to 18Gbps (6Gbps per graphic channel)
Max Resolution at High Compression Level
3840x2160@60Hz (4:4:4) 24bpp
Max Resolution at Standard Compression Level
4096x2160@60Hz (4:4:4) 24bpp
Standards Compliance
HDR10, HDMI 2.0, HDCP 2.2
HIGH COMPRESSION REACH EXTENSION
Using Shielded UNIKAT Cables
Up to 50m (160ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
Using Plenum HDKat Cables
Up to 40m (130ft) at 4K@60Hz (4:4:4), Up to 50m (160ft) at 4K@60Hz (4:2:0) or full HD (1080p @60Hz 36bpp)
STANDARD COMPRESSION REACH EXTENSION
Using Shielded UNIKAT Cables
Up to 35m (110ft) at 4K@60Hz (4:4:4), Up to 70m (230ft) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
EXTENSION LINE
Signal Compression
Standard or high compression level applied to >1080p signals
Compliance
DGKat 2.0
USER INTERFACE
Indicators
IN, OUT, and ON LEDs
Controls
Dip-switches to define compression level
POWER
Source
12V DC, 2A
Consumption
(connected to power and providing power to a transmitter) 0.87A
ENVIRONMENTAL CONDITIONS
Operating Temperature
0Ā° to +40Ā°C (32Ā° to 104Ā°F)
Storage Temperature
-40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
Humidity
10% to 90%, RHL non-condensing
ENCLOSURE
Size
DigiTOOLS
Type
Aluminum
Cooling
Convection ventilation
ACCESSORIES
Included
1 power adapter with cord, 1 bracket set
REGULATORY
Safety
CE, UL
Environmental
RoHs, WEEE
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.5lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.5lbs) approx.
