Kramer U/FTP Cable for DGKat/HDBaseTLAN Systems
The Kramer BC-UNIKAT is a unified CAT6A cable engineered for superior signal integrity in Pro AV and IT environments. With individually screened twisted pairs, it ensures optimal performance for Ethernet, HDBaseT™, and Kramer DGKat™ applications. Its low-smoke, halogen-free jacket makes it ideal for professional installations requiring high fire safety compliance.
Constructed from 23AWG solid annealed copper and shielded with aluminum/polyester foil per pair, this cable meets or exceeds industry standards including EIA/TIA 568A and ISO/IEC 11801. The outer jacket supports easy handling and is color-coded for quick identification, available in blue, black, and gray.
Key Features
- Structure: 4 shielded twisted pairs (U/FTP)
- Conductor: 23AWG solid annealed copper
- Shielding: Alu/PET foil per pair with tinned copper drain wire
- Outer Jacket: LSHF rated; blue (RAL 5012), black, or gray
- Compliance: UL, RoHS, IEC 60332-1, 61034, 60754
- Fire Class: Dca-s2,d1,a1 (optional: B2ca-s1,d1,a1)
- RJ-45 Compatibility: Requires oversized RJ-45 connectors
- Operating Temp: –20°C to +60°C
- Storage/Install Temp: 0°C to +50°C
- Bend Radius Installed: 50 mm
- Bend Radius During Install: 60 mm
Technical Specifications
- Conductor Size: 0.56 mm ±0.01 mm
- Insulation Diameter: 1.33 mm ±0.10 mm
- Jacket Diameter: 7.2 mm ±0.2 mm
- Impedance: 100Ω ±15Ω (1–100 MHz), ±20Ω (100–250 MHz), ±25Ω (250–500 MHz)
- Propagation Velocity: 76%
- Voltage Rating: 60V
- Delay Skew: <45 ns
- Mutual Capacitance: ≤42 pF/m
- Conductor Resistance: <79.8 Ω/km
- Dielectric Strength: 2.5 kV DC (2s)
- Insulation Resistance: >5000 MΩ/km
Available Variants

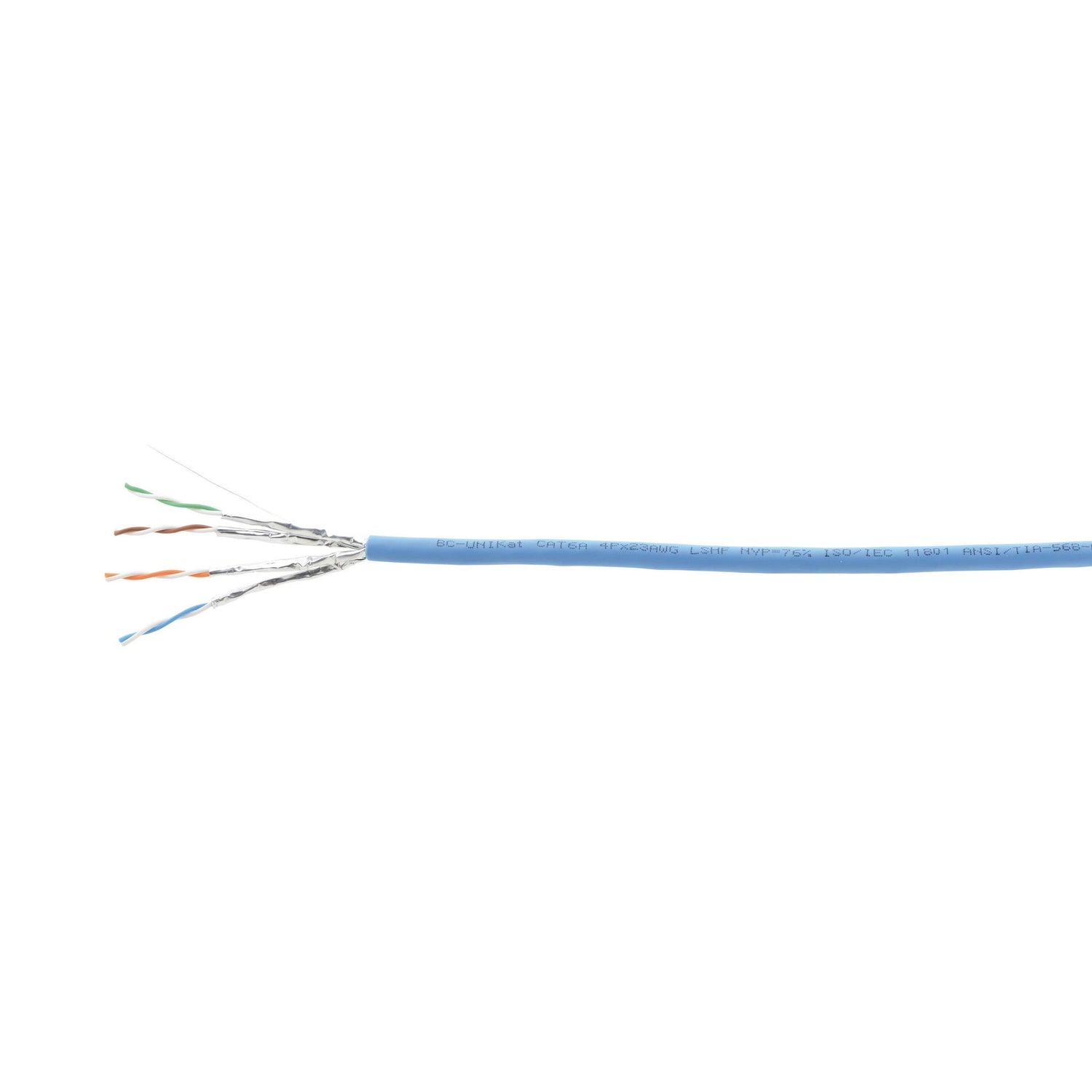

- BC-UNIKAT/LSHF-100M – 100 m (328 ft) reel, blue

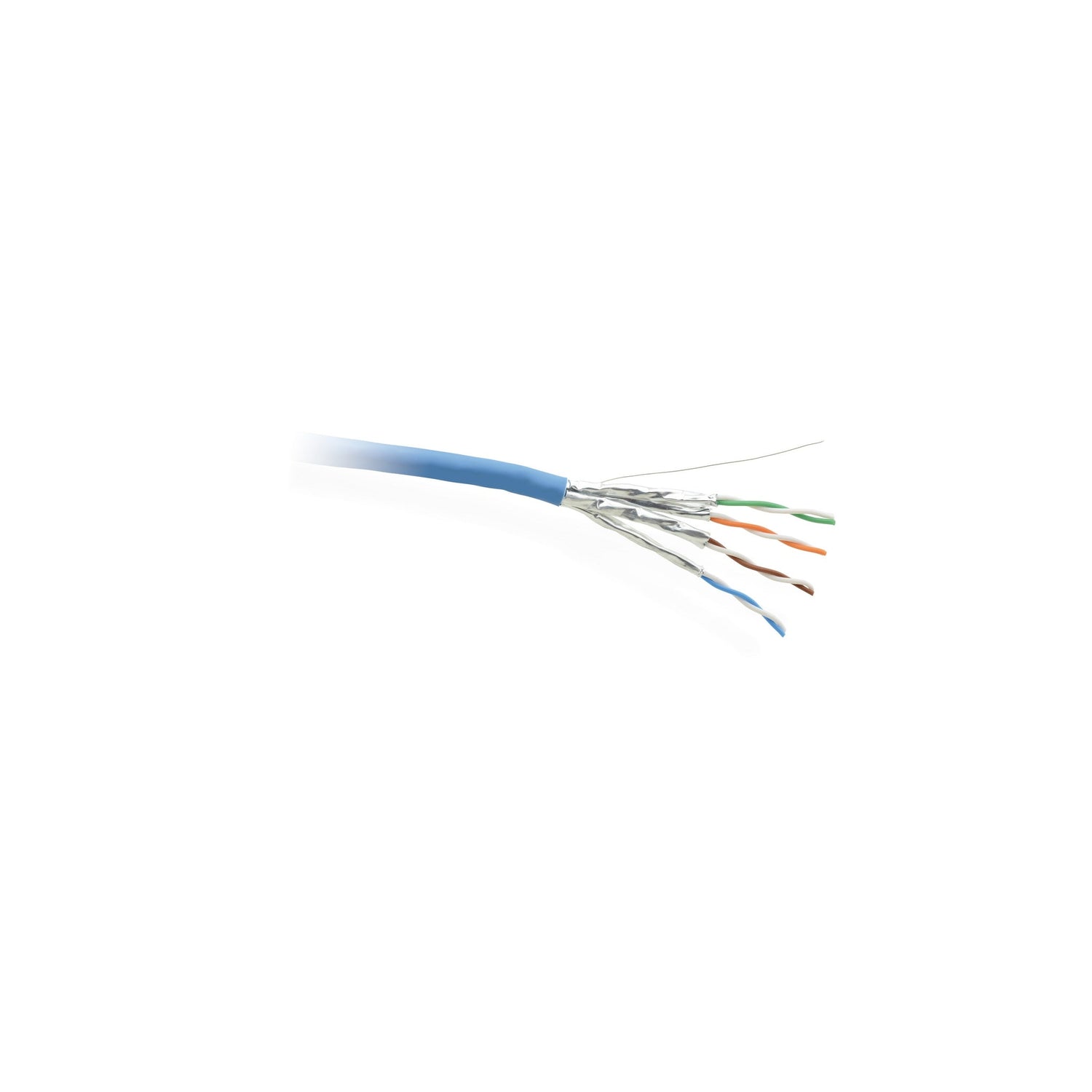

- BC-UNIKAT/LSHF-305M – 305 m (1000 ft) wooden drum, blue
- BC-UNIKAT/LSHF-500M – 500 m (1640 ft) wooden drum, blue

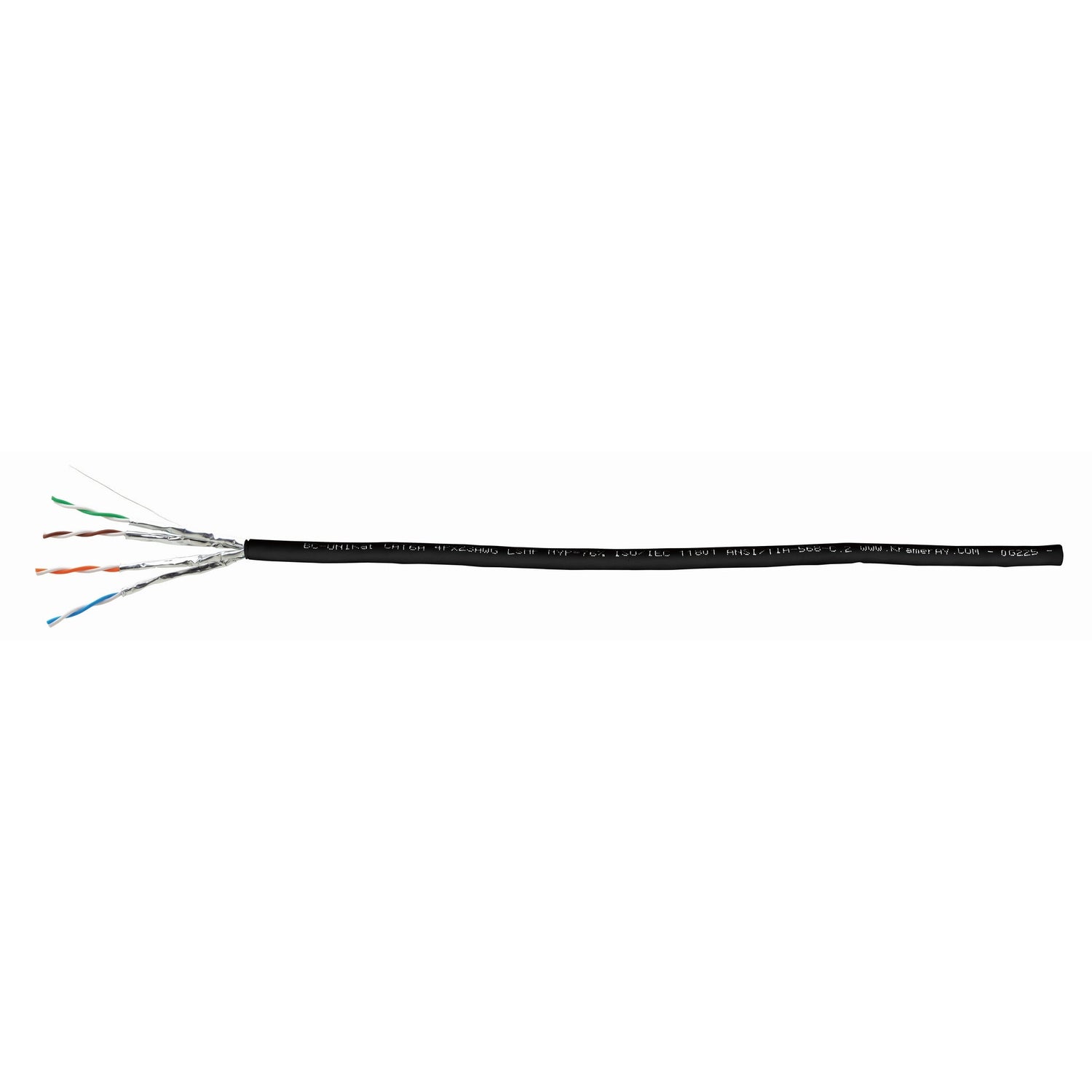

- BC-UNIKAT/LSHF/BK-305M – 305 m (1000 ft) wooden drum, black
What's Included
- One bulk reel of Kramer BC-UNIKAT CAT6A U/FTP cable
