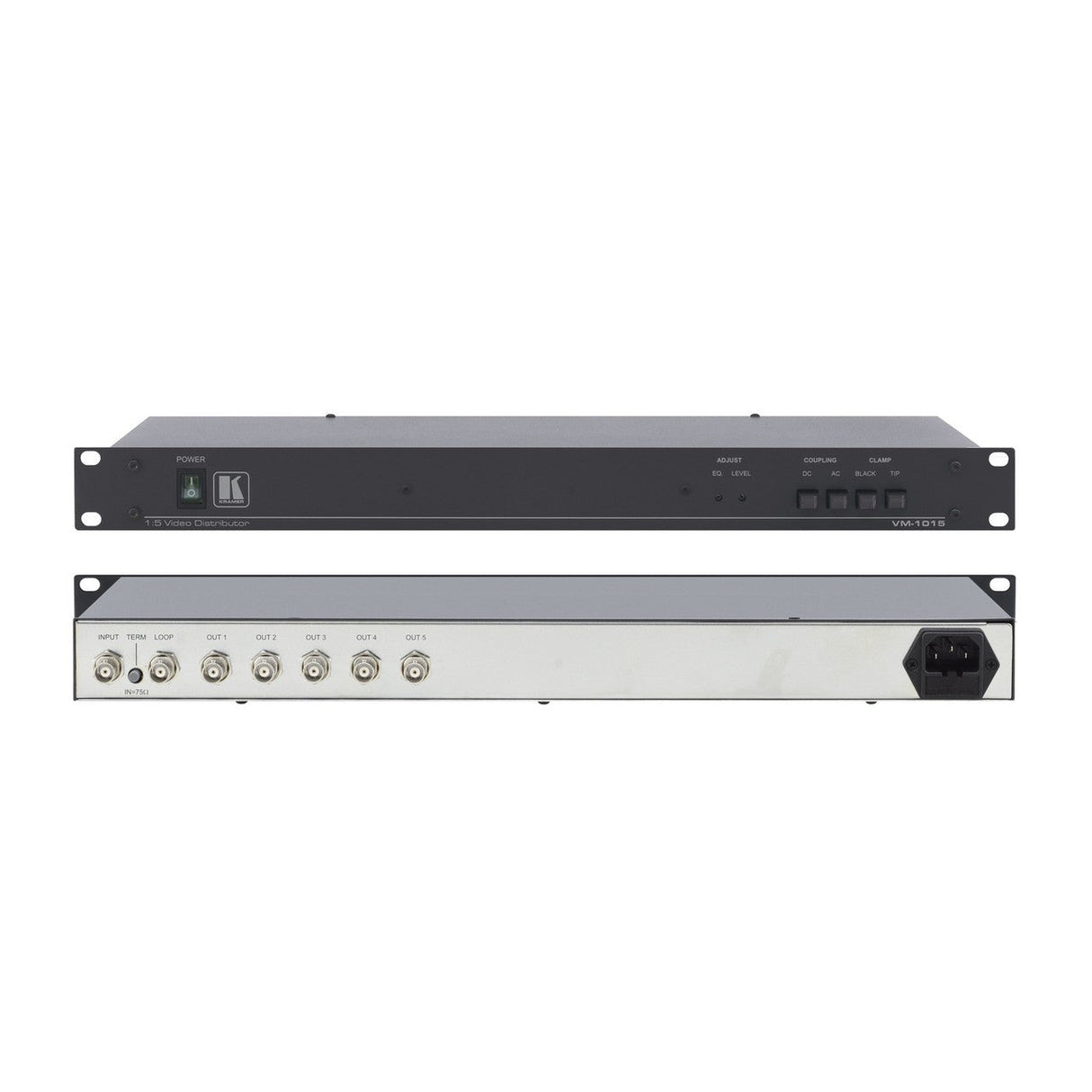

Kramer VM-1015 1:5 Composite SDI Component Video Rackmount Distribution Amplifier
The VM-1015 is a high-performance distribution amplifier for composite, SDI or single component video signals. It provides controls to compensate for signal losses inherent in long cable runs.
Key Features
- High Bandwidth - 340MHz (-3dB)
- Level (Gain) and EQ (Peaking) Controls
- Looping Input
- Selectable Input Signal Termination
- Video AC/DC Coupling Selection
- Clamping - Black or sync tip selectable
- Standard 19ā Rack Mount Size - 1U
Technical Specifications
Input
1 composite/SDI/single component video with loop, 1Vpp/75 ohm on BNC connectors with termination switch
Outputs
5 composite/SDI/single component video, 1Vpp/75 ohm on BNC connectors
Video Bandwidth (-3dB)
340MHz
Diff. Gain
0.08%.
Diff. Phase
0.12Deg
K-Factor
0.05%
Non-Linearity
0.1%
Video S/N Ratio
Better than 75dB
Gain Control
-1.2dB to +2.8dB
EQ. Control
0 to 2.7dB @4.4MHz
Coupling
AC, DC - user selectable with one of four front panel switches
DC Clamp
0V DC black level, or sync tip
Power Consumption
230V AC, 50/60Hz (115V USA), 4.6VA
Dimensions
19" x 7" x 1U W, D, H, rack mountable
Weight
2.5kg (5.5lbs) approx
Included Accessories
Power cord
