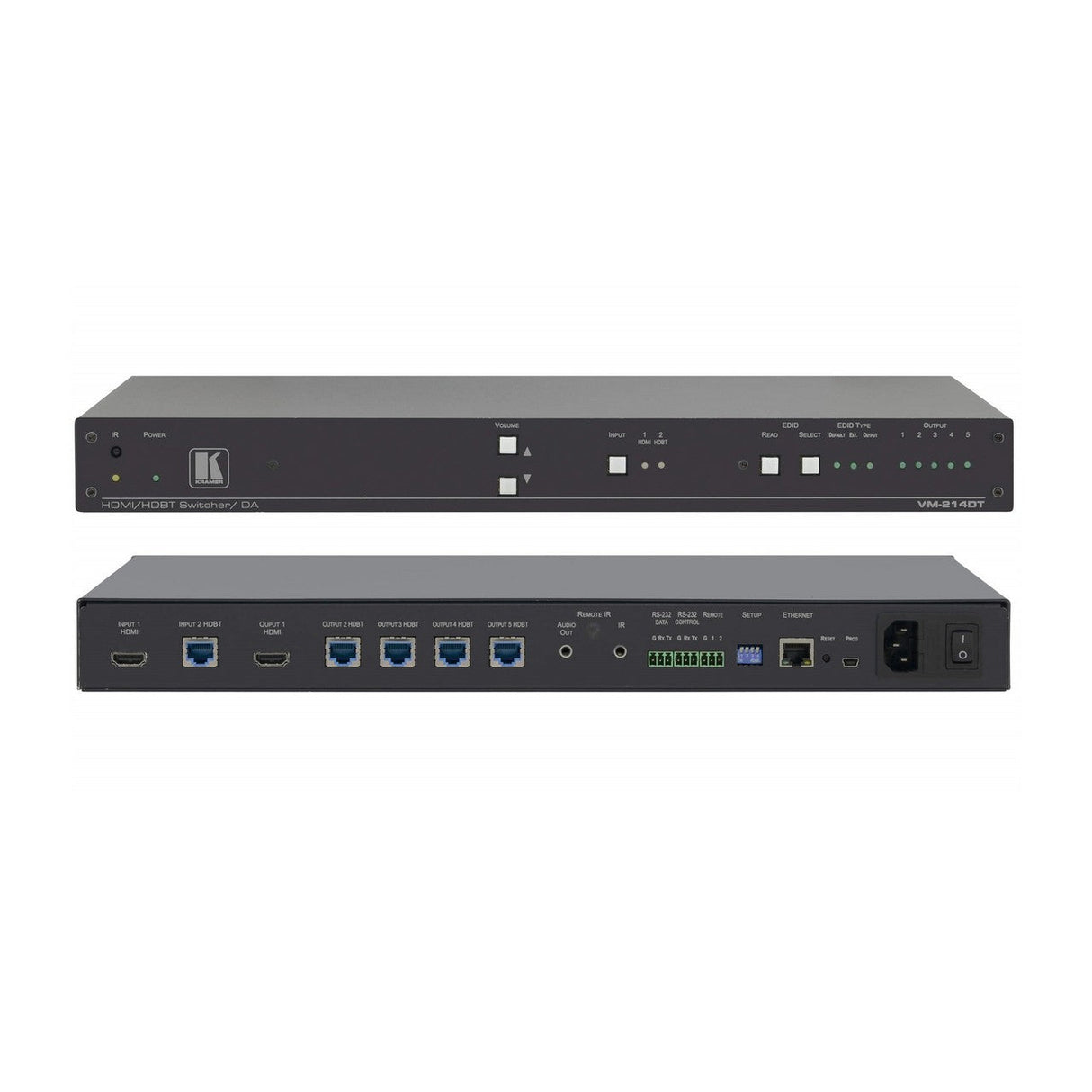

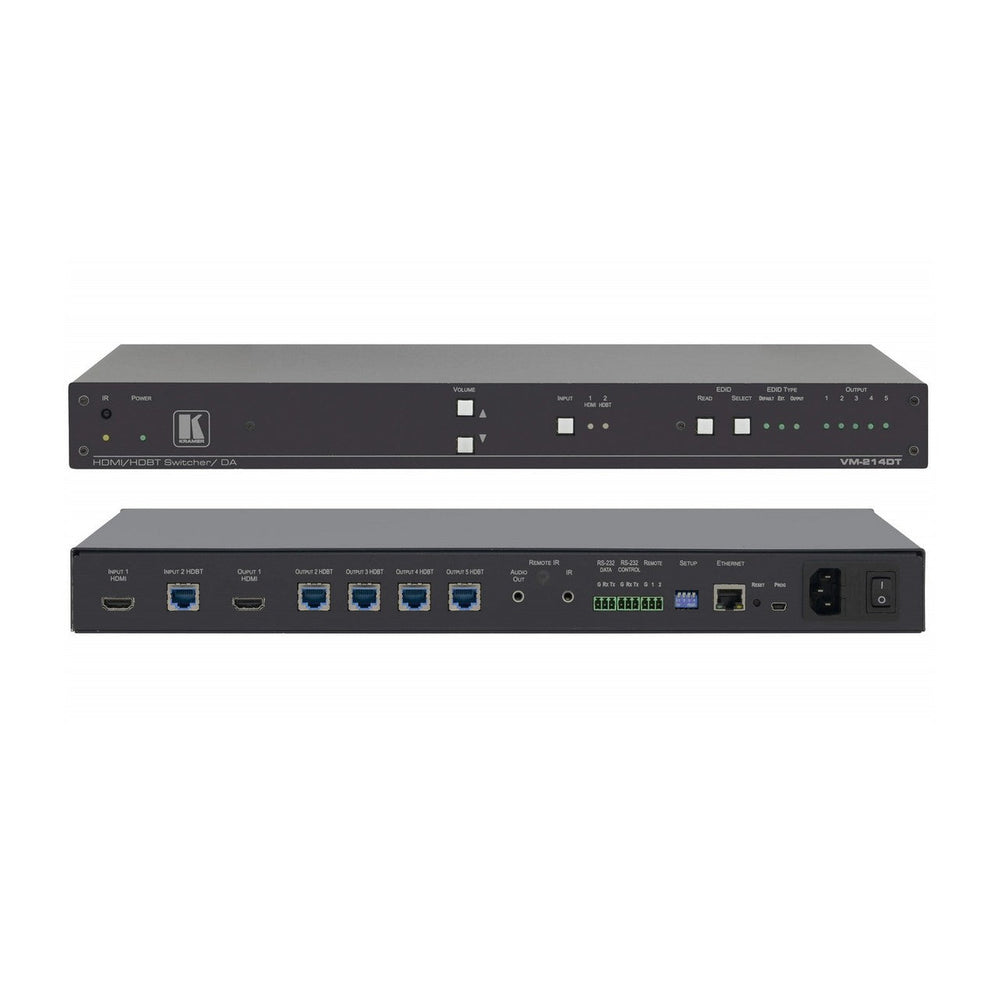

Kramer VM-214DT 2x1:4 4K UHD HDMI HDBaseT Distribution Amplifier
The VM-214DT is a 4K UHD looping distribution amplifier for HDMI & HDBaseT signals. It reclocks and equalizes the signal and distributes it to four identical HDBaseT outputs and a looping HDMI output. It supports resolutions up to 4K@60Hz (4:2:0) UHD. This product offers the versatility of control options and audio de-embedding.
Key Features
- Resolution Support - Up to 4K@60Hz (4:2:0) UHD.
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant - Works with sources that support HDCP repeater mode.
- HDMI Support - Deep Color, x.v.Color and 3D.
- Automatic Live Input Detection - Based on video clock presence.
- Automatic Analog Audio Detection & Deembedding.
- Looping HDMI Output - Allow monitoring and cascading to additional DAs.
- IEDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
- System Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BCHDKat6a cables.
Technical Specifications
INPUTS
1 HDMI connector, 1 HDBT twisted pair on an RJ-45 connector
OUTPUTS
1 HDMI connector, 4 HDBT twisted pair on RJ-45 connectors
MAX.DATA RATE
10.2Gbps (3.4Gbps per graphic channel, HDMI)
COMPLIANCE WITH HDMI STANDARDS
Supports HDMI and HDCP
CONTROLS
Input select button, EDID select button, panel lock button, RS-232, local and remote IR controls
INDICATOR LEDS
IR communication, Power, IN 1 HDMI, IN 2 HDBT, OUTPUT 1,2,3,4 and 5, EDID TYPE Default, External, Output
POWER CONSUMPTION
100-240V AC 50/60Hz 16VA
OPERATING TEMPERATURE
0 deg to +40 deg C (32 deg to 104 deg F)
STORAGE TEMPERATURE
-40 deg to +70 deg C (-40 deg to 158 deg F)
HUMIDITY
10% to 90%, RHL noncondensing
COOLING
Forced air, fan
ENCLOSURE TYPE
Aluminum
RACK MOUNT
With included rack āearsā
VIBRATION
ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE
CE
ENVIRONMENTAL REGULATORY COMPLIANCE
Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES
Power cord, rack āearsā
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT
1.6kg (3.4lbs) approx
