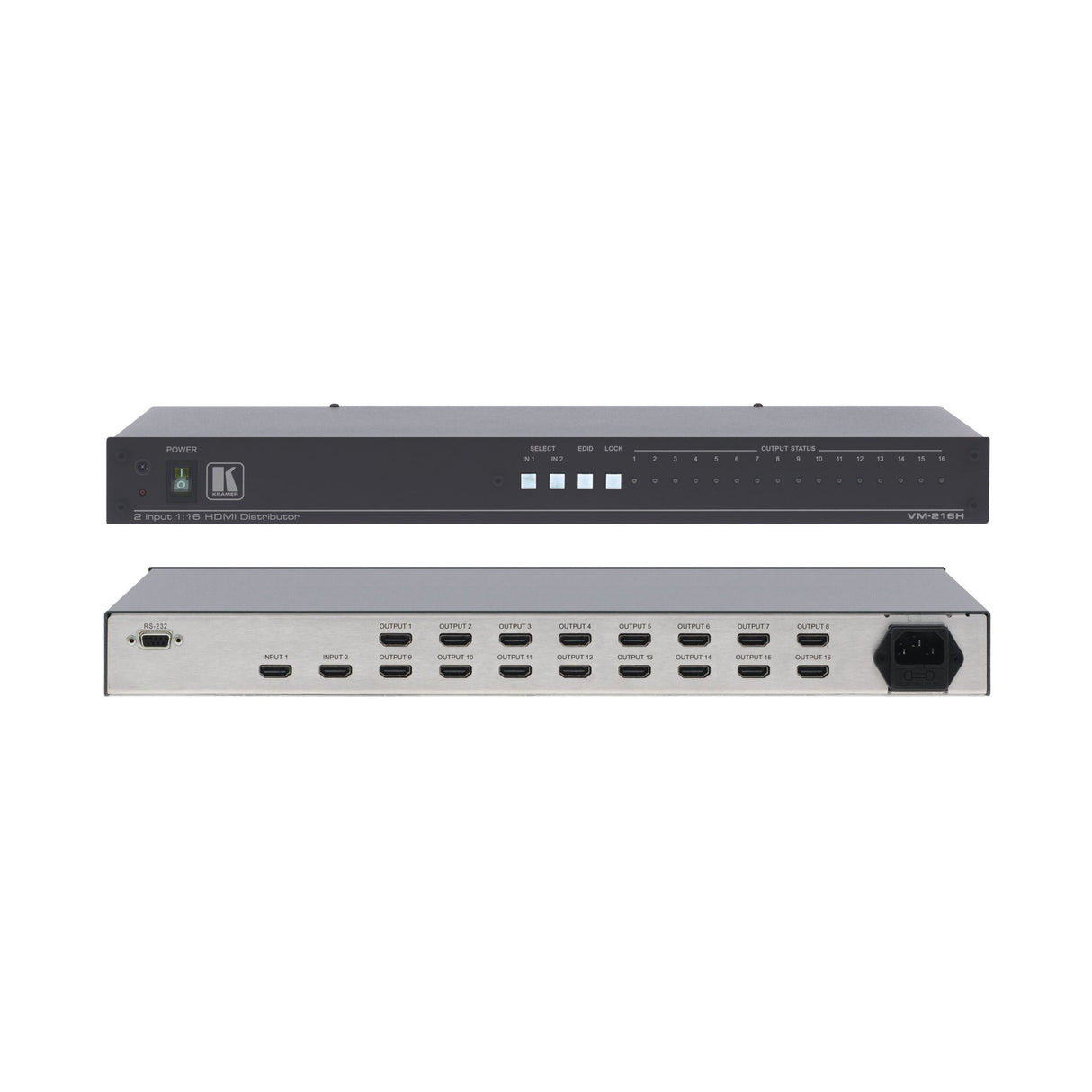

Kramer VM-216H 2x1:16 HDMI Switchable DA
The VM-216H is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 or 16 identical outputs.
Key Features
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC.
- 3D Pass-Through.
- Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances.
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Control - RS-232 & IR.
- Active Output LED Indicators.
- Worldwide Power Supply - 100-240V AC.
- Standard 19” Rack Mount Size - 1U.
Technical Specifications
INPUTS
2 on HDMI connectors
OUTPUTS
16 on HDMI connectors
BANDWIDTH
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
CONTROLS
EDID, IN 1, IN 2, IR remote controller and LOCK buttons
INDICATOR LEDS
Output status LEDs
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
POWER CONSUMPTION
100-240V AC, 50/60Hz, 48VA
INCLUDED ACCESSORIES
Power cord, IR remote control transmitter (upon request)
PRODUCT DIMENSION
19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
