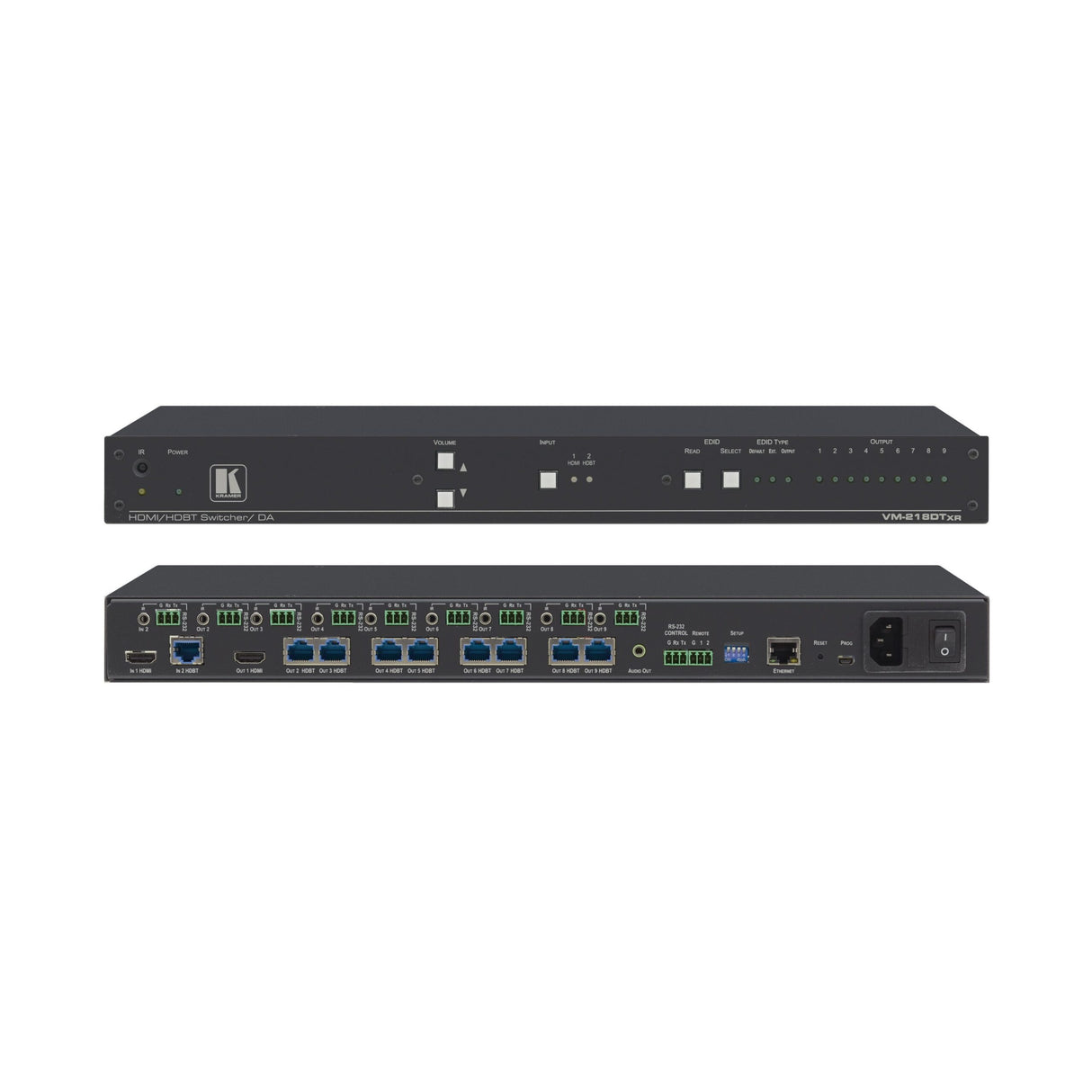

Kramer VM-218DTXR 2x1:8 4K60 4:2:0 HDMI and Extended-Reach HDBaseT with Ethernet, RS-232, IR and Stereo Audio Switchable DA

VM-218DTxr is a high-quality, extended-reach 4K@60Hz (4:2:0) HDBaseT distributor that takes either an HDMI or an extended-reach HDBaseT input (selectable), equalizes and reclocks the signal and distributes it to eight identical extended-reach HDBaseT outputs, each with its own Ethernet and RS-232/IR control signals. The unit also includes a loop HDMI output along with audio de-embedding (extraction) to analog stereo port. As an integrated extender distributor, VM-218DTxr re-extends and distributes native extended-reach HDBaseT signals with up to 4K video resolution.

Key Features

• High Performance Extender Distributor - High-quality professional 1:8 distribution of native extended-reach HDBaseT signals, for deploying mid-way between an AV source and multiple remote displays and gaining extra extended-reach extension. It is coupled with both sides, input and output, extension of a maximum 4K@60Hz (4:2:0) 24bpp video resolution signal to maximum 100m (330ft) extended-reach over CAT copper cable, and even further reach for lower HD video resolution. The extender distributor is standard and capable of being connected to any market-available HDBaseT compliant extending product.
• Cables - For optimum range and performance, use recommended Kramer cables.
• HDMI Signal Extension - HDCP 1.4 compliant signal, supporting deep color, x.v.Color, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID signals are passed through from the source to the display.
• I-EDIDPro Kramer Intelligent EDID Processing - An intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
• Looping HDMI Output - Enables monitoring and cascading to additional DAs.
• Ethernet Extension - Ethernet interface data flows in both directions on each extension line, enabling extension of up to 100Mbps Ethernet connectivity for LAN communication and control of devices.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, on each extension line, enabling data transmission and control of devices.
• Bidirectional Infrared Extension - IR interface data flows in both directions, on each extension line, enabling remote control of peripheral devices located at either end of the extended line.
• Audio De-embedding (Extraction) - The transmitted digital audio signal is converted to an analog signal and de-embedded to stereo unbalanced analog audio output. This enables user-selectable de-embedding of input digital audio to play at local hi-quality speakers separate from a remote receiver-connected AV sink device, such as a TV display or audio speakers, to provide higher quality audio playback.
• Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports to facilitate easy local maintenance and troubleshooting. Remote IP device management via built-in web pages or RS-232 control connection. Local and remote firmware upgrade via mini-USB, control RS-232 or Ethernet connection and the K-Upload tool to ensure long field-proven deployment.
• Easy Installation - Twisted-pair cables for HDBaseT signals wiring. Rack mountable enclosure for mounting in a 1U rack space with included rack ears.

Technical Specifications

INPUTS
1 HDMI: On a female HDMI connector
1 HDBT: On an RJ-45 female connector
OUTPUTS
1 HDMI: On a female HDMI connector
8 HDBaseT: On RJ-45 female connectors
1 Stereo Analog Audio: On a 3.5mm mini jack
PORTS
1 Ethernet: On an RJ-45 female connector
8 IR: On 3.5mm mini jacks
8 RS-232: On 3-pin terminal blocks
VIDEO
Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
Max. Resolution: 4K@60Hz (4:2:0) 24bpp
Standards Compliance: Supports HDCP 1.4 and HDBaseT 1.0
HDMI Support: Deep color, x.v.Color, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
EXTENSION LINE
Range Extension (Input or Output Each Side): Up to 100m (330ft) at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp), Note: When using Kramer HDBaseT cables
USER INTERFACE
CONTROLS: Input select, volume, and EDID read/select buttons. RS-232 device control, Ethernet, and DIP-switches
INDICATOR LEDs: Input select, EDID type, outputs and IR signal LEDs
POWER
Source: 100-240V AC 50/60Hz
Consumption: 800mA
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
ENCLOSURE
Cooling: Forced air, fan
Type: Aluminum
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Vibration: ISTA 1A in carton (International Safe Transit Association)
Safety: CE
Environmental: Complies with appropriate requirements of RoHs and WEEE
ACCESSORIES
Included: Power cord, rack ears
PRODUCT DIMENSION
19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
PRODUCT WEIGHT
2.5kg (5.4lbs) approx.
