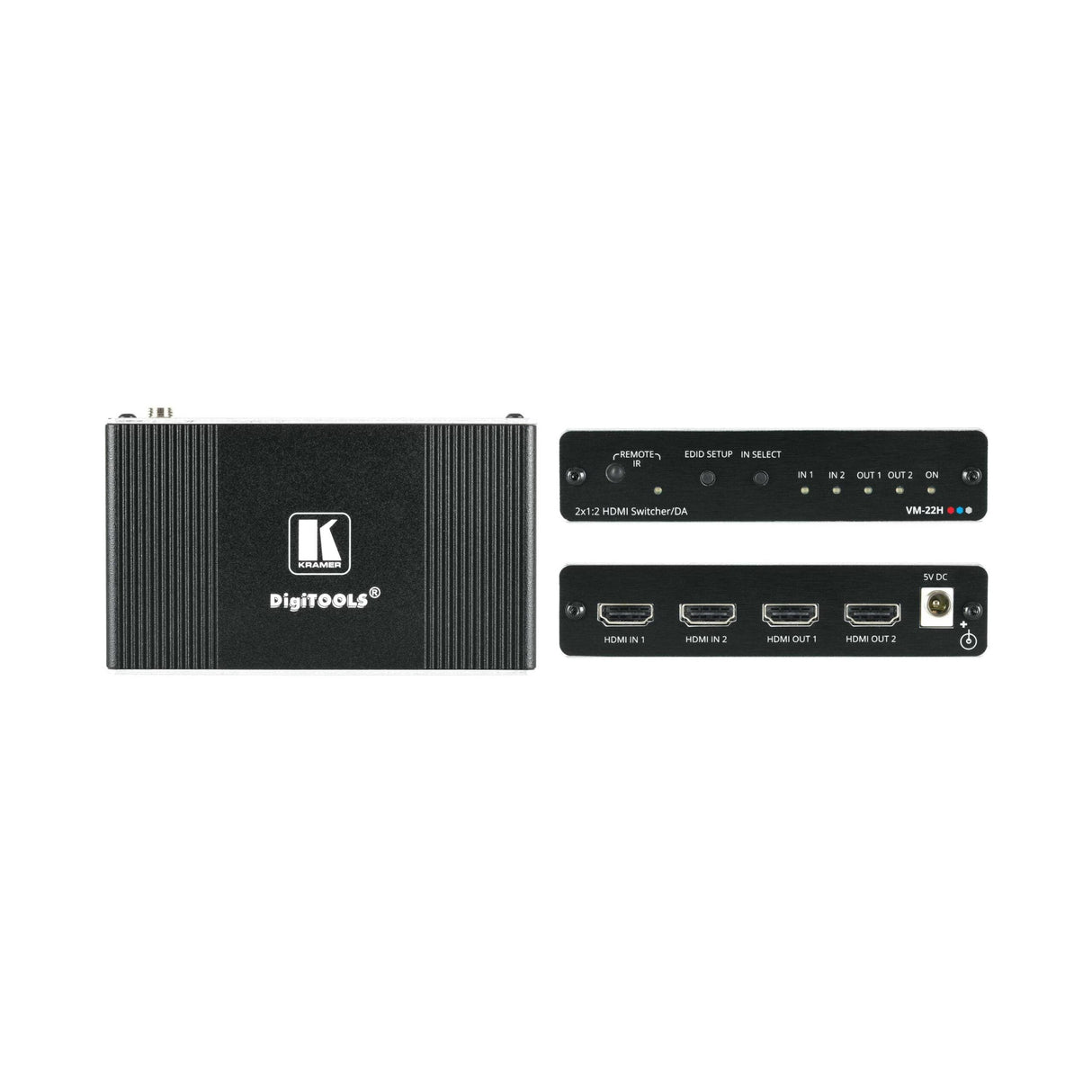

Kramer VM-22H 2x1:2 Compact HDMI Switchable DA
The VM-22H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to two identical outputs.
Key Features
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDCP Compliant.
- HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC.
- 3D Pass-Through.
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Active Output LED Indicators.
- Control - Front panel or IR remote switching.
- Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal integrity to travel longer distances.
- Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
Technical Specifications
INPUTS
2 HDMI connectors
OUTPUTS
2 HDMI connectors
BANDWIDTH
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
CONTROLS
EDID SETUP button, input select button, IR
INDICATOR LEDS
IN 1, IN 2, OUT 1, OUT 2, and ON LEDs
POWER CONSUMPTION
5V DC, 910mA
INCLUDED ACCESSORIES
Power supply, bracket installation kit, IR remote control (upon request)
OPTIONS
HDMI/HDMI male-to-male cables
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.3kg (0.7lbs) approx.
