Kramer VM-24H 2x1:4 HDMI Switchable DA
Kramer VM-24H 2x1:4 HDMI Switchable DA
Free Shipping

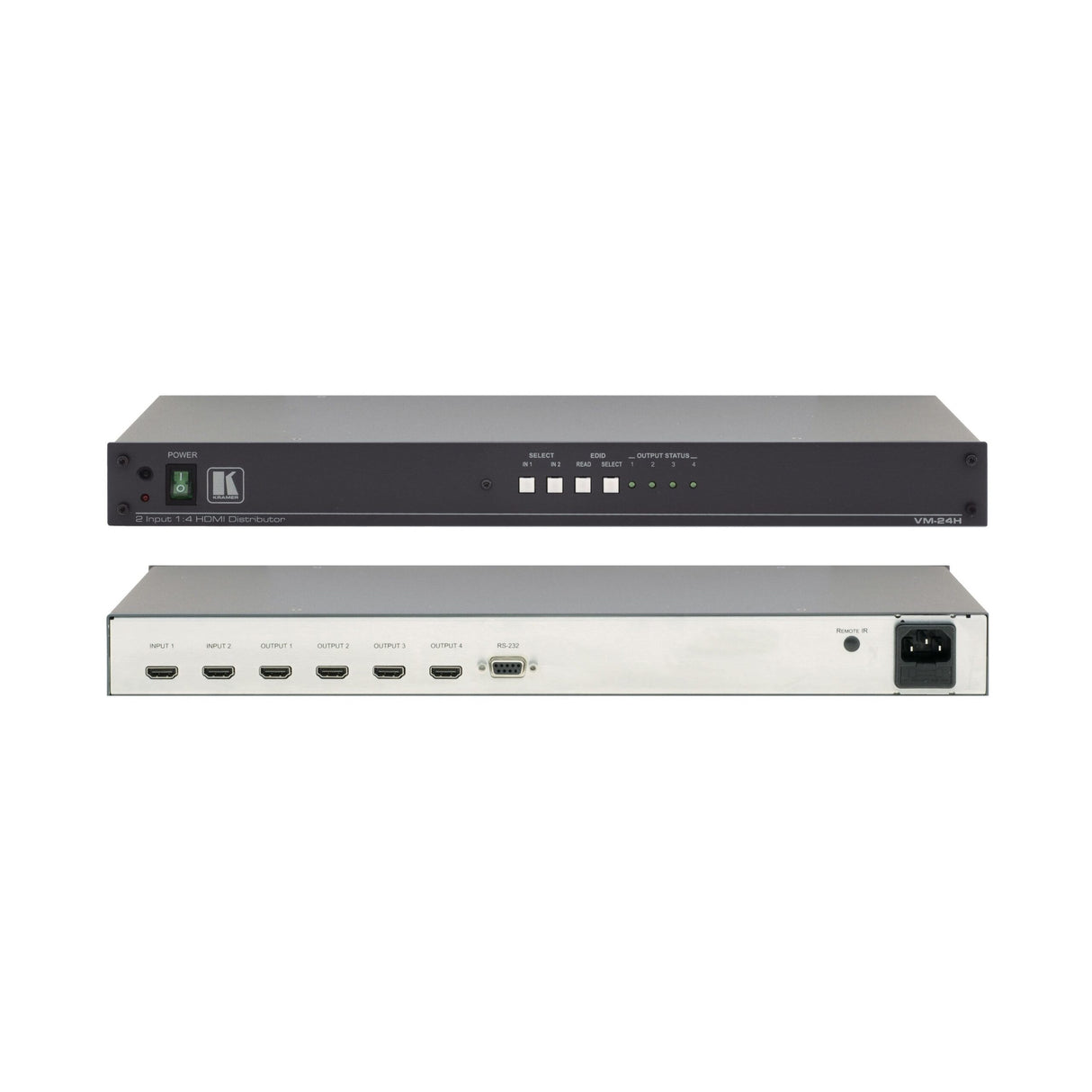

Kramer VM-24H 2x1:4 HDMI Switchable DA
The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of two selectable input signals and distributes it to four identical outputs.
Key Features
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC.
- 3D Pass-Through.
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Active Output LED Indicators.
- Control - Front panel, RS-232, IR switching.
- Worldwide Power Supply - 100-240V AC.
- Standard 19” Rack Mount Size - 1U. Rack “ears” included.
Technical Specifications
INPUTS
2 HDMI connectors
OUTPUTS
4 HDMI connectors
BANDWIDTH
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
CONTROLS
EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS-232, IR
INDICATOR LEDS
Output status LEDs
POWER CONSUMPTION
100-240V AC, 50/60Hz, 16VA
INCLUDED ACCESSORIES
Power cord, null-modem adapter, Windows-based control software, IR remote control (upon request)
OPTIONS
External remote IR receiver cable
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
PRODUCT WEIGHT
1.6kg (3.5lbs) approx.
