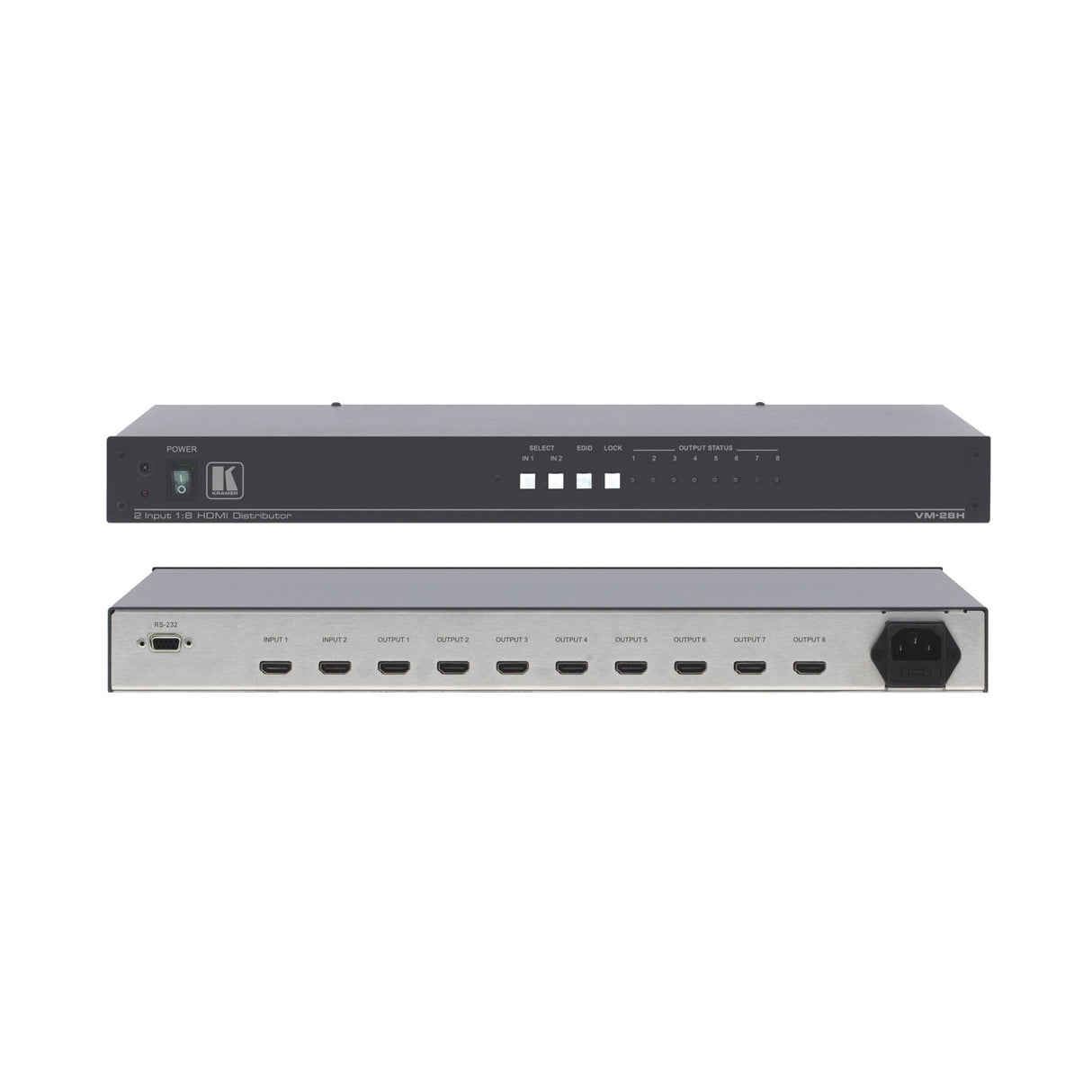

Kramer VM-28H-NV 2 x 1:8 HDMI Switchable DA
Kramer VM-28H-NV 2 x 1:8 HDMI Switchable DA
Free Shipping
Kramer VM-28H-NV 2 x 1:8 HDMI Switchable DA
The VM-28H is a distribution amplifier for HDMI signals. It reclocks and equalizes one of 2 selectable input signals and distributes it to 8 identical outputs.
Key Features
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel)
- HDTV Compatible
- HDCP Compliant
- HDMI Support - Deep Color, x.v.Color, Lip Sync, CEC
- 3D Pass-Through
- EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems
- Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances
- Control - RS-232 & IR
- Active Output LED Indicators
- Worldwide Power Supply - 100-240V AC
- Standard 19ā Rack Mount Size - 1U. Rack "ears" included
Technical Specifications
INPUTS
2 on HDMI connectors
OUTPUTS
8 on HDMI connectors
BANDWIDTH
6.75Gbps (2.25Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
CONTROLS
EDID, IN 1, IN 2, IR remote controller and LOCK buttons
INDICATOR LEDS
Output status LEDs
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
POWER CONSUMPTION
100-240V AC, 50/60Hz 28VA
INCLUDED ACCESSORIES
Power cord, IR remote control transmitter
OPTIONS
External remote IR receiver cable
PRODUCT DIMENSIONS
19" x 7.20 x 1U (43.6cm x 18.30cm x 4.36cm) W, D, H
19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
PRODUCT WEIGHT
1.8kg (4.1lbs) approx.
1.8kg (4.1lbs) approx.
SHIPPING DIMENSIONS
52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT
3.0kg (6.6lbs) approx.
3.0kg (6.6lbs) approx.
