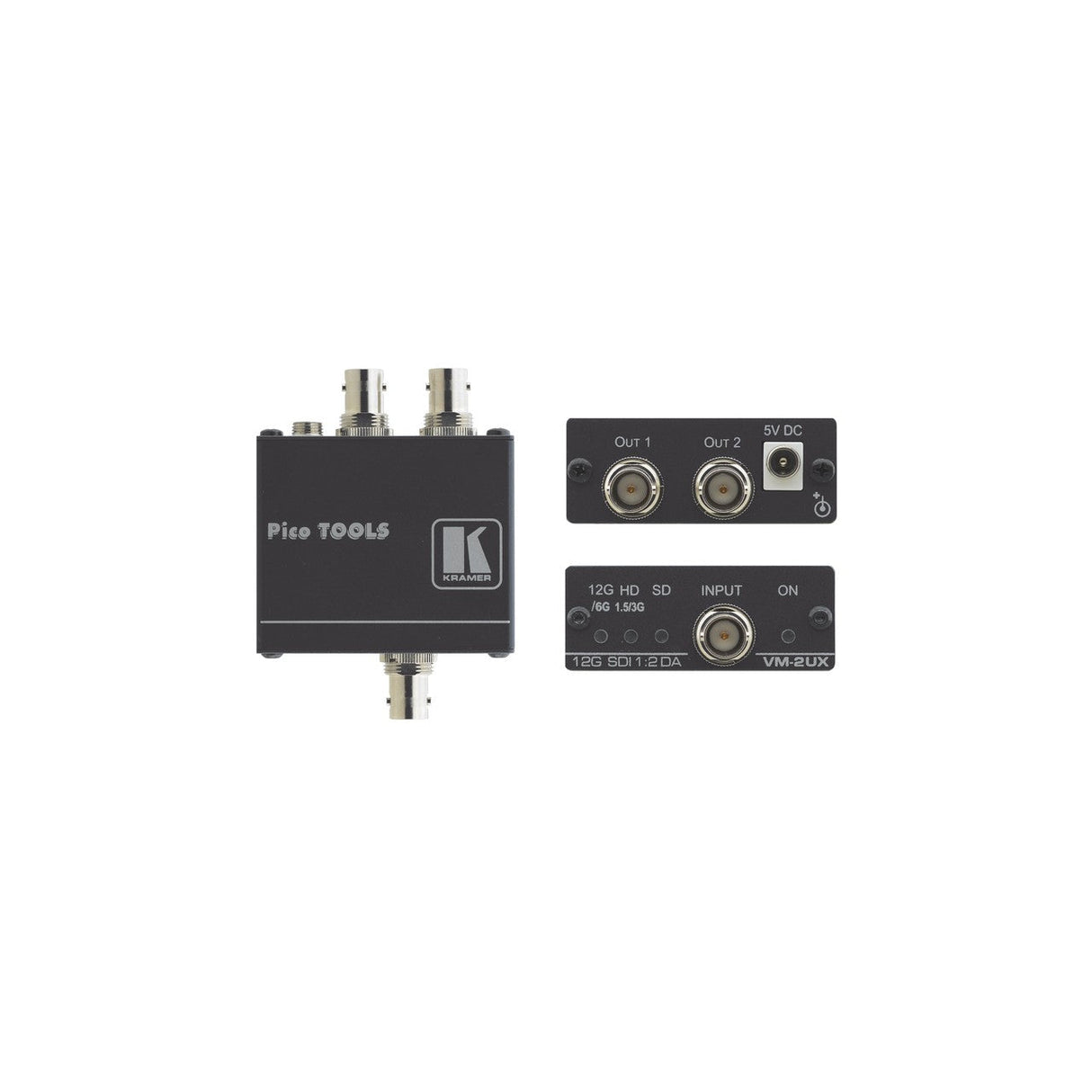

Kramer VM-2UX 1:2 4K 12G SDI Distribution Amplifier
The VM-2UX is a compact and high-performance 1:2 4K distributor for standard broadcast-grade SDI signals of up to 12G transmitted data rate. It auto-adapts to data rate of one SDI input signal, equalizes and re-clocks the signal to improve transmitted signal reach, and distributes the signal to two identical SDI outputs.
Key Features
- 1:2 SDI distributor
- Resolution - Up to 4K (4:2:2) 30bpp
- Data rate - Auto-adapting, up to 12Gbps
- Input Reach - Up to 80m (260ft) at 12Gbps
- Compliance - SMPTE standards
- Lockable connections
Technical Specifications
INPUT
1 SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) compliant serial video input on a 75OHMS BNC connector
OUTPUTS
2 equalized and reclocked SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) outputs on 75OHMS BNC connectors
CABLE EQUALIZATION REACH
12Gbps: Up to 80m (260ft) using Kramer cables, 3Gbps and 6Gbps: Up to 100m (330ft)
1.5Gbps: Up to 200m (660ft), SD: Up to 300m (980ft)
VIDEO
Up to 4K@60Hz (4:2:2) 30bpp resolution, 270Mbps up to12Gbps data rate
MAXIMUM OUTPUT LEVEL
800mVpp/75OHMS
COUPLING
AC
STANDARDS COMPLIANCE
SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI), ST-2082 (12G-SDI)
POWER CONSUMPTION
5V DC, 250mA
POWER SOURCE
5.2V/4A
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
DIMENSIONS
6.2cm x 5.2cm x 2.4cm (2.4" x 2.05" x 0.9") W, D, H
WEIGHT
0.093kg (0.205lbs) approx
SHIPPING DIMENSIONS
15.7cm x 12cm x 8.7cm (6.18ā x 4.7ā x 3.42ā) W, D, H
SHIPPING WEIGHT
0.52kg (1.15lbs) approx
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.5kg (1.1lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.9kg (2.1lbs) approx.
