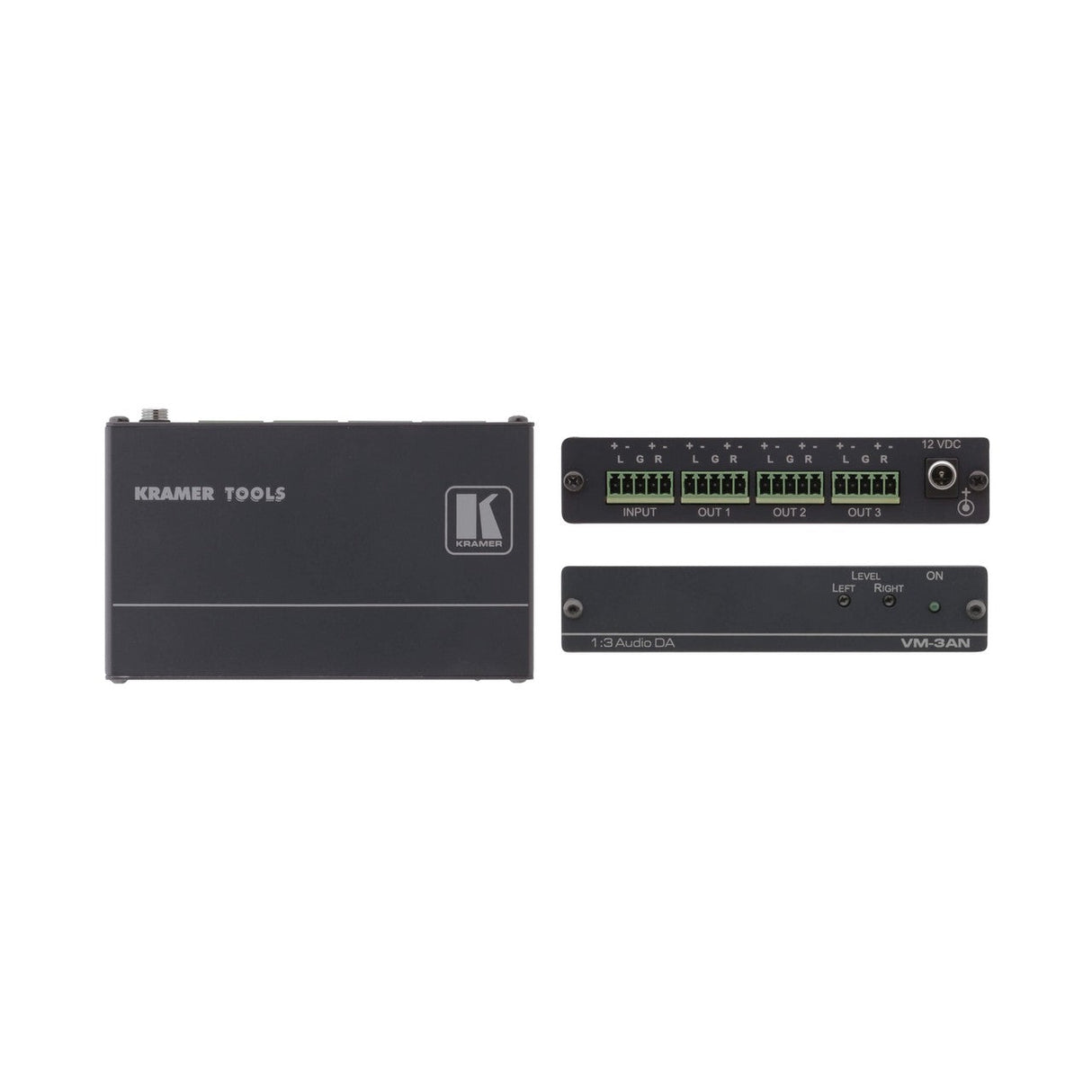

Kramer VM-3AN 1:3 Balanced Stereo Audio Distribution Amplifier
Kramer VM-3AN 1:3 Balanced Stereo Audio Distribution Amplifier
Free Shipping
Kramer VM-3AN 1:3 Balanced Stereo Audio Distribution Amplifier
The VM-3AN is a high-performance distribution amplifier for balanced stereo audio signals. The unit takes one stereo input and distributes the signal to three identical outputs.
Key Features
- S/N Ratio - 90dB
- L & R Level (Gain) Controls
Technical Specifications
INPUT
1 balanced stereo audio on a 5-pin terminal block
OUTPUTS
3 balanced stereo audio on 5-pin terminal blocks
MAX. OUTPUT LEVEL
Audio: 18.5Vpp
BANDWIDTH (-3DB)
>100 kHz
S/N RATIO
90dB @1kHz
CONTROL
Output level control:-77 to +6dB, R+/-, L+/ - channels
AUDIO THD + NOISE
0.008%
AUDIO 2D HARMONIC
0.001%
POWER CONSUMPTION
12V DC, 89mA
INCLUDED ACCESSORIES
Power supply
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSION
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.1lbs) approx.
