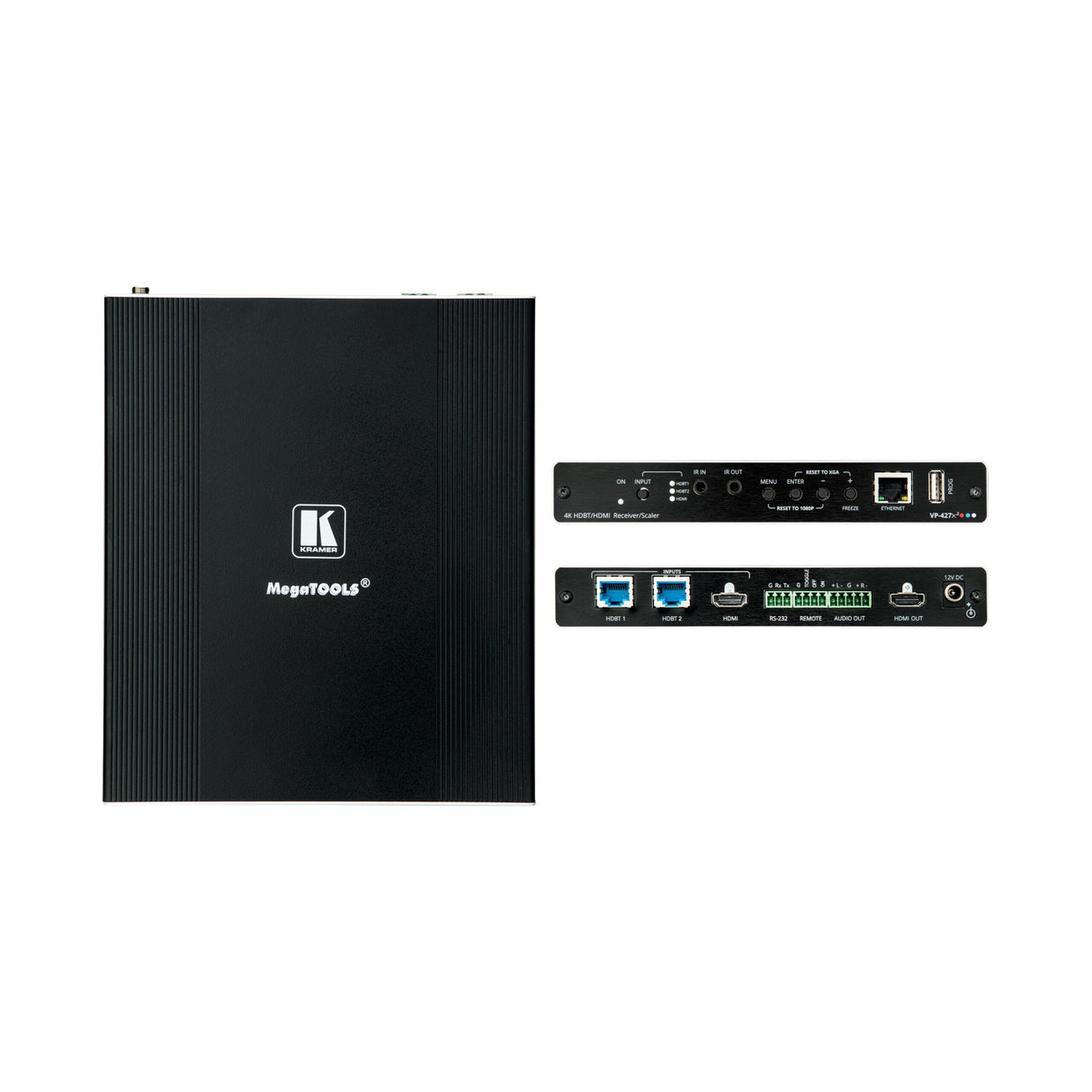

Kramer VP-427X2 4K HDR HDBT Receiver/Scaler Tool with HDBaseT and HDMI Inputs

VP-427X2 is a high-performance auto-switcher/scaler receiver with 2 HDBaseT inputs and a local HDMI input for 4K HDMI over extended-reach HDBaseT. It supports automatic and manual glitch-free switching between the 3 inputs, and up- or down-scaling to any resolution up to 4K@60Hz (4:4:4). The output scaling automatically matches the resolution of the HDMI display on the output, or it can be manually set by the user. VP-427X2 enables extending video signals up to 180m over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

Key Features

• Comprehensive Receiver/Scaler - Scales signals of all standard resolutions up to 4K@60Hz (4:4:4) for routing to the HDMI output
• Constant output sync prevents signal disruption when switching between inputs and when no video is detected.
• HDMI Signal Extension - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
• Audio De-embedding - Analog balanced stereo output for de-embedding the audio to speakers.
• Data Tunneling - Extend RS-232, IR, and Ethernet over the HDBaseT line.
• Built-in Automated Control - Includes easy connection to occupancy sensors and contact closure switches.
• CEC Support - Supports passing of CEC from input to output. Automatically sends CEC commands to shut down the output display after a timeout period when no input signal is found and to power up the display when the input returns.
• Cost-Effective and Convenient Control Options - Ethernet and RS-232 serial ports, and local control via front panel input selection and OSD menu buttons.
• ProcAmp Control - Contrast, brightness, color, etc.
• Convenient Unit Control and Configuration Options - Local control via front panel source switching buttons and OSD menu
• Distance control via RS-232 serial commands transmitted by a PC, touch screen system or other serial controllers.
• Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
• Easy and Elegant Installation - Compact MegaTOOLS fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.

Technical Specifications

INPUTS
2 HDBaseT
On an RJ-45 connector
1 HDMI
On a female HDMI connector
OUTPUTS
1 HDMI
On a female HDMI connector
1 Balanced Analog Stereo Audio: On a 5-pin terminal block
PORTS
1 IR
On a 3.5mm mini jack
1 RS-232
On a 3-pin terminal block
1 Ethernet
On an RJ-45 connector
VIDEO
Output Resolutions
640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz
Max. Range
180m at 1080p@60Hz, 100m (328ft) at 4K@60Hz (4:2:0)
Latency
Up to 2 frames
Content Protection
HDCP 2.2/1.4
Switching Time Between Inputs
<2.5 seconds
USER INTERFACE
Control
Input selection buttons, and remote contact-closure switches switches. Kramer API via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
Indicators
Power, link, input selection LEDs
POWER
Source
12V DC
Consumption
2.1A
ENCLOSURE
Size
MegaTOOLS
Type
Aluminum
Cooling
Convection ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to +40C (32 to 104F)
Storage Temperature
-40 to +70C (-40 to 158F)
Humidity
10% to 90%, RHL non-condensing
ACCESSORIES
Included
Power adapter, rubber feet, mounting bracket
PRODUCT DIMENSIONS
18.75cm x 14.50cm x 2.54cm (7.38” x 5.71” x 1.00” ) W, D, H
PRODUCT WEIGHT
1.1kg (2.4lbs) approx.
SHIPPING DIMENSIONS
35.10cm x 21.20cm x 7.20cm (13.82” x 8.35” x 2.83” ) W, D, H
SHIPPING WEIGHT
1.7kg (3.8lbs) approx.
