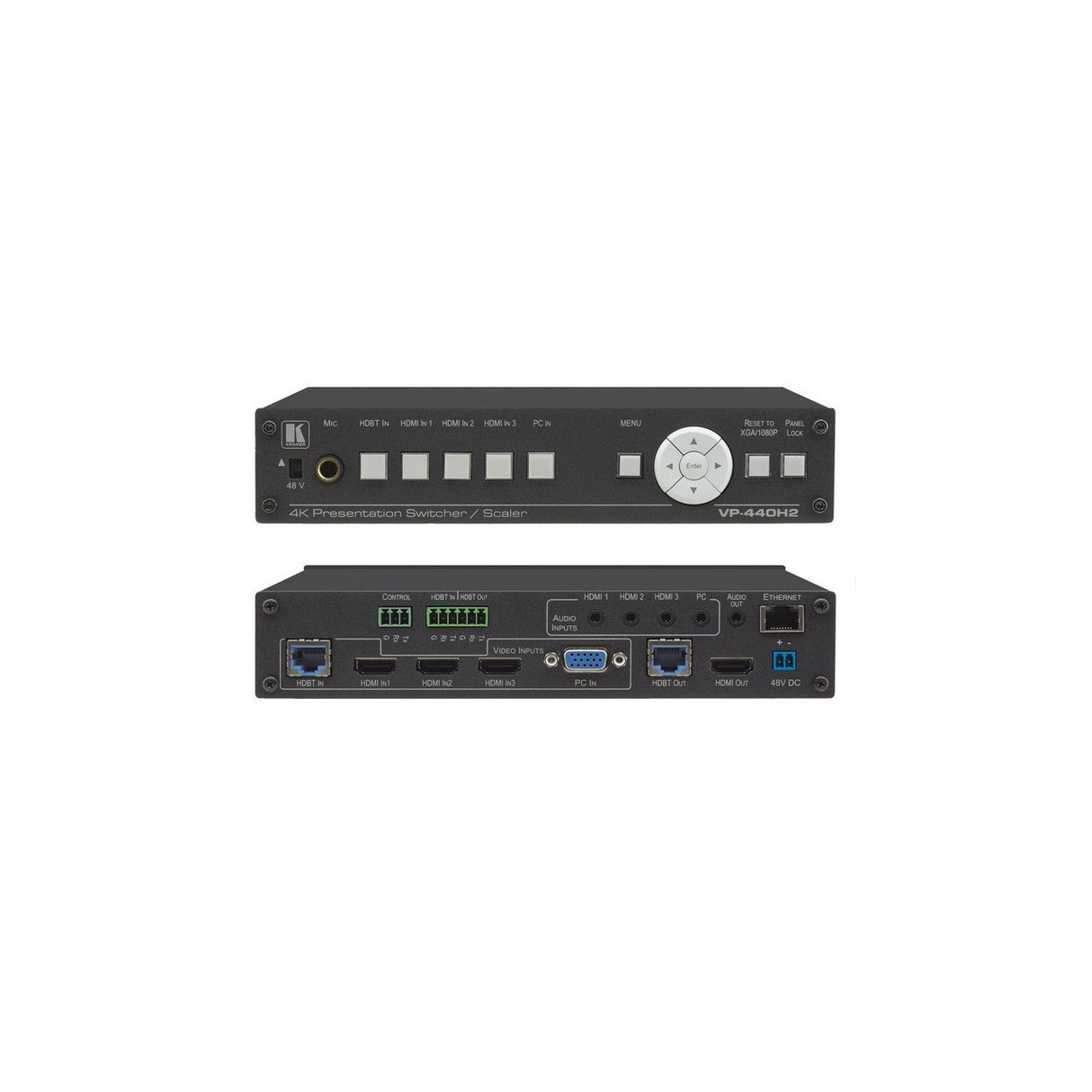

Kramer VP-440H2 Compact 5 Input 4K60 4:4:4 Presentation Switcher/Scaler
VP-440H2 is a high-performance 4K@60Hz (4:4:4) presentation scaler/switcher with one HDBaseT/POE, three HDMI and one computer graphics (VGA) inputs. The unit scales the video, embeds the audio and outputs the signal to an HDMI and an HDBaseT output simultaneously. The unit includes analog and embedded audio inputs and outputs.
Key Features
- PixPerfect Scaling Technology - Kramerās precision pixel mapping and highquality scaling technology.
- HDMI 2.0 Compliant.
- HDCP 2.2 Compliant.
- HDBaseT Certified.
- System Range - For the HDBT inputs and outputs, extended reach of up to 100m (330ft) using Kramer recommended cables.
- Provides Power (PoE) on HDBaseT Input to Compatible Devices.
- Max. VGA Resolution - 1920 x 1200 @60Hz.
- Max. Resolutions - 4K@60Hz (4:4:4).
- Multiple Aspect Ratio Selections - Full, best fit, overscan, underscan, letter box and panscan.
- Builtin ProcAmp - Color, hue, sharpness, noise, contrast and brightness.
- Constant Output Sync - No output disruption while switching between inputs when no video is detected.
- Powerful Audio Features - Via DSP technology including audio equalization, mixing, delay, etc.
- Auto Input Switching - Last connected & autoscan, selectable.
- Audio - Unbalanced stereo and embedded audio for HDMI/HDBT with individual input level controls.
- Companion AFV (AudioFollowVideo) - Stereo audio for HDMI and PC inputs, on 3.5mm mini jacks.
- Microphone Input - For mixing, switching or talkover.
- HDBaseT Tunneling - Supports full HDBT tunneling of Ethernet and RS-232 data.
- Front Panel Lockout.
- NonVolatile Memory - Saves final settings.
- Flexible Control Options - Front panel push buttons, RS-232, OSD (onscreen display) menu with front panel navigation buttons, Ethernet with builtin Web pages.
Technical Specifications
INPUTS
3 HDMI connectors (HDMI 2.0, HDCP 2.2), 1 VGA on a 15pin HD connector, 1 HDBT on an RJ-45 connector
4 unbalanced stereo audio on 3.5mm mini jack connectors
1 microphone on a 6.3mm jack connector (with selectable 48V phantom power)
OUTPUTS
1 HDMI connector (HDMI 2.0, HDCP 2.2)
1 HDBT on an RJ-45 connector
1 unbalanced stereo audio on a 3.5mm mini jack connector
MAX RESOLUTION
4K@60Hz (4:4:4)
SWITCHING TIME BETWEEN INPUTS
2 to 3 seconds
VIDEO LATENCY
Less than 2 frames
INPUT RESOLUTIONS HDMI/HDBT
480i, 480p, 576i, 576p, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz, 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050@60Hz, 1920x1200RB@60Hz, 4K@24/25/30Hz, 4K(4:2:0)@50/60Hz, 4K(4:4:4)@50/60Hz*
*Note: 4K(4:4:4)@50/60Hz is supported on the HDMI inputs only
INPUT RESOLUTIONS PC
640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x900RB@60Hz, 1680x1050@60Hz, 1920x1200RB@60Hz
OUTPUT RESOLUTIONS
480p, 576p, 720p@50/60Hz, 1080p@24/25/30/50/60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x720@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1080@60Hz, 1920x1200RB@60Hz, 4K@24/25/30Hz, 4K(4:2:0)@50/60Hz, 4K(4:4:4)@50/60Hz*
*Note: When outputting HDMI 4K 4:4:4@50/60Hz , the color sampling on the HDBT output is set to 4:2:0
CONTROLS
Front panel push buttons
RS-232
OSD (onscreen display) menu with front panel navigation buttons
Ethernet with builtin Web pages
POWER CONSUMPTION
48V DC, 850mA
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL noncondensing
INCLUDED ACCESSORIES
Power supply
OPTIONS
RK-1 rack adapter
PRODUCT DIMENSION
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.5kg (3.3lbs) approx
