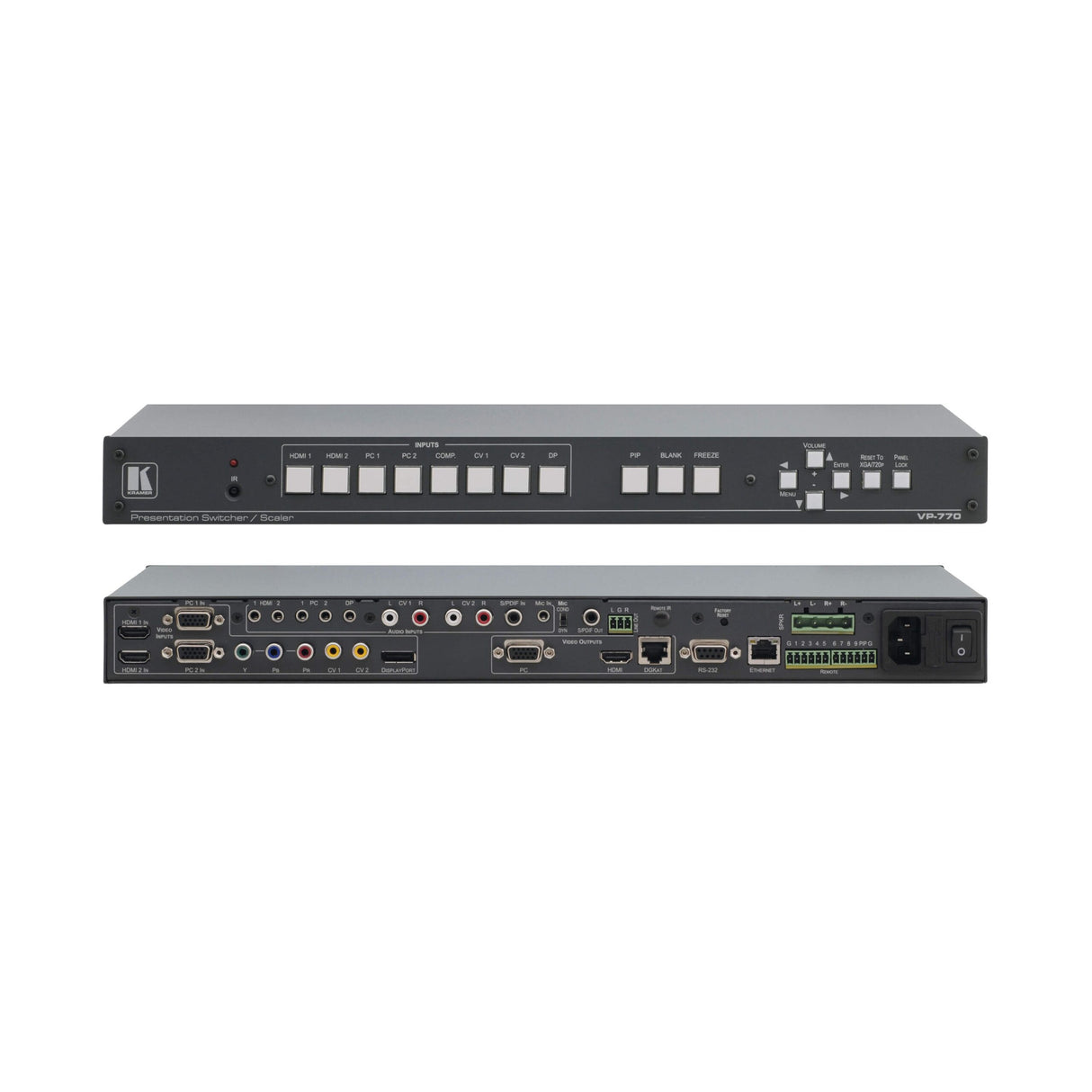

Kramer VP-770 8-Input ProScale Presentation Switcher/Scaler
Kramer VP-770 8-Input ProScale Presentation Switcher/Scaler
Free Shipping
Kramer VP-770 8-Input ProScale Presentation Switcher/Scaler
The VP-770 is a high-performance presentation switcher and scaler for composite video, component video, DisplayPort, computer graphics video, and HDMI signals. It scales the video, embeds the audio and outputs the signal to HDMI, computer graphics and DGKat twisted pair, together with digital audio, unbalanced stereo and a 10-watt amplified balanced stereo speaker output.
Key Features
- PixPerfect Scaling Technology
- Fade-Thru-Black Clean Ultra Fast Switching
- K-IIT XL Picture-in-Picture
- Luma Keying via PiP Window
- Eight Video Inputs, Three Video Outputs
- Multiple Output Resolutions - Up to 2K and 1080p
- 3D Comb Filtering & Powerful Noise Reduction Filters
- HDMI, HDCP & Deep Color Support
- Advanced EDID Management
- Selectable Power Save Modes
- Embeds/de-embeds HDMI Audio with Audio Delay
- Control - RS-232, IR & Ethernet
Technical Specifications
INPUTS
2 HDMI (deep color) connectors,
2 VGA on 15-pin HD connectors,
1 component video on 3 RCA connectors,
2 composite video on RCA connectors,
1 DisplayPort connector,
2 HDMI, 2 VGA, 1 DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors,
1 S/PDIF (for component video input) digital audio on an RCA connector,
1 mic on a 3.5mm mini jack connector
OUTPUTS
1 VGA on a 15-pin HD connector,
1 HDMI (deep color)connector,
1 DGKat on an RJ-45 connector,
1 S/PDIF digital audio on an RCA connector,
1 unbalanced stereo audio on a 3-pin terminal block connector,
12x10W speaker amplifier balanced stereo audio on terminal block connectors
COMPLIANCE WITH HDMI STANDARD
Supports HDMI (deep color) and HDCP, Supports: DisplayPort 1.1a
OUTPUT RESOLUTIONS:640x480@60, 640x480@75, 800x600@50, 800x600@60, 800x600@75, 1024x768@50, 1024x768@60, 1024x768@75, 1280x768@50, 1280x768@60, 1280x800@60, 1280x1024@50, 1280x1024@60, 1280x1024@75, 1360x768p60, 1366x768@50, 1366x768@60, 1400x1050@50, 1400x1050@60, 1600x900@60, 1600x1200@50, 1600x1200@60, 1680x1050@60, 1920x1200@60, 480i60, 480p60, 576i50, 576p50, 720p50, 720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080@60Hz, 2048x1080@50Hz
CONTROLS
Front panel buttons, OSD, IR remote control, RS-232 on a 9-pin D-sub connector, Ethernet, contact closure
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-49 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
POWER SOURCE
100-240V AC, 56VA max
INCLUDED ACCESSORIES
Power cord, rack āearsā, IR remote control
PRODUCT DIMENSIONS
19" x 9.34 x 1U (43.6cm x 23.72cm x 4.36cm) W, D, H
PRODUCT WEIGHT
2.5kg (5.5lbs) approx.
SHIPPING DIMENSIONS
52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT
3.6kg (7.9lbs) approx.
