Kramer VS-1616DN-EM 2 x 2 to 16 x 16 Modular 4K60 4:2:0 Multi-Format Matrix Switcher
Kramer VS-1616DN-EM 2 x 2 to 16 x 16 Modular 4K60 4:2:0 Multi-Forma...
Free Shipping

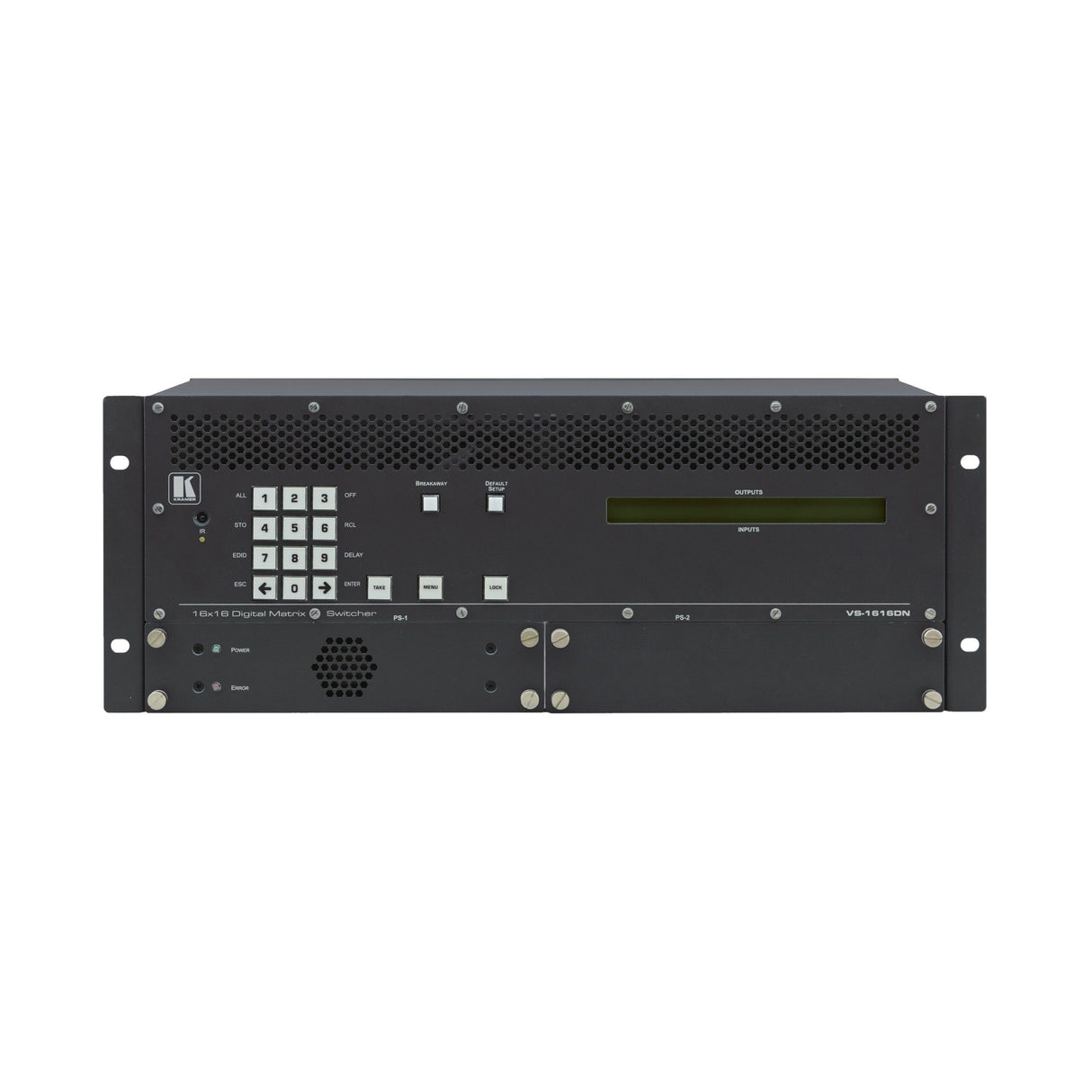

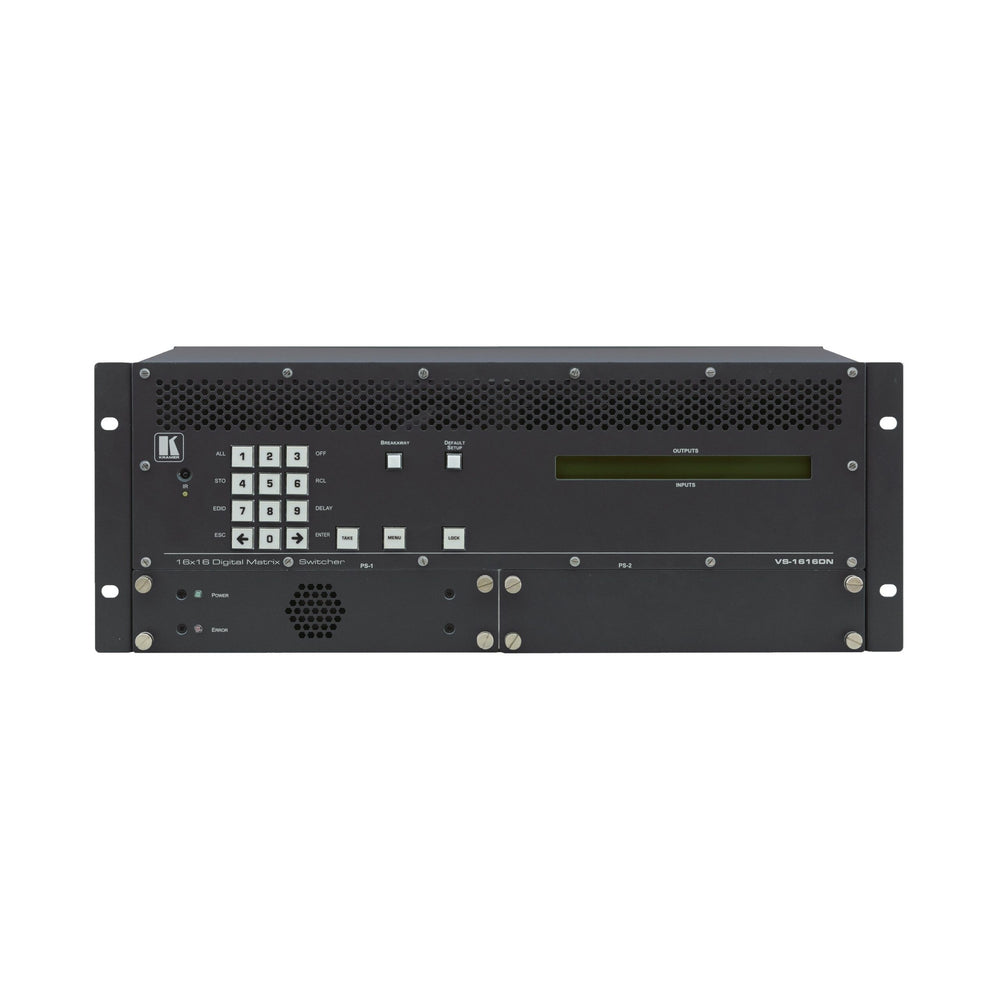

Kramer VS-1616DN-EM 2 x 2 to 16 x 16 Modular 4K60 4:2:0 Multi-Format Matrix Switcher
VS-1616DN-EM is a high-performance 2x2 to 16x16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi-format digital switcher, populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS-1616DN-EM supports a wide variety of input and output cards for different AV signals.
Key Features
- Max. Data Rate - 10.2Gbps (3.4Gbps per graphics channel)
- Mix Input/Output Modules
- Control - RS-232, Ethernet, IR & USB
Technical Specifications
INPUTS
2 to 16 (in increments of 2) of various inputs
OUTPUTS
2 to 16 (in increments of 2) of various outputs
MAX. DATA RATE
10.2Gbps (3.4Gbps per graphic channel) depending on the cards used
MAX RESOLUTION
4K@60Hz (4:2:0)
CONTROLS
Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, mini USB port, in/out audio testing jacks, and reset button (for future use)
SWITCHING
Confirm or At Once for immediate switching
OPERATING TEMPERATURE
0 to +40C (32 to 104F)
STORAGE TEMPERATURE
-40 to +70C (-40 to 158F)
HUMIDITY
10% to 90%, RHL non-condensing
POWER CONSUMPTION
100-240V AC, 50/60Hz, 135VA
INCLUDED ACCESSORIES
Power cord, infrared remote control transmitter
PRODUCT DIMENSIONS
19" x 14.17 x 4U (43.6cm x 36.00cm x 17.70cm) W, D, H
PRODUCT WEIGHT
6.7kg (14.8lbs) approx.
SHIPPING DIMENSIONS
57.00cm x 48.00cm x 28.00cm (22.44" x 18.90" x 11.02" ) W, D, H
SHIPPING WEIGHT
8.0kg (17.7lbs) approx.
