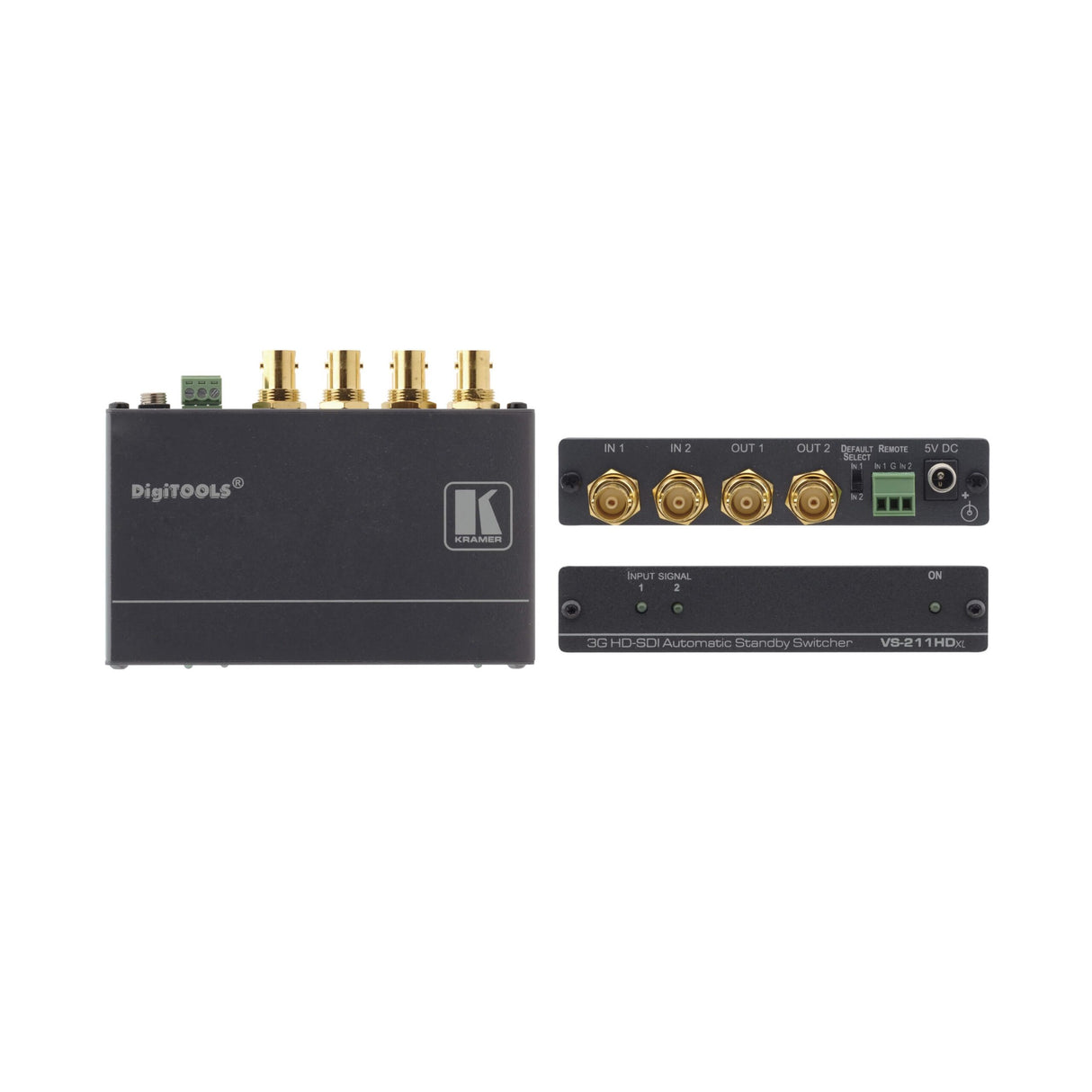

Kramer VS-211HDXL 2x1:2 SDI Auto Switcher
Kramer VS-211HDXL 2x1:2 SDI Auto Switcher
Free Shipping
Kramer VS-211HDXL 2x1:2 SDI Auto Switcher
The VS-211HDxl is a high-performance automatic switcher for 3G HD-SDI video signals. When configured as a standby switcher, It'switches to the secondary input when the primary input is lost.
Key Features
- Max. Data Rate - 3Gbps.
- Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) & 3G HD-SDI (SMPTE 424M).
- HDTV Compatible.
- Control - Contact closure or automatic switching.
- Automatic Standby Switching - Switches from the secondary input to the primary input when a primary signal is detected.
- Primary Input - Selectable.
- Active Input LED Indicators.
- Compact DigiTOOLS - 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
Technical Specifications
INPUTS
2 SD/HD/3G HD-SDI video on BNC connectors
OUTPUTS
2 SD/HD/3G HD-SDI video on BNC connectors
MAX. OUTPUT LEVEL
800mVpp/75 OHM
DATA RATE
Up to 2.97Gbps
CONTROLS
Contact closure remote control, input default selection switch
COUPLING
AC
POWER CONSUMPTION
5V DC, 400mA
INCLUDED ACCESSORIES
Power supply, mounting bracket
PRODUCT DIMENSION
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
