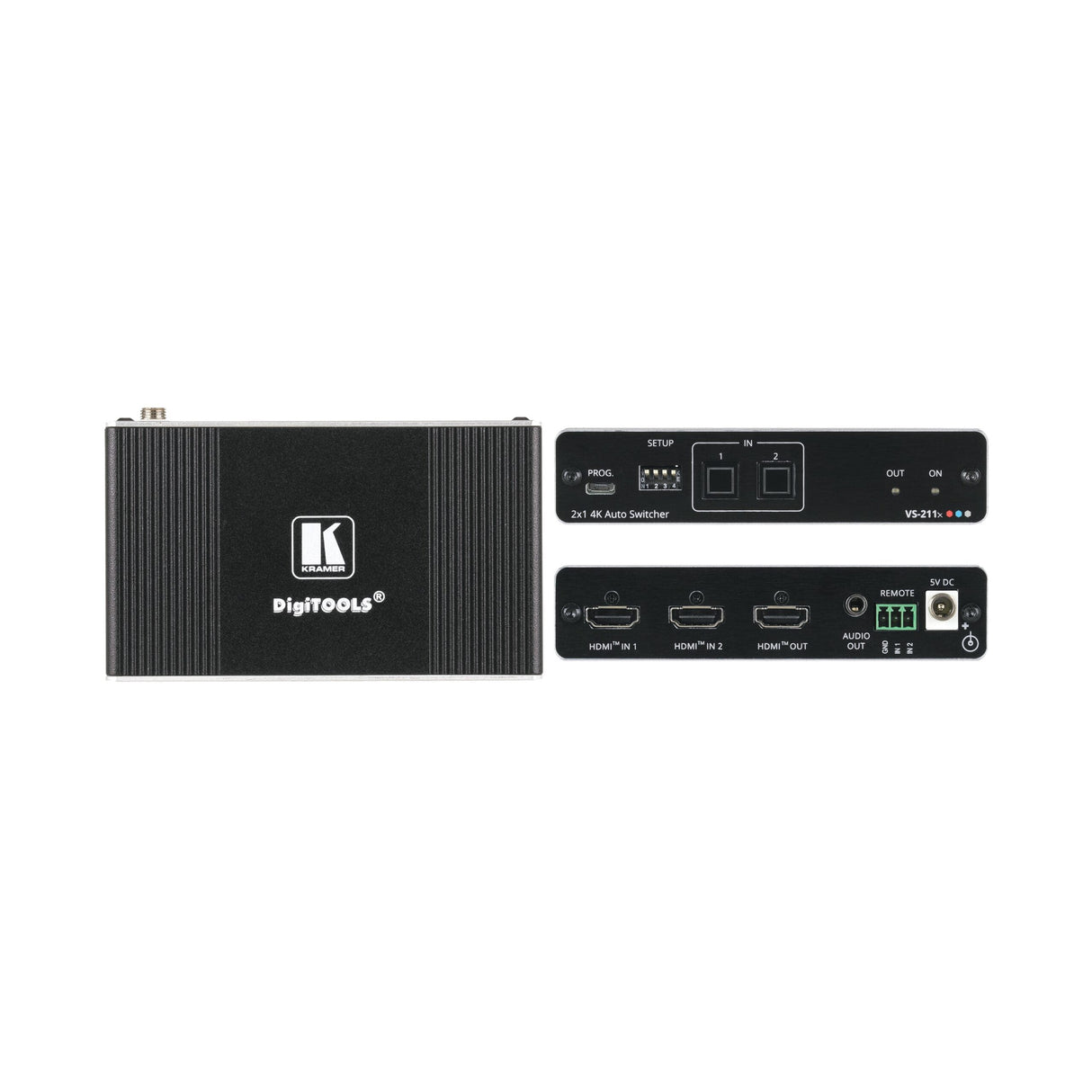

Kramer VS-211X 2 x 1 4K HDR HDMI Auto Switcher

VS-211X is a high-performance 2x1 automatic switcher for 4K HDR, HDMI video signals. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Key Features

• 2x1 Plug and Play Switcher
• Up to 4K@60Hz (4:4:4) Resolution
• De-embedded Audio
• Compact

Technical Specifications

INPUTS
2 HDMI
On a female HDMI connector
OUTPUTS
1 HDMI
On a female HDMI connector
1 Unbalanced Stereo Audio: On a 3.5mm mini jack
PORTS
Remote Contact Closure
On a 3-pin terminal block connector
VIDEO
Max Data Rate
17.82GBPS (5.94Gbps per graphic channel)
Max Resolution
4K@60 (4:4:4)
Compliance
HDR10 as specified in HDMI 2.0, HDCP 2.2
POWER
Source
5V DC, 2A
Consumption
500mA
USER INTERFACE
Controls
Input selection buttons. DIP-switches for configuring switching mode and EDID mode
ENCLOSURE
Size
DigiTOOLS
Type
Aluminum
Cooling
Convection ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to +40C (32 to 104F)
Storage Temperature
-40 to +70C (-40 to 158F)
Humidity
10% to 90%, RHL non-condensing
REGULATORY
Health, Safety, Environmental: RoHs, WEEE, CE
PRODUCT DIMENSIONS
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.5lbs) approx.
SHIPPING DIMENSIONS
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.7kg (1.5lbs) approx.
