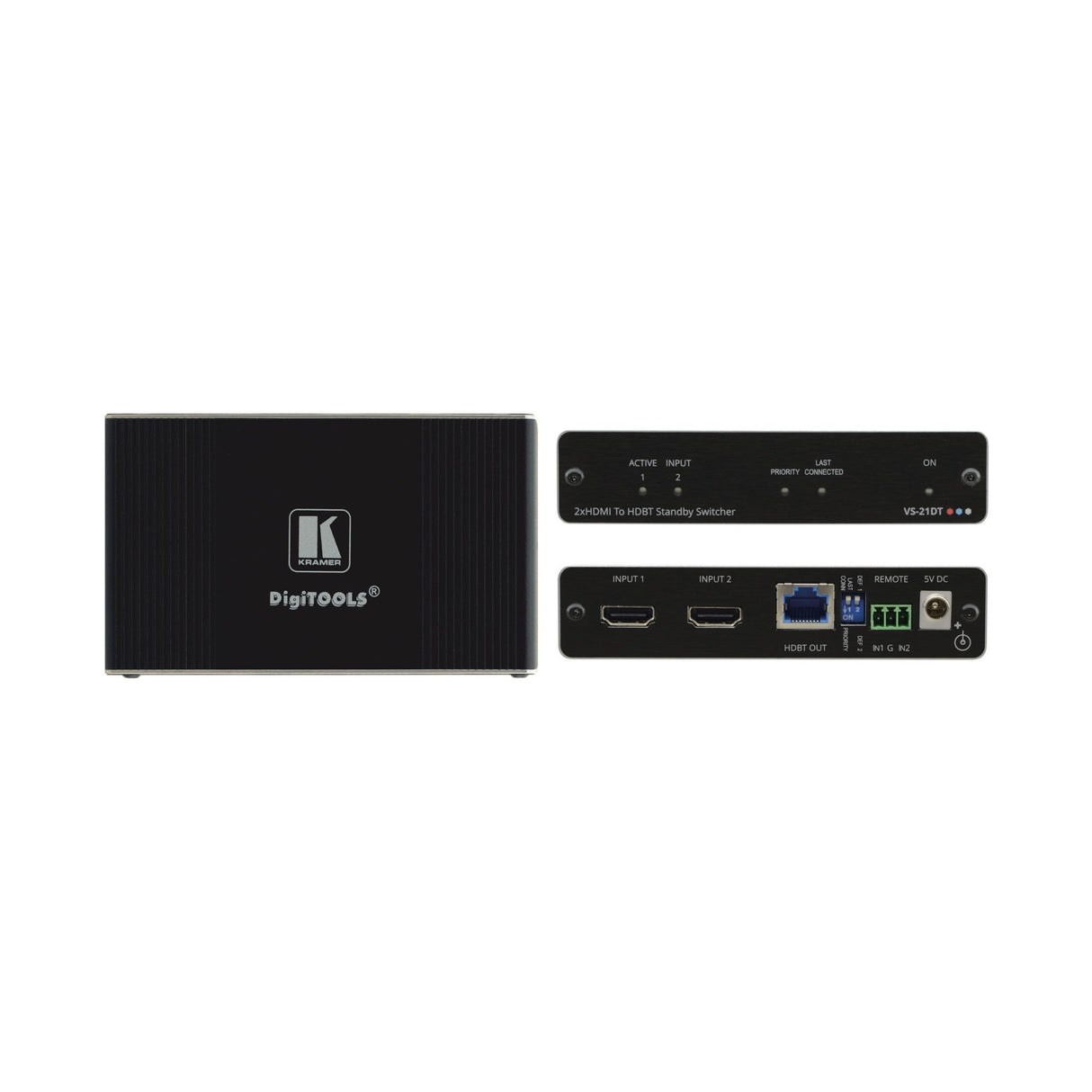

Kramer VS-21DT 2 x 1 4K60 4:2:0 HDCP 2.2 HDMI Auto Switcher over HDBaseT

VS-21DT is a high-performance automatic switcher for 4K, HDBaseT, HDMI, HDCP 2.2 video signals. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection.

Key Features

• Max. Data Rate - 8.91Gbps (2.97Gbps per data channel)
• Max. Resolution - 4K@60Hz (4:2:0)
• HDCP 2.2 Compliant
• Supports up to 40m reach at 4K@60Hz (4:2:0)
• Kramer Equalization and re-Klocking Technology
• HDTV Compatible
• 3D Pass-Though

Technical Specifications

INPUTS
2 HDMI: On female HDMI connectors
OUTPUTS
1 HDBT: On an RJ-45 connector
VIDEO
Max. Data Rate: 8.91Gbps (2.97Gbps per graphic channel)
Max. Resolution: 4K@60Hz (4:2:0)
Standards Compliance: HDCP 2.2 (does not support conversion to HDCP 1.4)
USER INTERFACE
Controls: DIP-switches for selecting switching mode (Priority/Last Connected), contact closure connectors for remote control switches
Indicators: Active input, switching mode (Priority/Last Connected) and ON
POWER
Source: 5V DC
Consumption: 1A
REGULATORY CERTIFICATION
EMC EN 55032
IEC 60950-1(ed.2)
IEC 60950-1(ed.2)am1
IEC 60950-1(ed.2)am2
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
ACCESSORIES
Included: 5V DC power adapter
PRODUCT DIMENSIONS
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
0.2kg (0.4lbs) approx.
SHIPPING DIMENSIONS
15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
SHIPPING WEIGHT
0.5kg (1.1lbs) approx.
