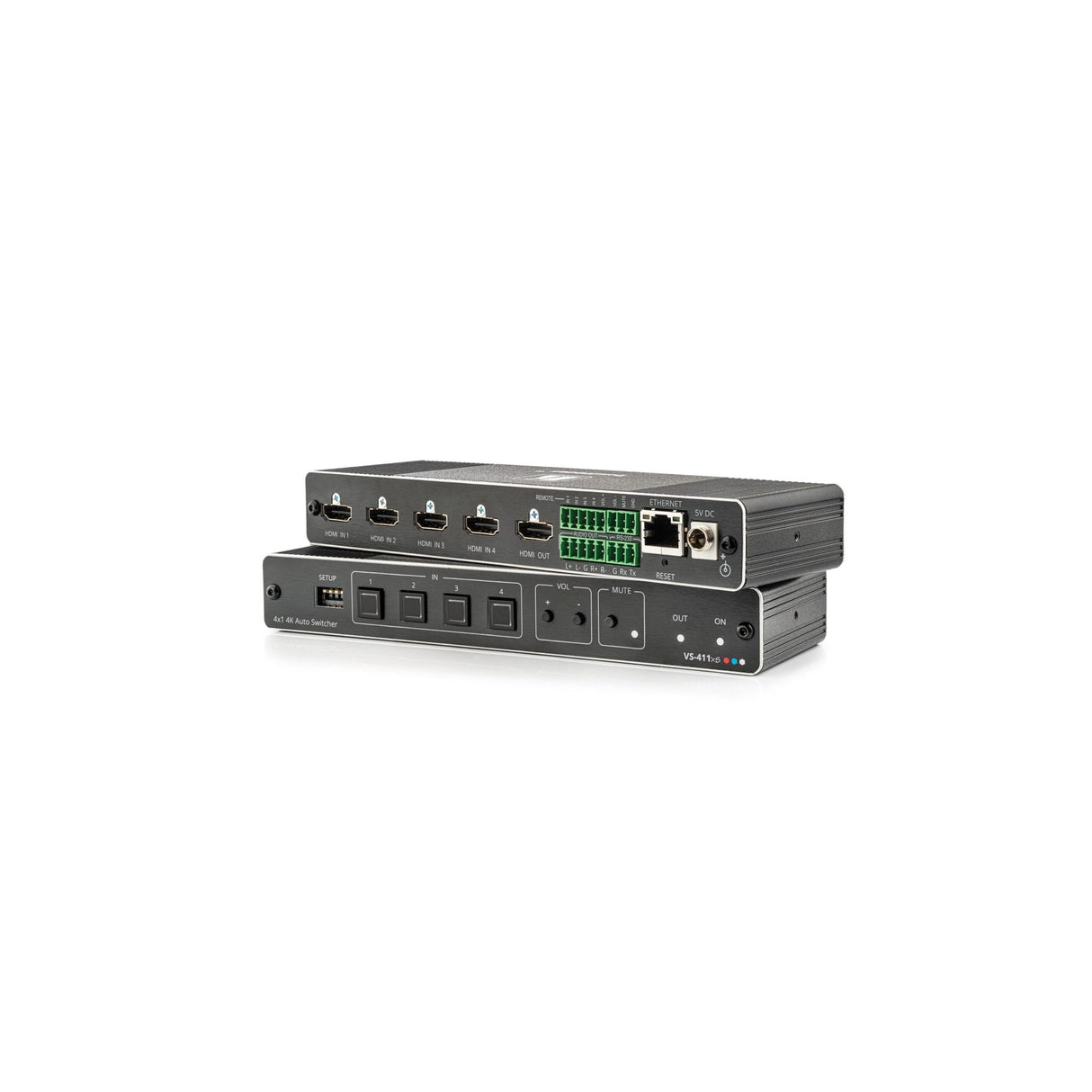

Kramer VS-411XS 4 x 1 4K HDR HDMI Intelligent Auto Switcher
Kramer VS-411XS 4 x 1 4K HDR HDMI Intelligent Auto Switcher
Free Shipping
Kramer VS-411XS 4 x 1 4K HDR HDMI Intelligent Auto Switcher
VS-411XS is an intelligent 4x1 automatic switcher for 4K HDR, HDMI video signals. VS-411XS offers an intelligent switching experience with built-in Maestro room control and the standard priority / last-connected switching function based on active video signal detection.
Key Features
- 4x1 Plug & Play Switcher
- Powerful Built-in Maestro Room Control
- Intelligent IP-driven Control Gateway
- Up to 4K@60Hz (4:4:4) Resolution
Technical Specifications
INPUTS
4 HDMI
On a female HDMI connector
OUTPUTS
1 HDMI
On a female HDMI connector
1 Balanced Stereo Audio
On 5-pin terminal block connector
PORTS
RS-232
On a 3-pin terminal block connector
Remote Contact Closure
On an 8-pin terminal block connector
Ethernet
On an RJ-45 connector
VIDEO
Max Data Rate
17.82GBPS (5.94Gbps per graphic channel)
Max Resolution
4K@60 (4:4:4)
Compliance
HDR10 as specified in HDMI 2.0, HDCP 2.2
POWER
Source
5V DC, 4A
Consumption
810mA
USER INTERFACE
Controls
Inputs selection, volume, and mute buttons, DIP-switches for configuring switching policy and audio de-embedding source, embedded web pages via IP
ENCLOSURE
Size
DemiTOOLS
Type
Aluminum
Cooling
Convection ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature
0 to +40C (32 to 104F)
Storage Temperature
-40 to +70C (-40 to 158F)
Humidity
10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Health, Safety, Environmental
RoHs, WEEE, CE
PRODUCT DIMENSIONS
19.05cm x 5.96cm x 2.74cm (7.50ā x 2.35ā x 1.08ā) W, D, H
PRODUCT WEIGHT
0.3kg (0.7lbs) approx.
SHIPPING DIMENSIONS
34.50cm x 16.50cm x 5.20cm (13.58ā x 6.50ā x 2.05ā) W, D, H
SHIPPING WEIGHT
0.8kg (1.7lbs) approx.
