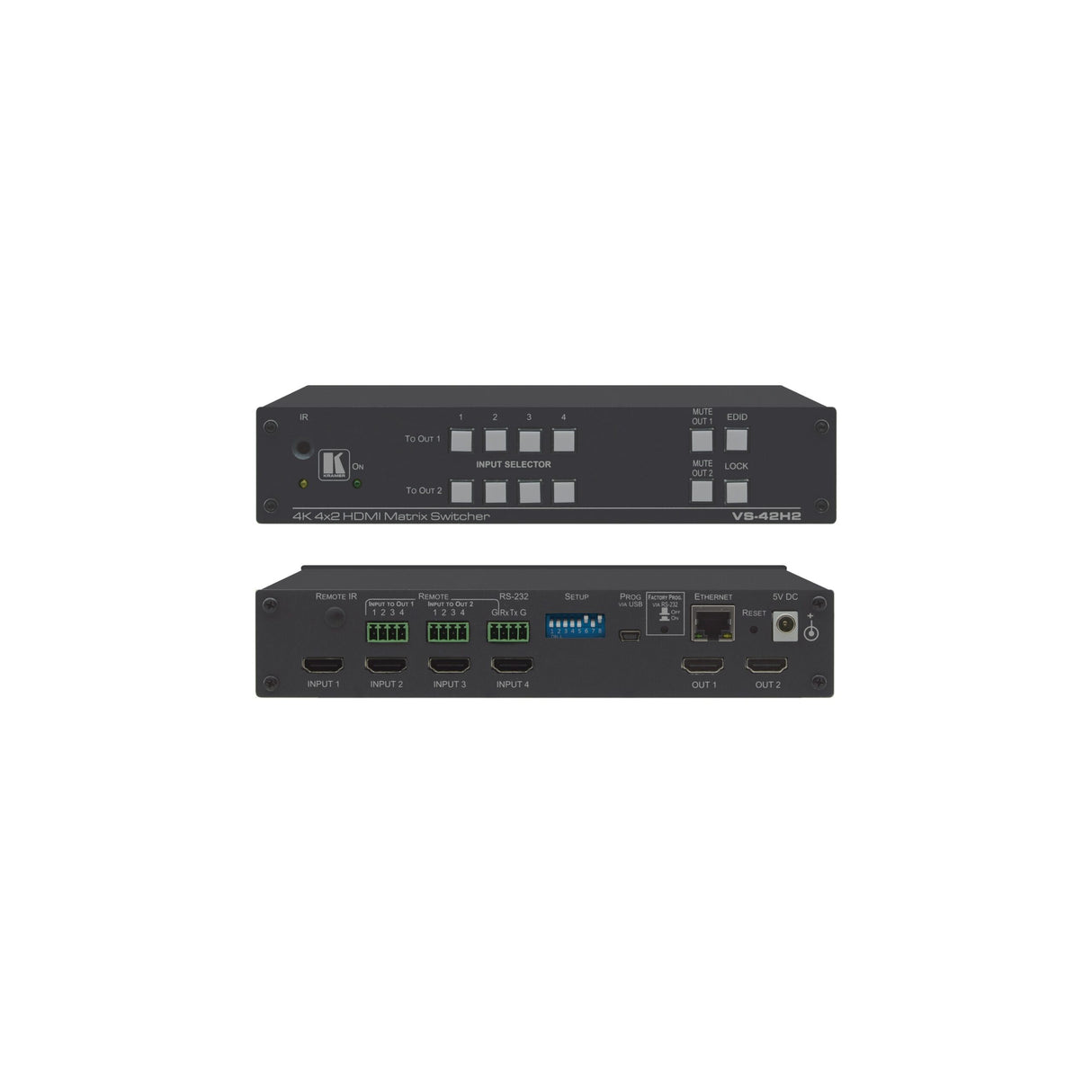

Kramer VS-42H2 4 x 2 4K HDR HDMI HDCP 2.2 Matrix Switcher
Kramer VS-42H2 4 x 2 4K HDR HDMI HDCP 2.2 Matrix Switcher
Free Shipping
Kramer VS-42H2 4 x 2 4K HDR HDMI HDCP 2.2 Matrix Switcher
VS-42H2 is a high-performance 4x2 matrix switcher for 4K HDR HDMI signals. It reclocks and equalizes the signals and can route any one of four HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously.
Key Features
- Resolutions up to 4K60 (4:4:4)
- HDCP 2.2/1.4 compliant
- Automatic switching (last connected/priority)
- Front panel button switching
- Mute buttons for each output
- Control through Ethernet, IR, RS-232
Technical Specifications
INPUTS
4 HDMI: On female HDMI connectors
OUTPUTS
2 HDMI: On female HDMI connectors
PORTS
1 Ethernet: On an RJ-45 female connector
1 RS-232: On a 3-pin terminal blocks
1 USB: On a mini USB connector
8 Remote Selection Contact-Closure Switches: On 9 terminal block pins
VIDEO
Max. Resolution: 4K@60Hz 4:4:4
Max. Data Rate: 18Gbps (6Gbps per graphic channel)
Compliance: HDCP 2.2/1.4
USER INTERFACE
Control: Input selector, output mute, EDID capture, and panel lock buttons. DIP switch HDCP configuration
Indicators: Switching, IR, and power LEDs
POWER
Source: 5V DC
Consumption: 2.5A
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RH non-condensing
STANDARDS COMPLIANCE
Safety: CE
Environmental: RoHs, WEEE
ENCLOSURE
Size: Half-19ā 1U
Type: Aluminum
Cooling: Convection ventillation
ACCESSORIES
Included: Power adapter, rubber feet, IR remote control transmitter (upon request)
PRODUCT DIMENSIONS
21.46cm x 16.30cm x 4.36cm (8.45" x 6.42" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.0kg (2.1lbs) approx.
SHIPPING DIMENSIONS
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT
1.6kg (3.5lbs) approx.
