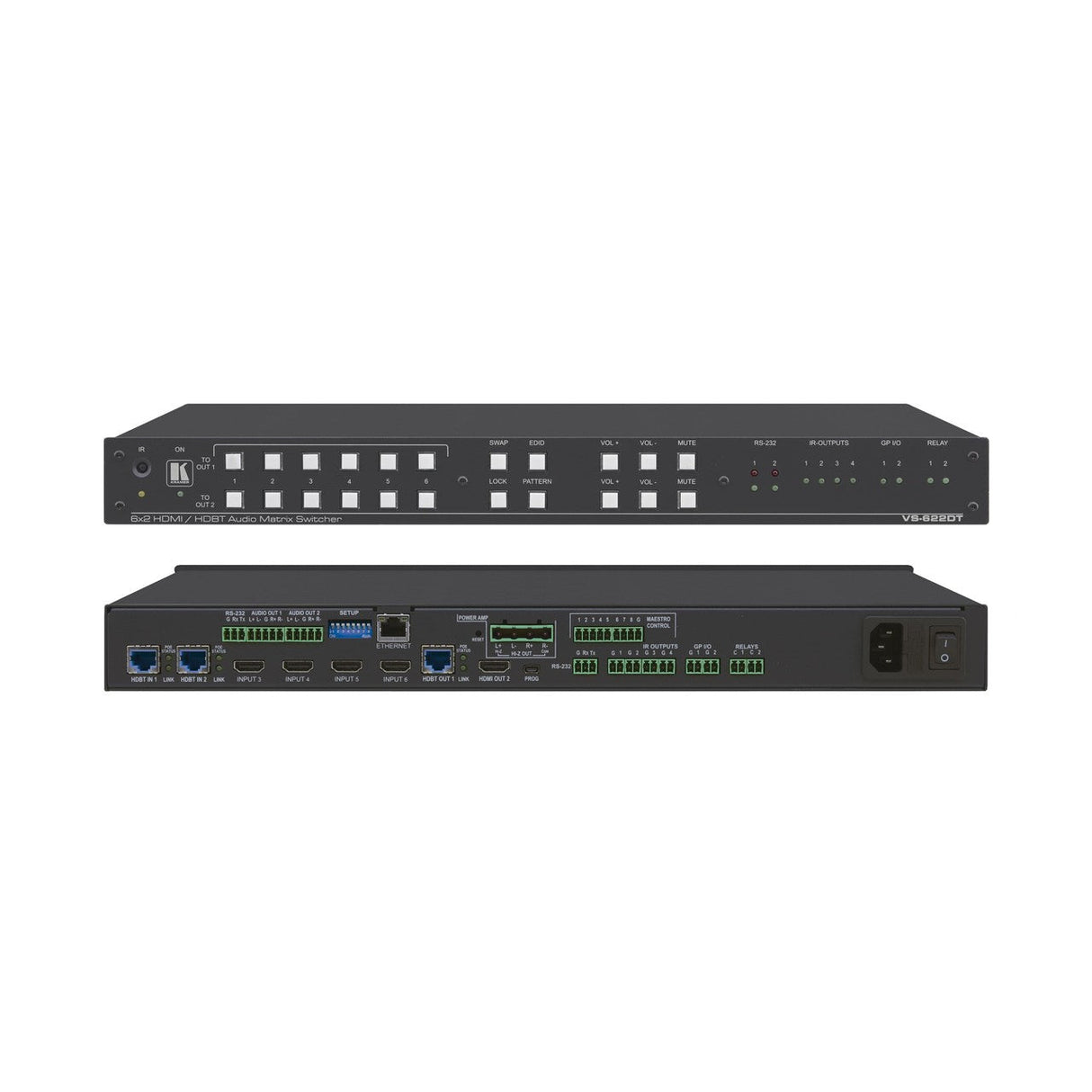

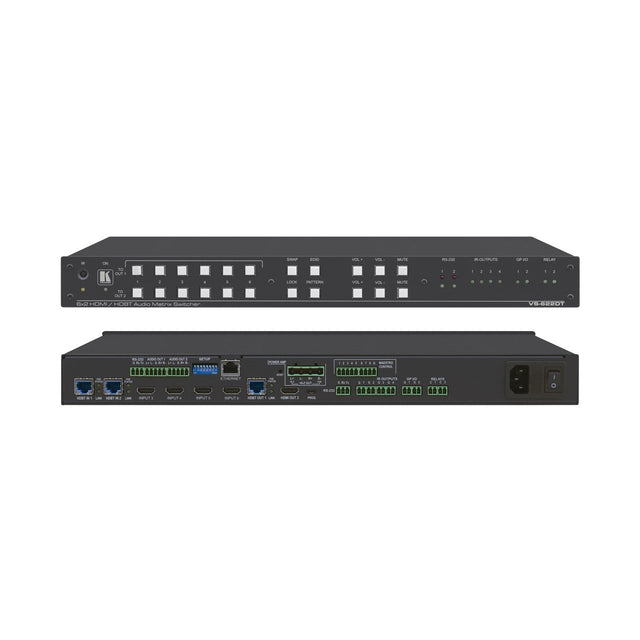

Kramer VS-622DT Presentation System with 6x2 4K20 4:2:0 HDMI/HDBaseT Matrix Switching

VS-622DT is an all-in-one 4K@60Hz (4:2:0) presentation system with 6x2 HDMI/HDBaseT matrix switching, control gateway, PoE, power amplifier, and Maestro room automation. The unit reclocks and equalizes the signals and can route any input to the HDMI or the HDBaseT output or to both outputs simultaneously. It supports resolutions up to 4K@60Hz (4:2:0) and WUXGA.
VS-622DT is also a control gateway that can send control signals over the Ethernet or HDBT LINE with control ports that include: RS-232, four IR, two GPI/O, and two relays to control a wide variety of AV devices. The unit provides power to PoE compatible devices.

Key Features

• Max. Data Rate - 10.2Gbps (3.4Gbps per graphics channel).
• Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
• HDBaseT Extension Reach - Up to 100m at 4K @60Hz (4:2:0), up to 130m (430ft) at full HD (1080p @60Hz 36bpp), up to 180m (590ft) at ultramode and full HD (1080p @60Hz 24bpp). For optimum range and performance, use recommended Kramer cables.
• Simple and Powerful Maestro Room Automation - Intuitive user interface enables you to fully automate your meeting room elements. Configure lights, shades, devices and more to be activated by an extensive range of triggers, including scheduling, input/output connectivity, routing, and button pressing. By minimizing user intervention, Maestro room automation saves meeting prep time and minimizes human error before presentations.
• Provides Power (PoE) on All HDBaseT Ports to Compatible Devices.
• Power Amplifier - 1x120W @70V/100V & 2x60W @4/8 OHM with line level output, fast swapping between two deembedded audio sources and individual gain for each source.
• Audio Deembedding (Extracting) - The user selects the audio signals from 2 of the 6 inputs (2 HDBaseT + 4 HDMI) to be deembedded. The deembedded signals are output through the two balanced analog audio outputs. In addition, one of the deembedded audio signals can be output to the power amplifier.
• HDBaseT Data Tunneling - Supports Ethernet tunneling, as well as bidirectional tunneling for RS-232 and IR control.
• HDCP Compliant.
• HDMI Support - 3D, Deep Color, x.v.Color, Lip Sync, Dolby TrueHD, Dolby Digital Plus, DTSHD, and 7.1 PCM.
• EDID Capture - Copies and stores the EDID from a display device.
• Advanced Auto AV Switching Option - Independent (breakaway) audio routing of embedded HDMI content to two balanced audio ports.
• Programmable StepIn over HDMI Functionality - When used in conjunction with compatible stepin devices, such as the
• SIDX3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
• True Video Clock Detection.
• NonVolatile EDID Storage.
• Kramer reKlocking & Equalization Technology - Rebuilds the digital signal to travel longer distances.
• Lock Button - Prevents unwanted tampering with the front panel.
• Internal Pattern Generator.
• Embedded Web Pages - Provide remote configuration and operation.
• Static or Dynamic DHCP IP Addressing.
• Flexible Control Options - Front panel buttons, IR remote (included), optional external remote IR receiver, RS-232, Ethernet, buttons and LED over contact closure, embedded Web server, Kramer Protocol 3000 support.
• USB Port - For upgrading firmware.

Technical Specifications

INPUTS
2 HDBT with PoE: On female RJ-45 Connectors
4 HDMI: On female HDMI connectors
OUTPUTS
1 HDBT with PoE: On a female RJ-45 Connector
1 HDMI: On a female HDMI connector
2 Stereo Balanced Audio: On 5pin terminal block connectors
1 Power Amplifier for Stereo or 1 Mono Speaker: On a 4pin large terminal block
PORTS
1 Ethernet: On an RJ-45 female connector
1 Control RS-232: On a 3pin terminal block
1 USB (PROG): On a mini USB connector, for firmware upgrade
1 RS-232: On a 3pin terminal block
4 IR: On 2pin terminal block connectors
2 GPI/O: On 2pin terminal block connectors
2 Relays: On 2pin terminal block connectors
VIDEO
Max Resolution: Up to 4K@60Hz UHD (4:2:0)
Compliance: HDMI 1.4 and HDCP 1.4
POWER AMPLIFIER
1 x 120W @ 70V/100V
2 x 60W @ 4/8 OHM
EXTENSION LINE
Up to 100m (330ft): At 4K@60Hz (4:2:0)
Up to 130m (430ft): At Full HD (1080p @60Hz 36bpp)
Up to 180m (590ft): HDBaseT Ultra Mode and Full HD (1080p @60Hz 24bpp)
ROOM AUTOMATION
Kramer Maestro: V1.5
USER INTERFACE
Controls: Input selection buttons, swap, EDID, lock and audio control buttons
Indicators: Power, RS-232, IR, GPI/O and relay LEDs
Remote: RS-232, Ethernet, Web pages, IR remote control transmitter, Programmable Maestro buttons interface
POWER
Source: 100-240V AC
Consumption: 250VA max
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 deg to +40 deg C (32 deg to 104 deg F)
Storage Temperature: -40 deg to +70 deg C (-40 deg to 158 deg F)
Humidity: 10% to 90%, RHL noncondensing
REGULATORY
Safety: CE
Environmental: RoHs, WEEE
ENCLOSURE
Size: 19”, 1U
Type: Aluminum
Cooling: Fan Ventilation
ACCESSORIES
Included: Power cord
PRODUCT DIMENSION
43.64cm x 23.72cm x 4.36cm (17.18" x 9.34" x 1.72" ) W, D, H
PRODUCT WEIGHT
2.6kg (5.7lbs) approx.
