Kramer VS-6464DN-EM 8 x 8 to 64 x 64 Modular Multi-Format Matrix Switcher

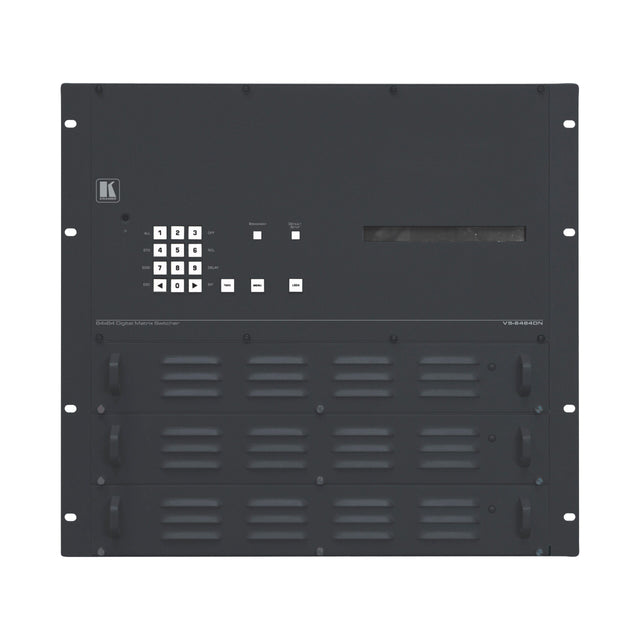

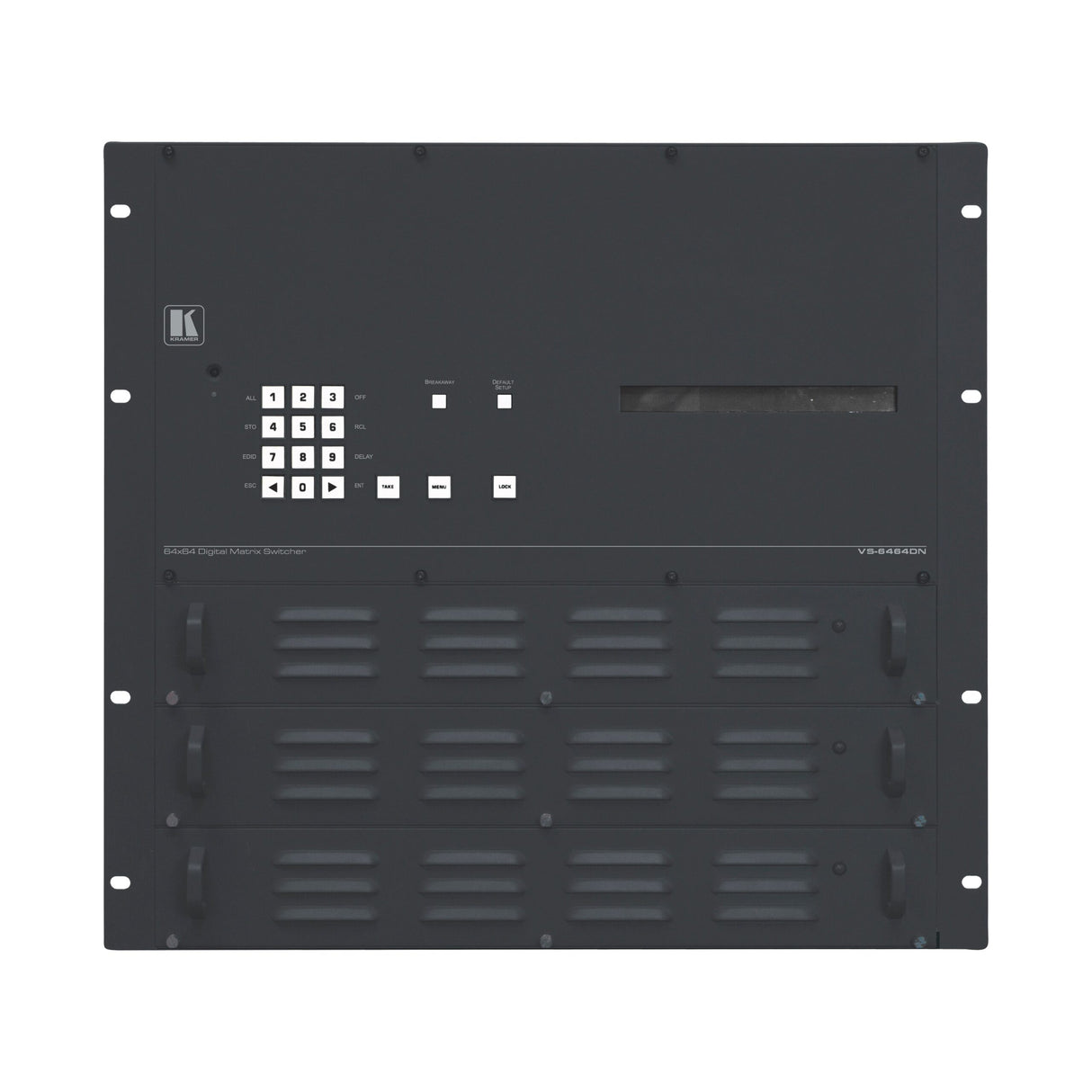

VS-6464DN-EM is a high-performance 8x8 to 64x64 modular matrix switcher chassis for AV signals. The unit is a multi-format digital switcher, populated from 8x8 to 64x64 in increments of eight inputs and/or eight outputs. The chassis includes two power supplies with an optional third for redundancy, a control module and a test module that can monitor and test any input and output in the matrix. VS-6464DN-EM supports a wide variety of input and output cards for different AV signals.
Key Features
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphics channel)
- Mix Input/Output Modules
- Local DVI Monitor Output
- Control - RS-232, Ethernet, IR, & USB
Technical Specifications
INPUTS
8 to 64 (in increments of 8) of various inputs
See ACCESSORIES & RELATED PRODUCTS
OUTPUTS
8 to 64 (in increments of 8) of various outputs
See ACCESSORIES & RELATED PRODUCTS
VIDEO
Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel) depending on the cards used
Max. Resolution: Up to UXGA
Max. Resolution: 1080p, 1920x1200
Standards Compliance: Supports DVI 1.0
CONTROLS
Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, mini USB port, in/out audio testing jacks, reset button (for future use)
SWITCHING
Confirm or At Once for immediate switching
POWER
Source: 100-240V AC, 50/60Hz
Consumption: 330VA
ACCESSORIES
Included: Power cord, IR remote control transmitter
PRODUCT DIMENSIONS
48.30cm x 36.00cm x 44.00cm (19.02" x 14.17" x 17.32" ) W, D, H
PRODUCT WEIGHT
24.0kg (52.9lbs) approx.
SHIPPING DIMENSIONS
64.20cm x 57.00cm x 52.80cm (25.28" x 22.44" x 20.79" ) W, D, H
SHIPPING WEIGHT
25.8kg (56.9lbs) approx.
