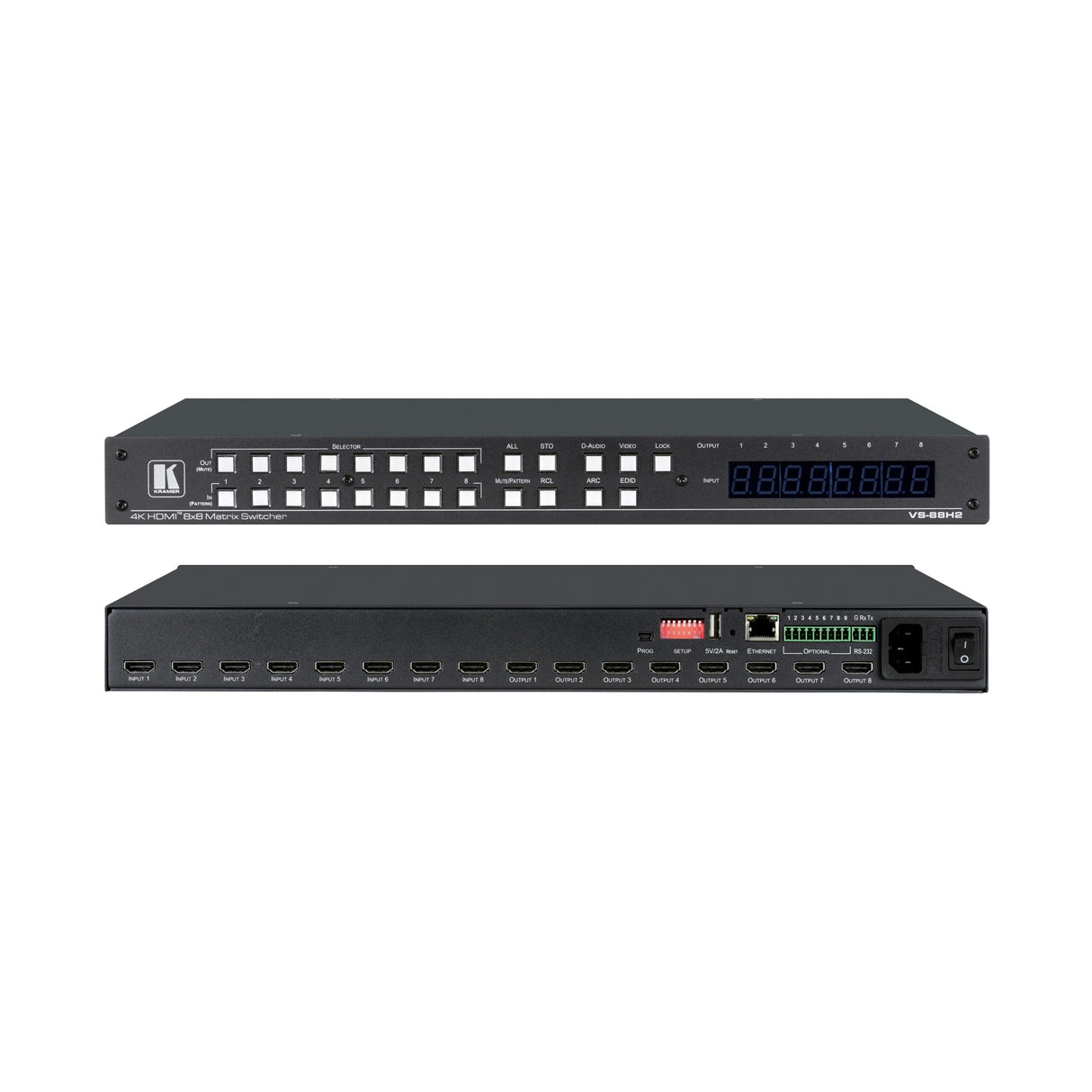

Kramer VS-88H2 8 x 8 4K HDR HDCP 2.2 Matrix Switcher

VS-88H2 is a high-performance 8x8 matrix switcher for 4K@60Hz (4:4:4) HDR signals and digital audio routing. It reclocks and equalizes the signals and can route any one of 8 HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-88H2 offers unmatched audio flexibility where any embedded digital audio input can be routed to any digital output in addition to eight ARC sources to produce an equivalent 16x12 audio matrix.

Key Features

• Resolutions up to 4K60 (4:4:4)
• Independent digital audio routing
• Step-In over HDMI
• Active source detection for priority, last-connected automatic and manual switching

Technical Specifications

INPUTS
8 HDMI: On female HDMI connectors
OUTPUTS
8 HDMI: On female HDMI connectors
PORTS
1 Ethernet: On an RJ-45 connector
1 RS-232: On a 3-pin terminal block connector
1 USB: On a USB type A connector, for powering an external device
1 USB: On a mini USB connector, for firmware upgrade or communication with a PC or serial controller
VIDEO
HDMI Support: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
Content Protection: HDCP 2.2
Max. Output Resolution: 4K@60Hz (4:4:4)
USER INTERFACE
Control: Input/output selection, mute, test pattern, memory, front panel lock, buttons. RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
Indicators: Input/output LCD display
POWER
Source: 100-240V AC 50/60Hz
Consumption: 600mA
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RH (non-condensing)
ACCESSORIES
Included: Rack ears, rubber feet, power cord
PRODUCT DIMENSIONS
43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
PRODUCT WEIGHT
2.4kg (5.2lbs) approx.
SHIPPING DIMENSIONS
52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT
3.3kg (7.3lbs) approx.
