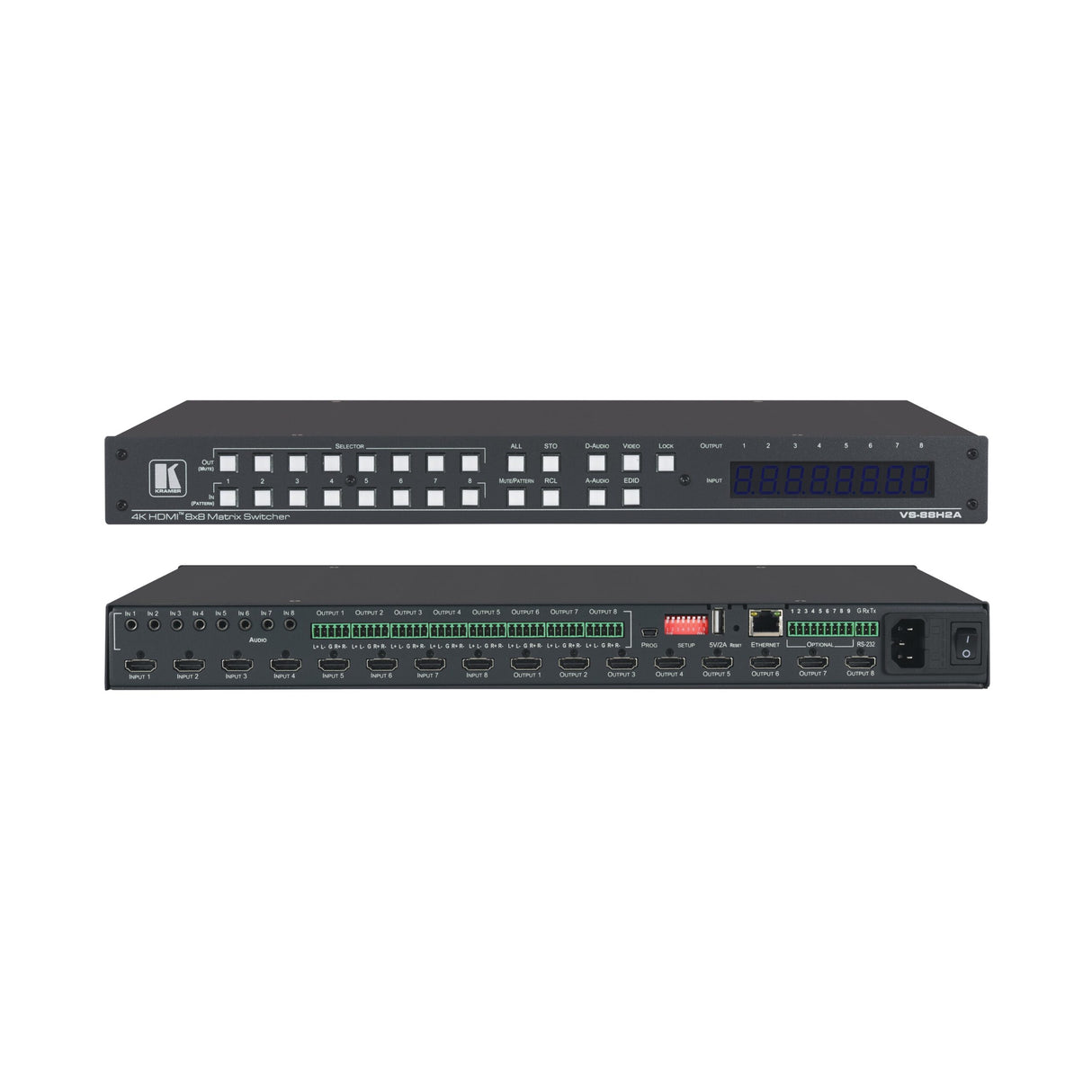

Kramer VS-88H2A 8 x 8 4K HDR HDCP 2.2 Matrix Switcher
VS-88H2A is a high-quality, 8x8 matrix switcher for 4K@60Hz (4:4:4), HDR, HDMI signals and analog & digital audio routing. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP-compliant sources (selectable) to any or all outputs simultaneously. VS-88H2A offers unmatched audio flexibility where any embedded digital or analog audio input can be routed to any embedded digital or analog audio output in addition to eight ARC sources to produce an equivalent 24x20 audio matrix.
Key Features
- Resolutions up to 4K@60Hz (4:4:4)
- Independent analog and digital audio routing
- Step-In over HDMI
- Active source detection for priority, last-connected automatic and manual switching
Technical Specifications
INPUTS
8 HDMI: On female HDMI connectors
8 Unbalanced Stereo Audio: On 3.5mm mini jacks
OUTPUTS
8 HDMI: On female HDMI connectors
8 balanced audio stereo: On 5-pin terminal blocks (+4dBu nominal)
PORTS
1 5V/2A USB: On a type-A USB connector for powering an external device
1 RS-232: On a 3-pin terminal block connector
1 Ethernet: On an RJ-45 connector
1 USB: On a mini USB connector for firmware upgrade or communication (connecting to a PC or a serial controller)
VIDEO
HDMI Support: Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels as specified in HDMI 2.0
Content Protection: HDCP 2.2
Output Resolutions: Up to 4K@60Hz (4:4:4)
USER INTERFACE
Control: Front panel buttons for input/output selection, audio embedding, mute, test pattern, memory, EDID capture, factory reset and front panel lock. Protocol 3000 API via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
Indicators: LED display for switching status
POWER
Power Source: 100-240V AC, 50/60Hz
Consumption: 600mA
ACCESSORIES
Included: Rack ears, rubber feet, power cord
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RH (non-condensing)
PRODUCT DIMENSIONS
43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
PRODUCT WEIGHT
2.5kg (5.5lbs) approx.
SHIPPING DIMENSIONS
53.00cm x 33.00cm x 10.70cm (20.87" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT
3.4kg (7.4lbs) approx.
