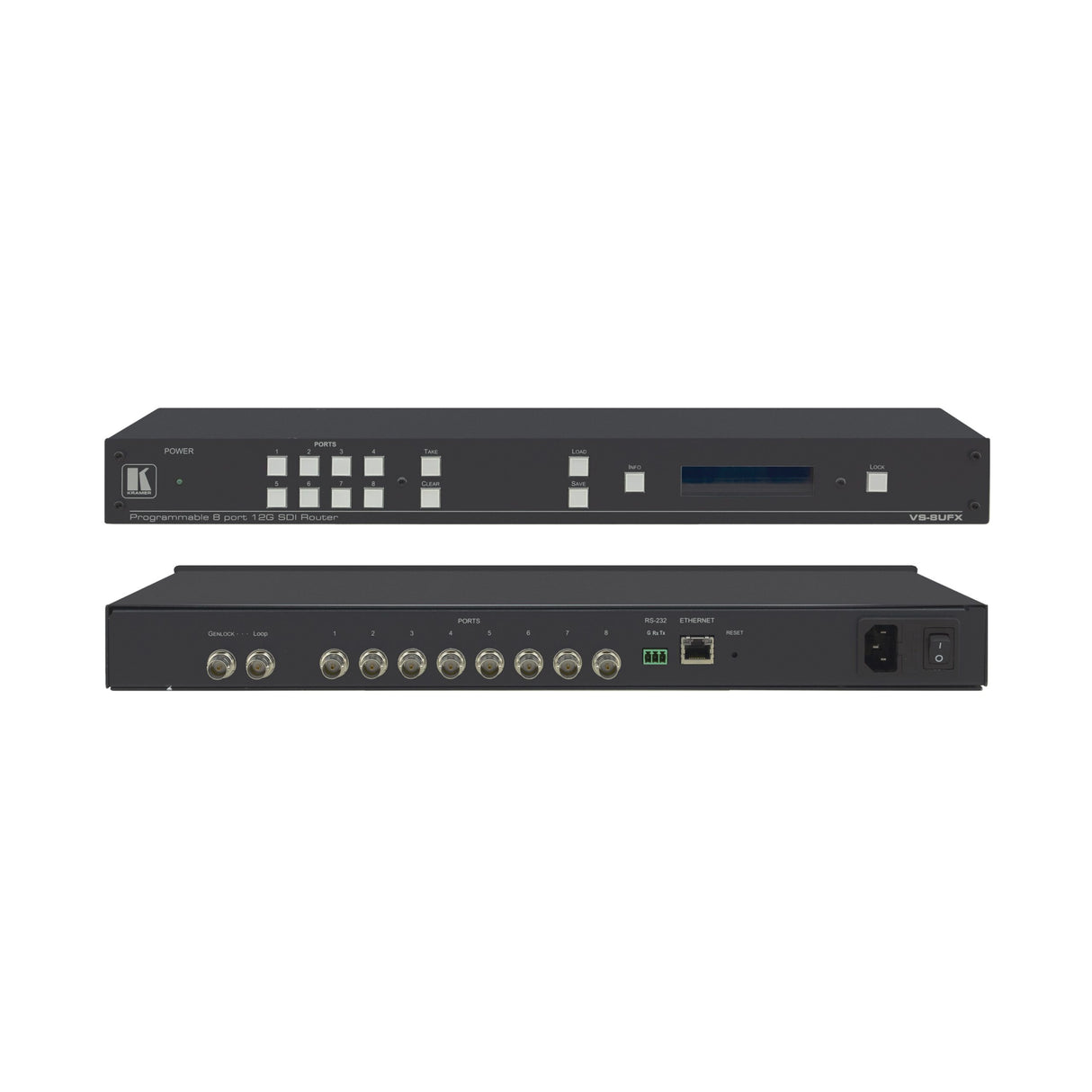

Kramer VS-8UFX 8-Port 12G SDI Matrix Switcher
VS-8UFX is an 8-port matrix switcher for SDI signals for up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x7 distribution amplifier, 7x1 switcher, 4x4 matrix switcher or any other possible input-output combination. VS-8UFX is easy to operate and control through the network using the intuitive web pages and through RS-232 using a serial controller.
Key Features
- Max Data Rate 12Gbps
- All 8 SDI ports configurable as inputs or outputs
- Multi-Standard Operation - SDI, HD-SDI, 3G SDI, 6G SDI, 12G SDI
- Cable Equalization
- Genlock versatility and clean-switching
Technical Specifications
PORTS
8 12G HD-SDI/HD-SDI/SDI video: On BNC connectors (by default, 1 to 4 are set as inputs and 5 to 8 are set as outputs)
1 Genlock: 75OHMS on a BNC connector
STANDARDS COMPLIANCE
12G-SDI: SMPTE ST-2082-1
3G HD-SDI: SMPTE 424M
HD-SDI: SMPTE 292M
SDI: SMPTE 259M/344M
VIDEO
Max. Resolution: 4K@60Hz (4:2:2)
Max. Data Rate: 12Gbps
USER INTERFACE
Controls: Front Panel Buttons, RS-232, Ethernet, Web pages
Indicators: LCD display, Power LED
EXTENSION LINE
SD: Up to 300m
1.5G HD: Up to 200m
3G: Up to 100m
6G: Up to 100m
12G: Up to 80m
COUPLING: AC
POWER
Source: 100-240V AC
Consumption : 33VA max
ENCLOSURE
Size: 19ā, 1U
Type: Aluminum
Cooling: Fan ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE
Environmental: RoHs, WEEE
ACCESSORIES
Included: Power cord, rack ears
Cables (Recommended): Belden 4794R and 4855R 12G-SDI coax cables
PRODUCT DIMENSIONS
43.64cm x 18.30cm x 4.36cm (17.18" x 7.20" x 1.72" ) W, D, H
PRODUCT WEIGHT
1.7kg (3.7lbs) approx.
SHIPPING DIMENSIONS
55.00cm x 27.60cm x 10.70cm (21.65" x 10.87" x 4.21" ) W, D, H
SHIPPING WEIGHT
2.7kg (6.0lbs) approx.
