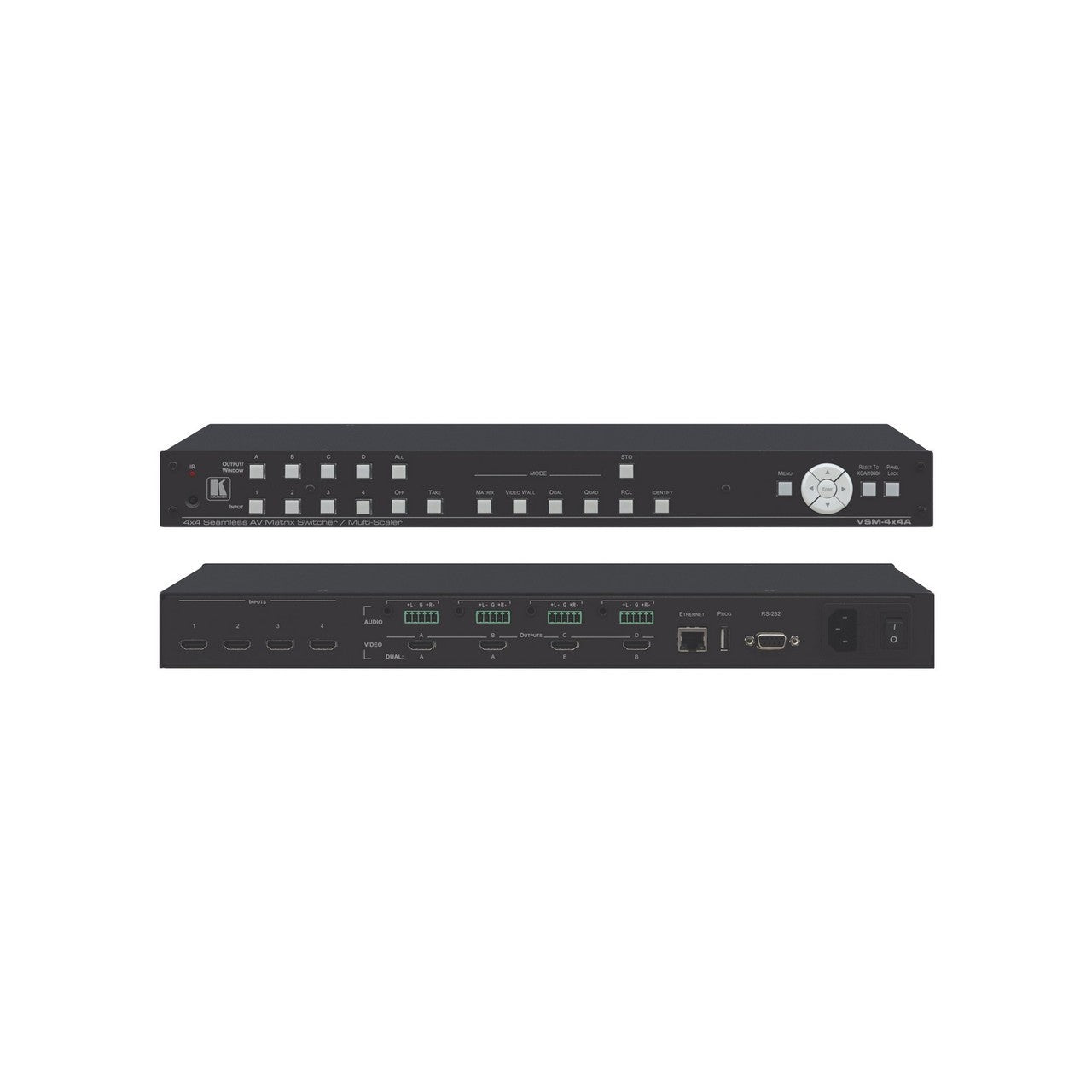

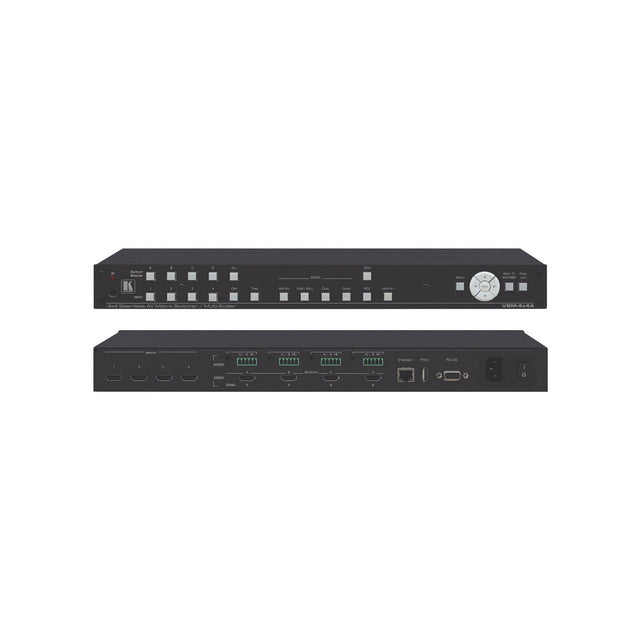

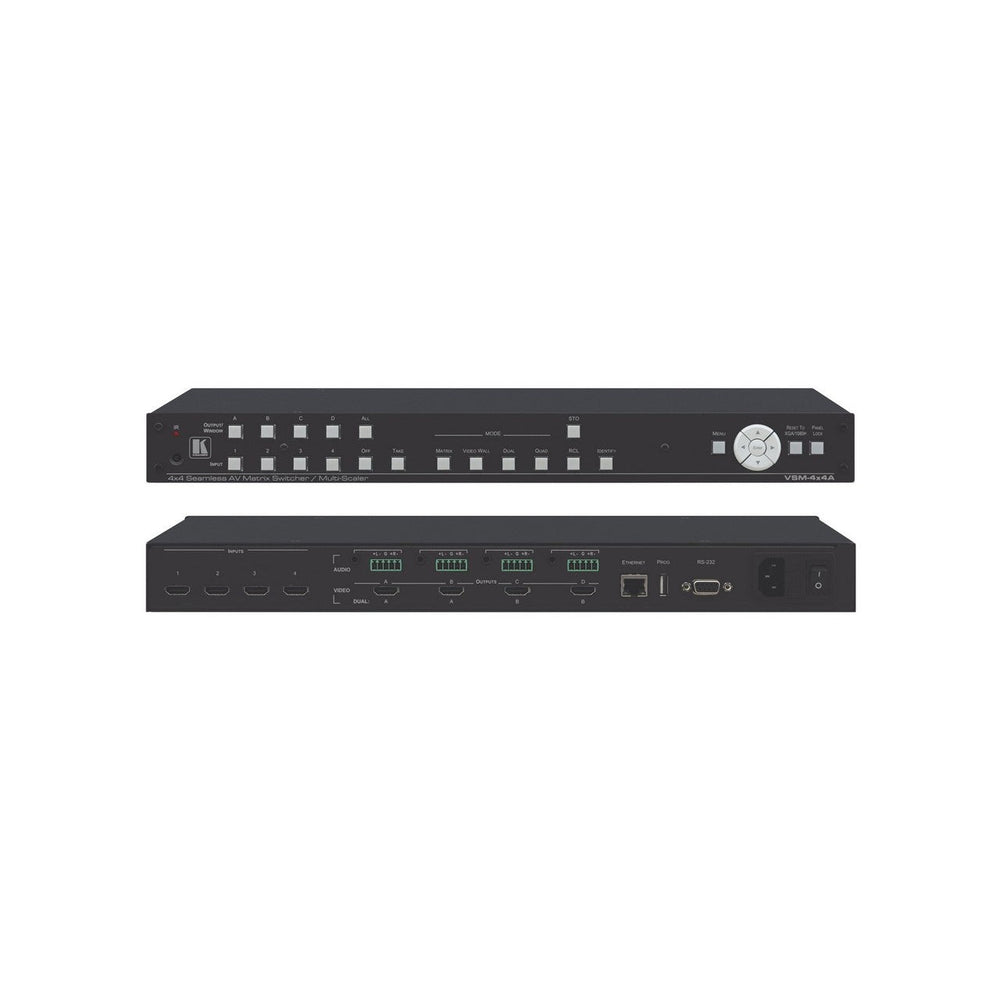

Kramer VSM-4x4A 4 x 4 Seamless AV Matrix Switcher Multi Scaler
VSM?4x4A is a 4x4 seamless matrix switcher that can also be used as a video wall driver (2x2 or 1x4) or dual and quad multi?viewers. The unit allows switching between inputs with a clean video cut (frame?to?frame switching with no glitches). It supports HDMI resolutions with deep color, up to eight channels of audio and includes per?port HDCP and EDID settings.
Key Features
- Selectable operation modes: matrix switcher, video wall, dual/quad display
- Clean switching
- Resolution to WUXGA/1080p
- Audio Outputs embedded & analog
- Size Standard 19" (1U). Rack "ears" included.
- Audio E/B/U
Technical Specifications
INPUTS
4 HDMI connectors (HDMI, HDCP version 1.1)
OUTPUTS
4 HDMI connectors (HDMI, HDCP version 1.1), 4 balanced stereo audio on terminal block connectors, 4 unbalanced audio on 3.5mm mini jacks
PORTS
1 RS-232 on 9pin connector, 1 Ethernet on RJ-45 connector, 1 USB on TypeA connector
OUTPUT RESOLUTIONS
1024x
76
1280x
80
10
1366x
76
1440x
90
1600x
90
1680x
10
1920x
12
VIDEO LATENCY
Progressive input: 30ms (typical)
CONTROLS
Front panel buttons, IR with customized remote control, RS-232, Ethernet with builtin Web pages, USB port for programming
POWER SOURCE
100-240V AC, 27VA max
OPERATING TEMPERATURE
0Ā° to +40Ā°C (32Ā° to 104Ā°F)
STORAGE TEMPERATURE
-40Ā° to +70Ā°C (-40Ā° to 158Ā°F)
HUMIDITY
10% to 90%, RHL noncondensing
INCLUDED ACCESSORIES
Power cord, rack ears, IR remote control
PRODUCT DIMENSION
19" x 7.20 x 1U (43.6cm x 18.30cm 4.36cm) W, D, H
PRODUCT WEIGHT
1.8kg (4.0lbs) approx
SHIPPING DIMENSION
52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H
SHIPPING WEIGHT
2.7kg (6.0lbs) approx
