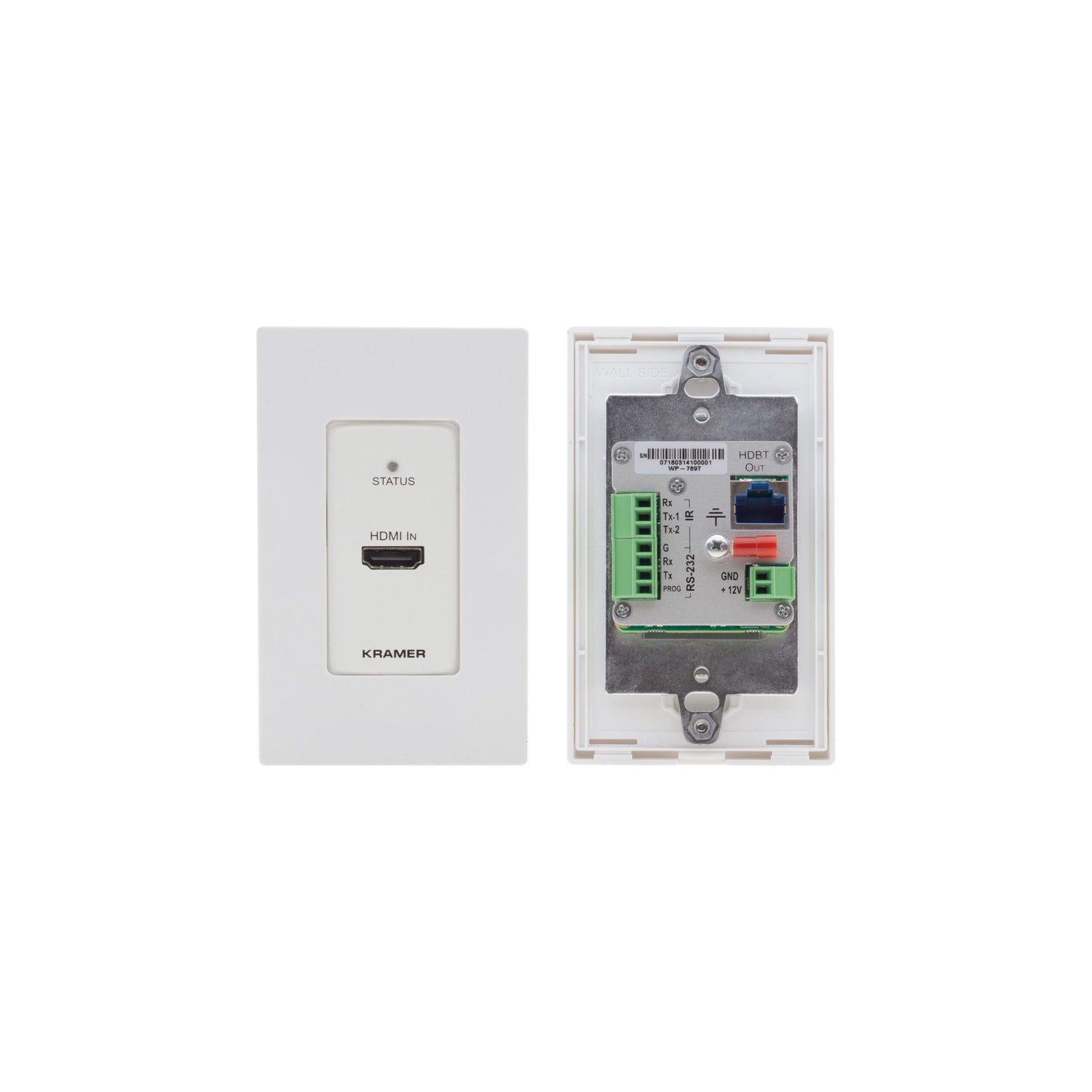

Kramer WP-789T 4K60 4:2:0 HDMI 1-Gang PoE Wall-Plate Transmitter, US

WP-789T is a high-performance , long-reach HDBaseT wall-plate transmitter for 4K@60Hz (4:2:0) HDMI and HDCP 2.2 signals over twisted pair. It converts the HDMI input signal into an HDBaseT signal and transmits it to a compatible receiver. It extends video signals to up to 40m (130ft) over Kramer copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions. This wall-plate is powered through PoE (Power over Ethernet) over the twisted pair cable.

Key Features

• high-performance Transmitter - Professional HDBaseT transmitter for providing long-reach signals over twisted pair copper infrastructures. WP-789T is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
• Reliable PoE (Power over Ethernet) Powering - Auto-senses the extension line PoE status, and accepts power from a remote PoE provider such as a PoE matrix, with optional mains powering from connected power adapter.
• HDMI Signal Extension - HDCP 1.4 and 2.2 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0.
• EDID Pass-through - Pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
• Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
• Cost-Effective Maintenance - Power and connectivity status LED indicator facilitates easy local maintenance and troubleshooting.
• Easy Installation - Compactly fits into standard US, EU and UK 1-gang in-wall box size, supporting decorative integration with room deployed user interfaces such as electrical switches. Wall-plate installation is fast and cost-effective via a single twisted pair cable, providing both video signal and power (PoE) connections.

Technical Specifications

INPUTS
HDMI: On a female HDMI connector
IR: On 2-pin terminal block connectors (Tx-1 or Tx-2 and G) for signal extension over HDBT line
OUTPUTS
HDBT: On a female RJ-45 connector
IR: On 2-pin (Rx (on IR), G) terminal block connectors for emitting signal received from HDBT line
PORTS
RS-232: On 3-pin terminal block connectors (G, Rx, Tx) for signal extension over HDBT line
RS-232: On 3-pin terminal block connectors (G, Rx, PROG) for upgrading the FW
VIDEO
Max Bandwidth: 10.2Gbps
Max Resolution: 4K@60 (4:2:0)
Compliance: HDCP 1.4 and 2.2 pass-through, EDID and CEC pass through
HDMI Support: Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
EXTENSION LINE
Up to 40m (130ft): At 4k@60 (4:2:0)
Up to 70m (230ft): At full HD (1080p@60Hz)
EXTENDED RS-232
Baud Rate: 300 to 115200 baud
EXTENDED IR
Frequency: Wide-range 20kHz to 100kHz modulated or 38kHz fixed
POWER
Consumption with Power Adapter: 12V DC, 250mA
Source: 12V DC, 2A with DC head open
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0 to +40C (32 to 104F)
Storage Temperature: -40 to +70C (-40 to 158F)
Humidity: 10% to 90%, RHL non-condensing
REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)
Safety: CE
Environmental: RoHs, WEEE
ENCLOSURE
Type: Aluminum
Cooling: Convection ventilation
ACCESSORIES
Included: 1 Power adapter, 1 power cord, installation accessories
Included in the US version: 2 US-D frame sets and faceplates (in black and in white)
Included in the European version: 1 EU white frame, 1 UK white frame, 1 EU/UK white faceplate
PRODUCT DIMENSION
US: 6.98cm x 3.10cm x 11.43cm (2.75" x 1.22" x 4.50" ) W, D, H
PRODUCT WEIGHT
US: 0.1kg (0.2lbs) approx.
