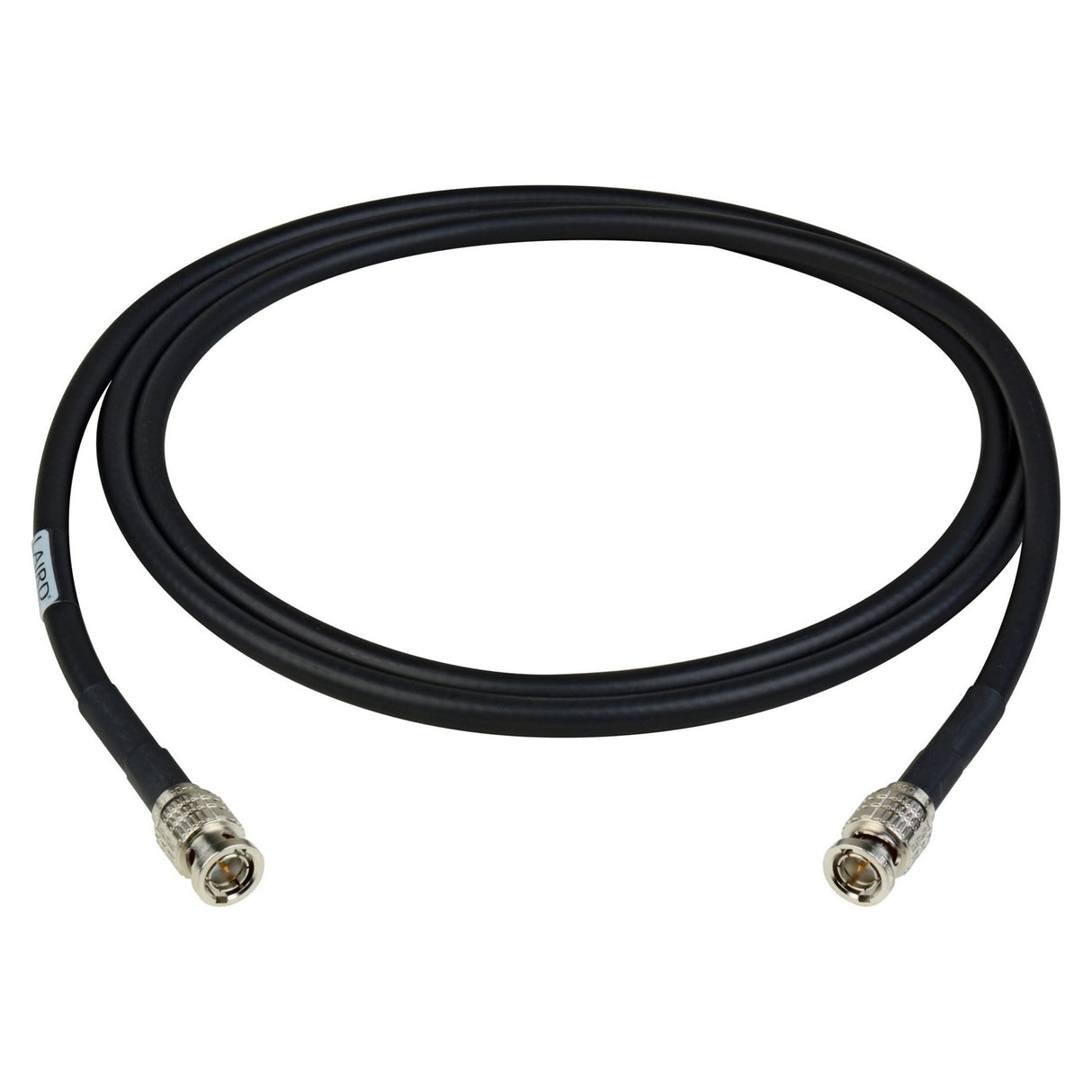

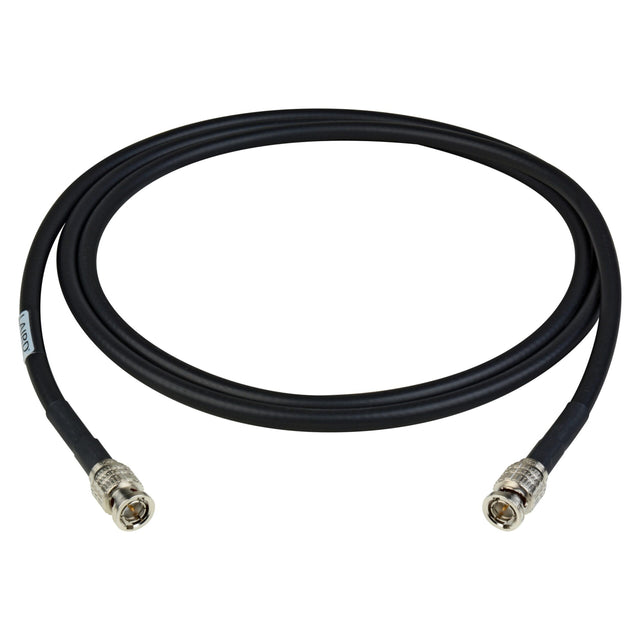

Laird 12GSDI-B-B-003 12G-SDI 4K UHD Video Coax BNC Cable, 3 Foot
Laird 12GSDI-B-B-003 12G-SDI 4K UHD Video Coax BNC Cable, 3 Foot
As 12G/4K UHD continues to shape the landscape of broadcast TV, sports, live events and commercial production workflows, Laird delivers the most advanced BNC cables on the market for effectively transmitting 12G-SDI signals up to 325 feet. Utilizing Canare L-5.5CUHD coaxial, these BNC cables are the right choice to future-proof new facility installs in studios and broadcast towers as well as outside broadcast interface applications. This coax cable has enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable-sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-5.5CUHD miniature coaxial and BCP-D55UHD connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems.
Key Features
- Designed for UHD and 4K Video Transport
- SDI Formats including 1.5G, 3G, 6G and 12G SDI SMPTE 2082-1 Standards
- Fixed and Cable Reel Deployment in Studios, Trucks, Permanent Installations
- Excellent Attenuation
- Transmits up to 328 ft/100 m
- Terminated with 12G 75 BNC Connectors
- Flamed Retardant
Technical Specifications
Canare 12G-SDI/4K UHD Single Channel BNC Cable
SMPTE ST-2082-1 Compliant for 12GSDI transmission
Return loss
15dB@12GHz, 20 dB @ 6 GHz & 26 dB @ 3 GHz
Insulation Resistance
5000M?
Corrosion Resistance
50m?
Inner Conductor
Annealed Copper
Outer Conductor 1
Copper Laminated Tape
Outer Conductor 2
Tinned Annealed Copper Braid > =91%
Insulation
Foamed Polyethylene
