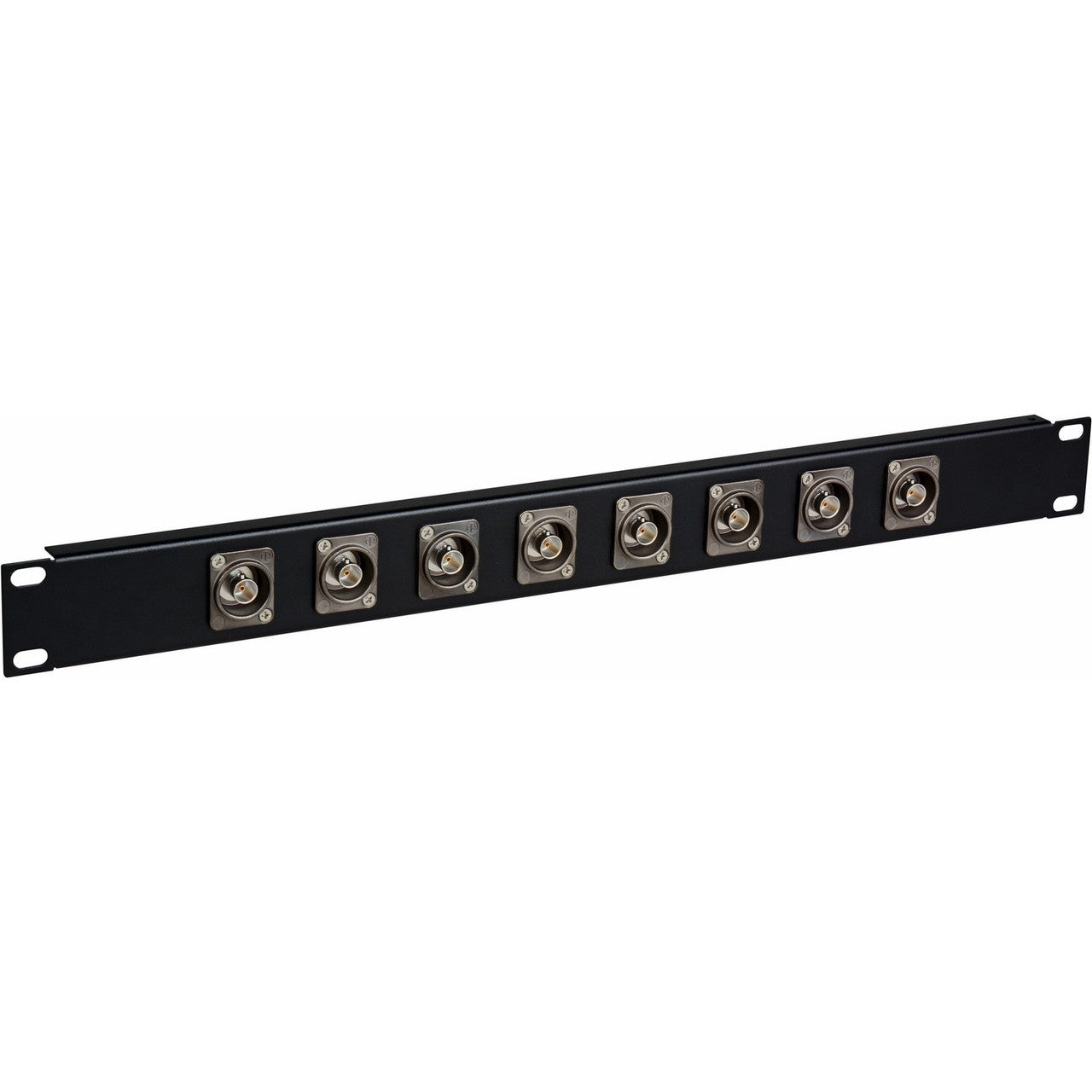

Laird Digital Cinema 8XUHD-BNCR 4K/8K 12G-SDI Feed Through BNC Patch Panel
Positioned to bring your studio cable routing needs up to 12G-SDI/4K UHD standards, the Laird 8XUHD-BNCR is a simple and cost effective 8-point feed-through patch panel.
The Laird 8XUHD-BNCR is built with Neutrik 75 Ohm 4K/8K UHD D-Style chassis mount BNC connectors. The connector's optimized insulator design achieves the best available headroom to deliver additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
Connectors are studio-standard recessed to keep cables well protected in a Neutrik's standard D-shape housing. The machined brass connector body provides an extremely rugged and non-abrasive connection for long term use. Utilizing feed-thru barrel connectors saves you time on installation versus traditional solder-back connections. The Laird 8XUGD-BNCR assures your truck, ENG mobile rig or studio are future ready!
Key Features
- Corrosion Resistant
- Designed for 4K/8K UHD, 12G-SDI Equipment Patching
- RearTWIST Neutrik BNC Connectors Provide Increased Headroom
- SMPTE ST 2082-1, ST 2081-1, ST424, ST292 Compliant
- Available in 1RU and 2RU Configurations
Technical Specifications
Neutrik rearTWIST NBB75DFGX Grounded 75 Ohm 4K/8K UHD D-Style Chassis Mount BNC Connector
Low return loss
Optimized gold plated cage type center contact for UHD signals as 4K or 8K
Swiss black chrome plating
Grounded panel mount
Standard D-shape housing provides flush mounting and protection from damage
Fully compatible with conventional BNC cable connectors
Contact resistance: inner ≤ 3 m? / outer ≤ 2 m?
Dielectric strength: 1.5 kVDC
Insulation resistance: 5 G?
