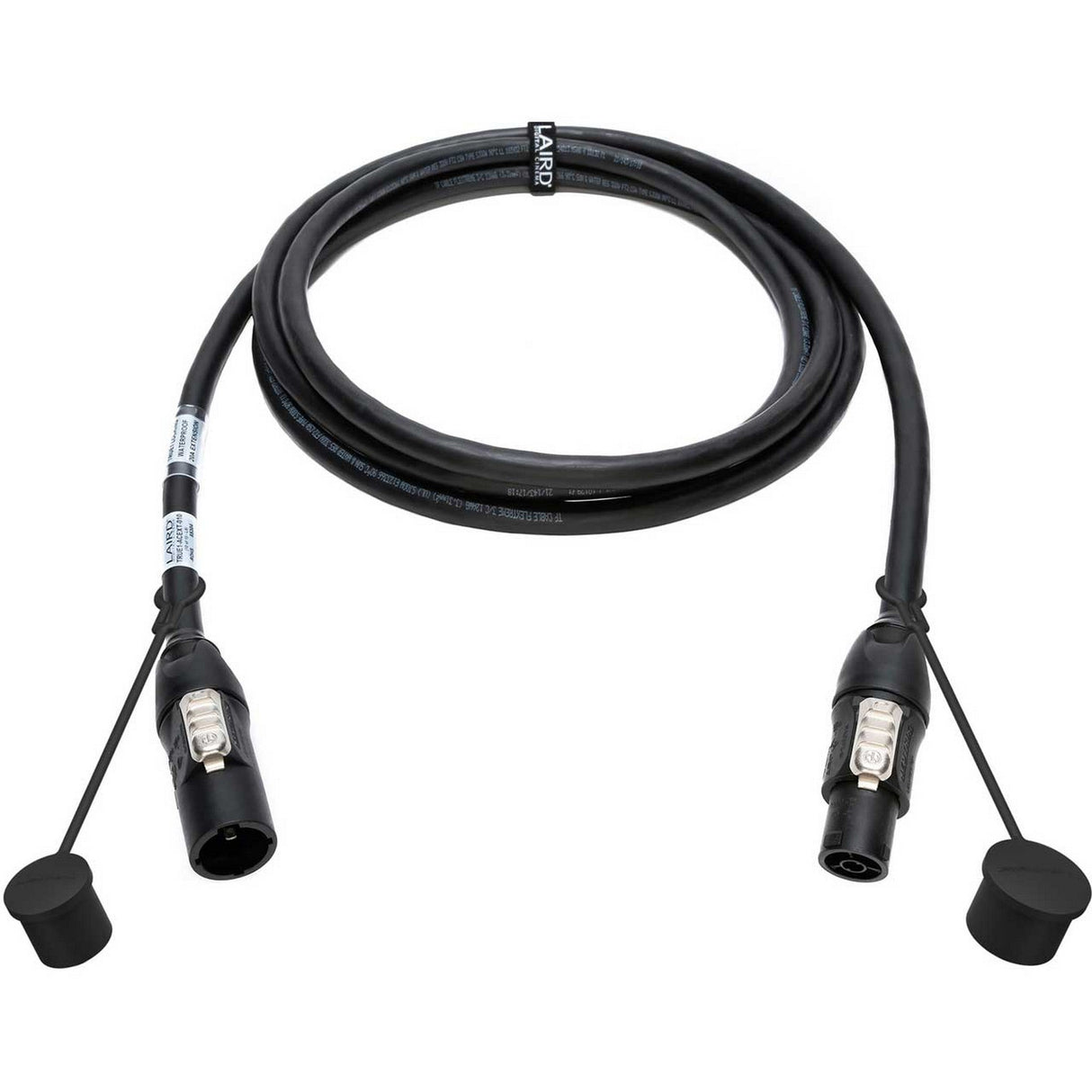

Laird TRUE1-ACEXT-010 TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable, 10-Feet
Laird TRUE1-ACEXT-010 TRUE1 powerCON Male to powerCON Female 20-Amp AC Power Extension Cable, 10-Feet
The Laird Locking Waterproof TRUE1-ACEXT Power Extension Cable assembly is a high-quality, durable solution for interconnecting electronic devices that utilize powerCON TRUE1 connectors. Designed for use in live events, motion picture, and television production, this cable assembly features UL-recognized components that ensure long-lasting performance and reliability. With its waterproof construction, it is ideal for outdoor use, providing protection against the elements.
Whether you're setting up a concert stage, filming on location, or working in a studio, the Laird Locking Waterproof TRUE1-ACEXT Power Extension Cable assembly offers a secure and dependable connection for your power distribution needs. Its rugged design and high-quality materials make it a valuable addition to any professional's toolkit.
Key Features:
- Neutrik powerCON TRUE1 Locking Connectors
- Lanyard Style Rubber Dust Caps
- Flexibility in Low Temperatures
- Dust and Water Resistant According to IP65 Rating
- Water and Oil Resistant
- Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance
Specifications:
PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable:
UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
TPrene Jacket - Black
3 conductor colors: Black, White and Green
NAC3*X-W-TOP
Contact Resistance: ā¤ 2 mĪ©
Dielectric Strength: 4 kVdc / 2.8 kVac
Insulation Resistance: > 0.1 GĪ© (after damp heat test IEC 68-2-30)
Number of Electrical Contacts: 2 + PE
Lifetime: > 5000 mating cycles
Flammability: UL 94 V-0
Protection Class: IP65, UL50E Enclosure Type 4 (Mated)
Temperature Range: -22 Ā°F to 176 Ā°F
Rating Europe: EN 60320-1: 16 A 250 V AC
Rating USA: UL 498: 20 A 250 V AC
Warranty:
1 Year
