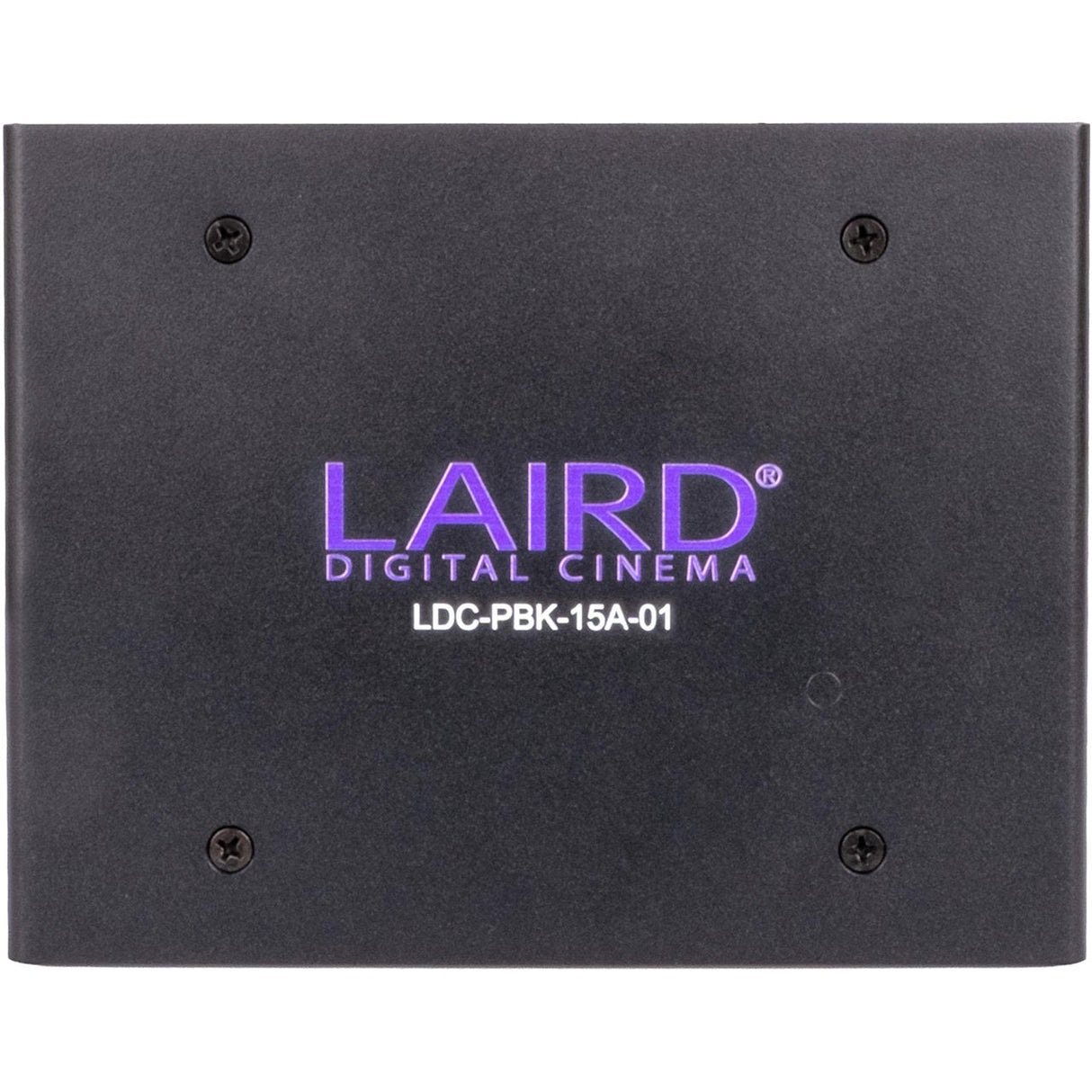

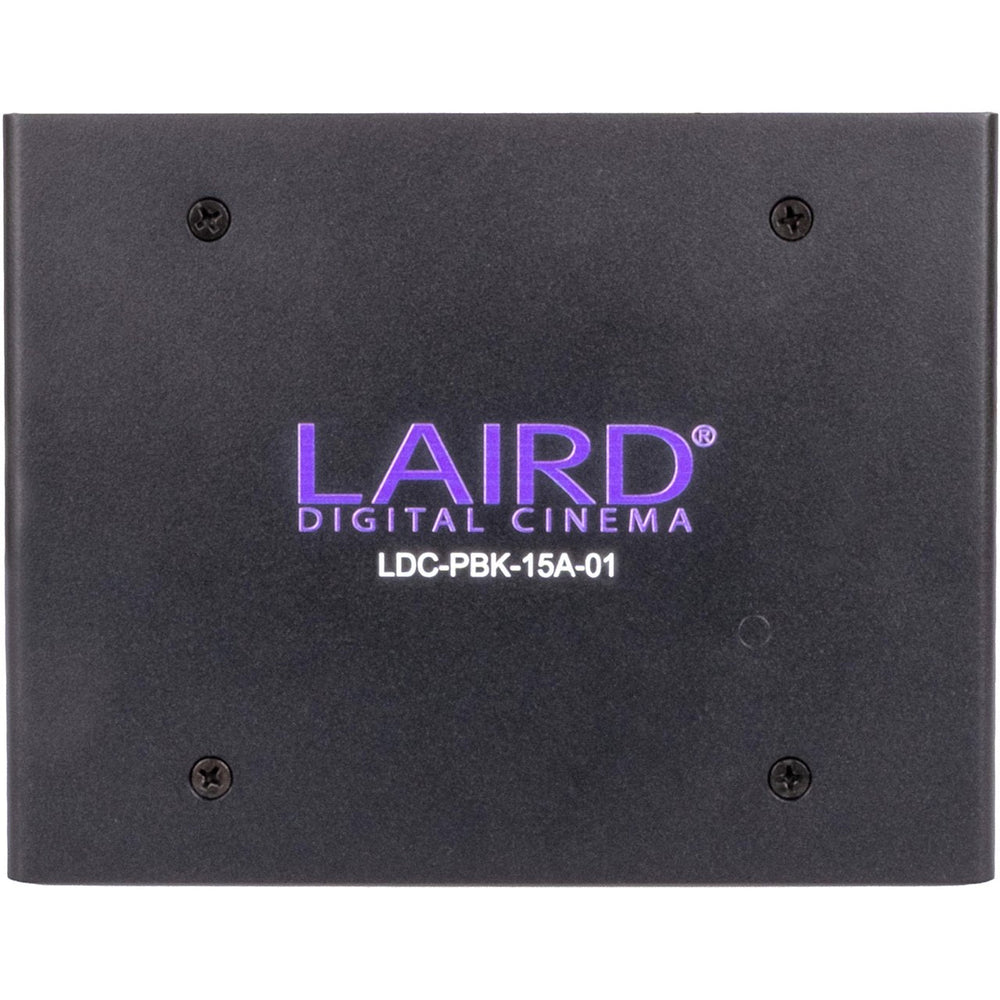

Laird LDC-PBK-15A-01 15A Power Distribution Splitter with powerCON TRUE1
The Laird LDC-PBK-15A-01 is a 15 amp power distribution splitter designed for professional audio, lighting, and live event power management. It provides feed thru power and breakout connections in a compact enclosure optimized for stage and truss based deployments.
This unit supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding setups. High quality Neutrik powerCON connectors and a rugged aluminum enclosure are used to support reliable performance in demanding production environments.
An integrated M10 threaded insert enables flexible mounting to truss systems and related hardware. The LDC-PBK-15A-01 is ideal for touring rigs, fixed installations, and event production workflows where secure and organized power distribution is required.
Key Features
- 15 Amp Power Distribution: Rated for 15 amps to support common professional production power requirements.
- Feed Thru Design: Allows daisy chaining of multiple power distribution units.
- powerCON TRUE1 Connectivity: Uses Neutrik powerCON TRUE1 connectors for secure locking power connections.

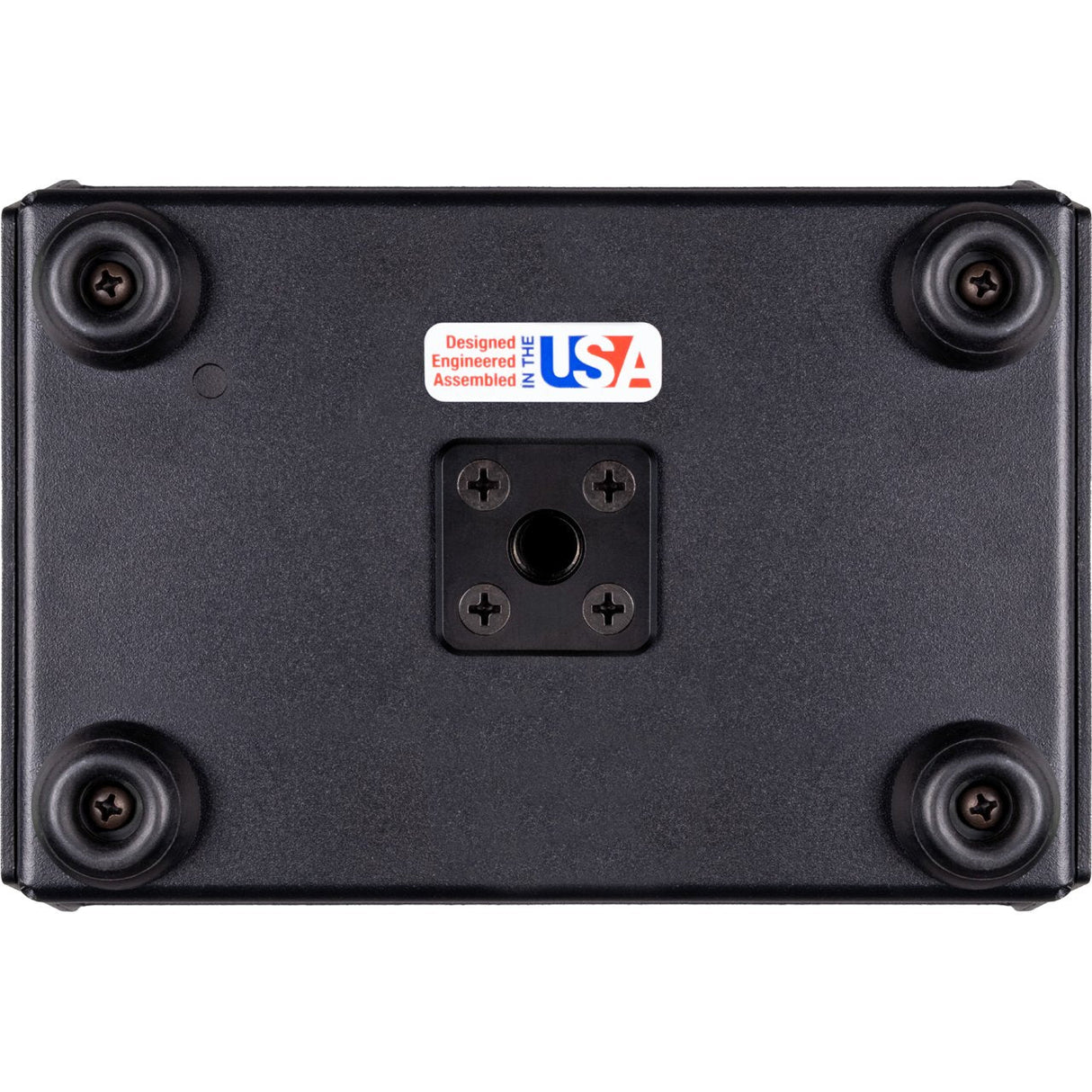

- Truss Mount Ready: Integrated M10 threaded insert supports easy mounting to truss systems.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 15 Amps.

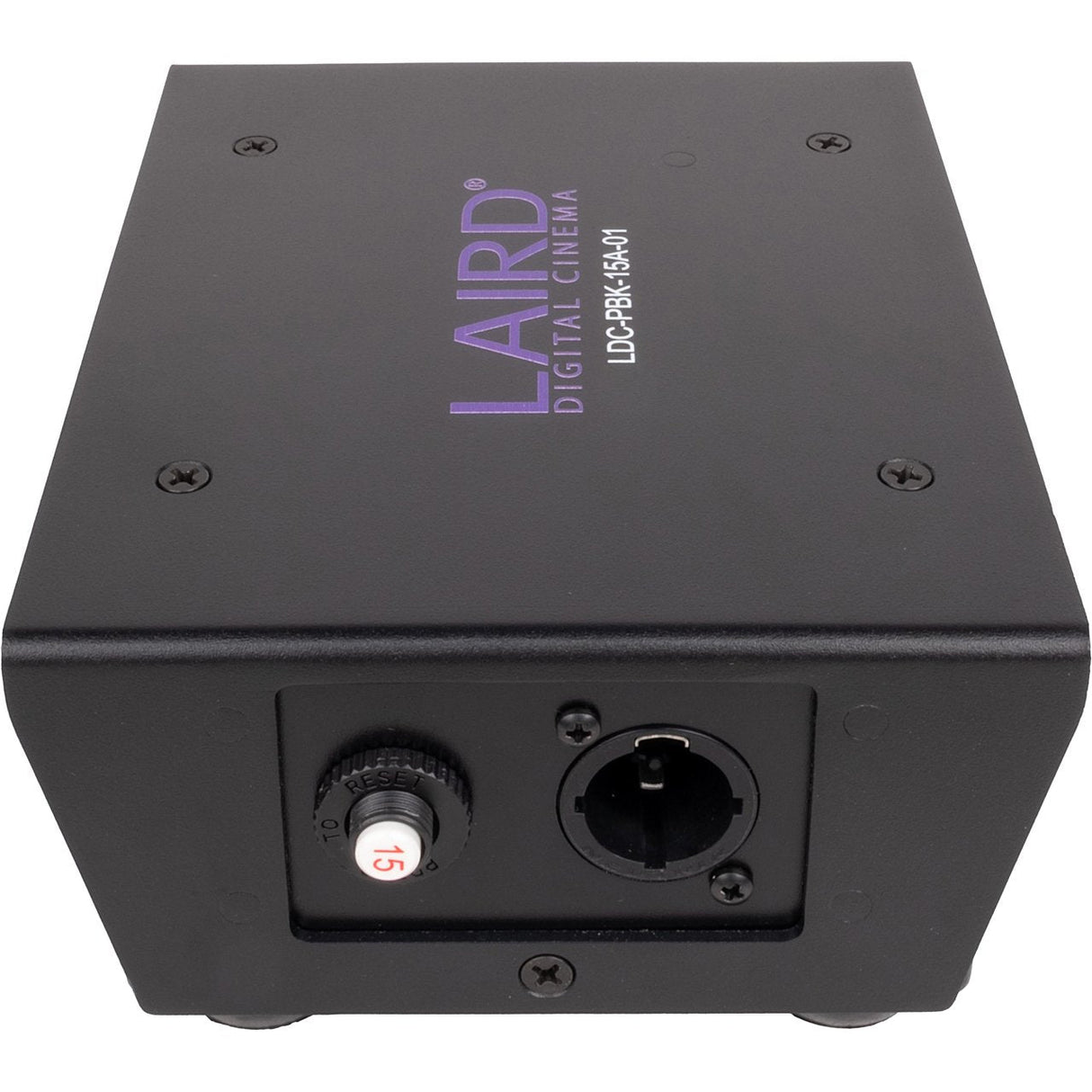

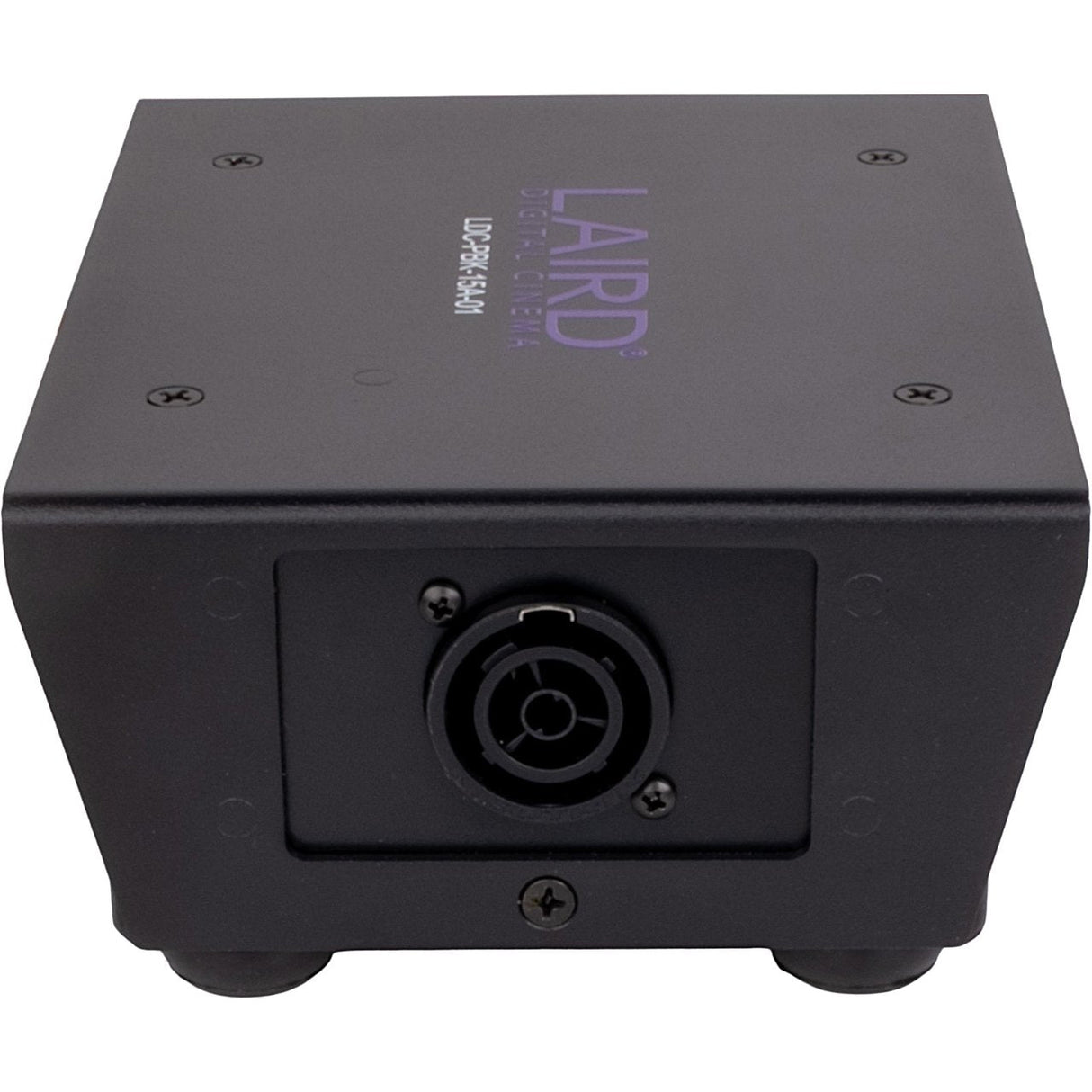

- Input Connector: 1 powerCON TRUE1.

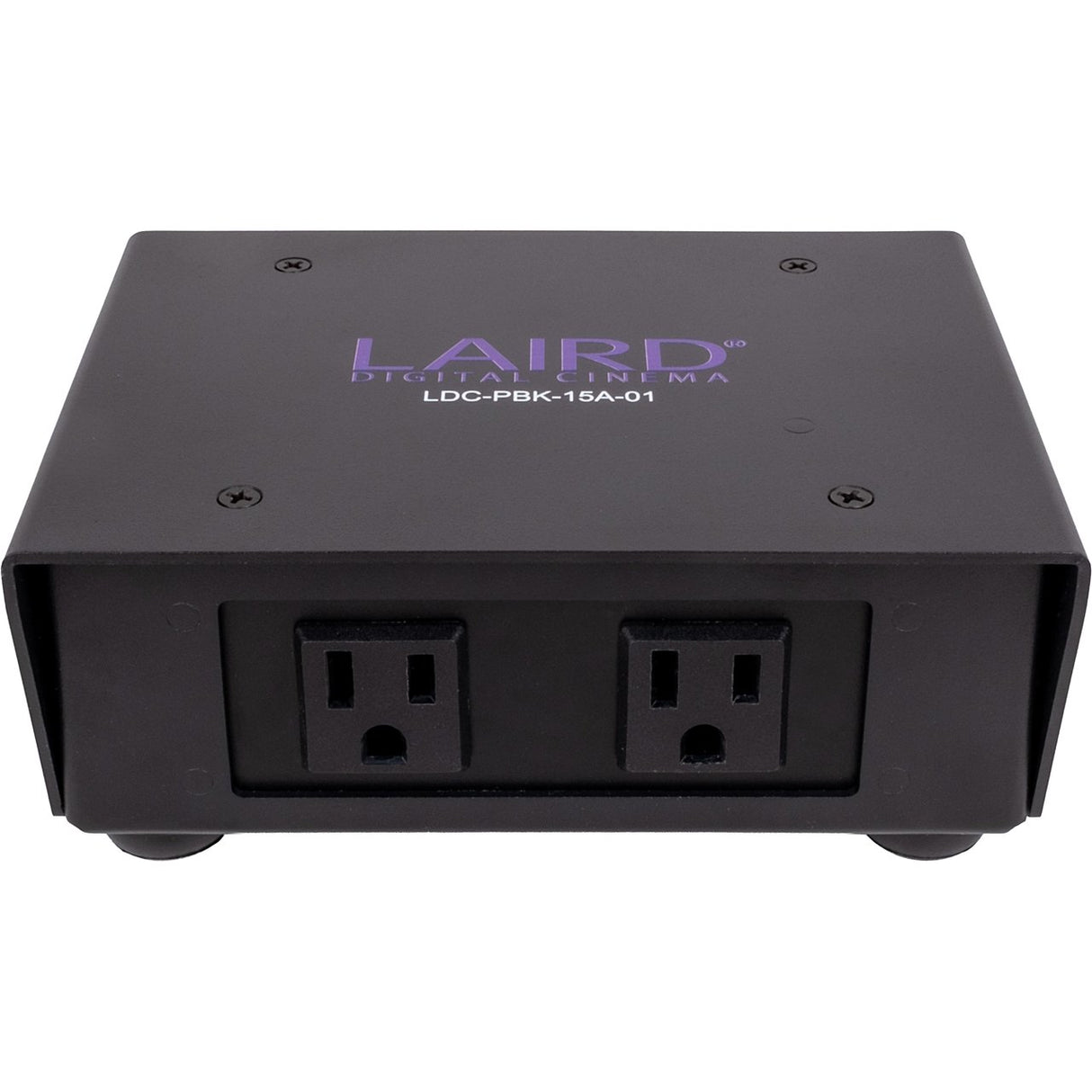

- Output Connectors: 1 powerCON TRUE1 and 4 NEMA 5-15 Edison receptacles.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Neutrik Contact Resistance: 2 mOhm maximum.
- Neutrik Dielectric Strength: 4 kVdc and 2.8 kVac.
- Neutrik Insulation Resistance: Greater than 1 GOhm.
- Neutrik Rated Voltage: 250 V AC.
- Edison Receptacle Voltage Rating: 125 V AC.
- Edison NEMA Rating: 5-15.
