Description
Laird LDC-PBK-15A-02 15A Power Distribution Splitter with powerCON Type A and Type B
The Laird LDC-PBK-15A-02 is a 15 amp power distribution splitter designed for professional audio, lighting, and live event applications. It provides reliable feed thru power and breakout connections in a compact enclosure suited for stage and truss based deployments.
This model supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding systems. High quality Neutrik powerCON connectors and a rugged aluminum enclosure are used to ensure consistent performance in demanding production environments.
An integrated M10 threaded insert enables flexible mounting to truss systems and related equipment. The LDC-PBK-15A-02 is ideal for touring rigs, fixed installations, and event production workflows that require organized and dependable power distribution.
Key Features
- 15 Amp Power Rating: Rated for 15 amps to support common professional production power needs.
- Feed Thru Design: Enables daisy chaining of multiple power distribution boxes.
- powerCON Connectivity: Uses Neutrik powerCON Type A input and Type B output connectors.

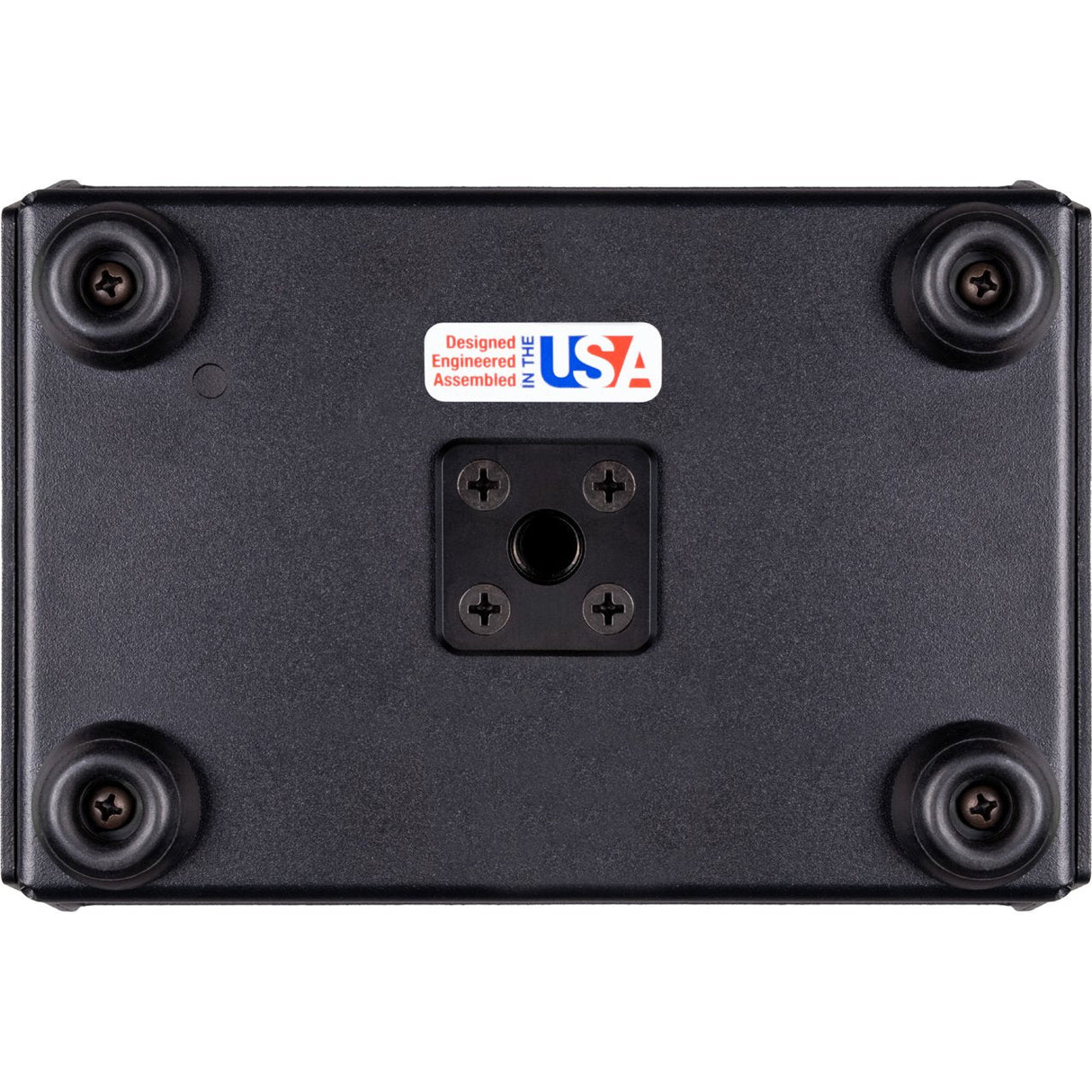

- Truss Mount Ready: Integrated M10 threaded insert supports easy truss mounting.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 15 Amps.

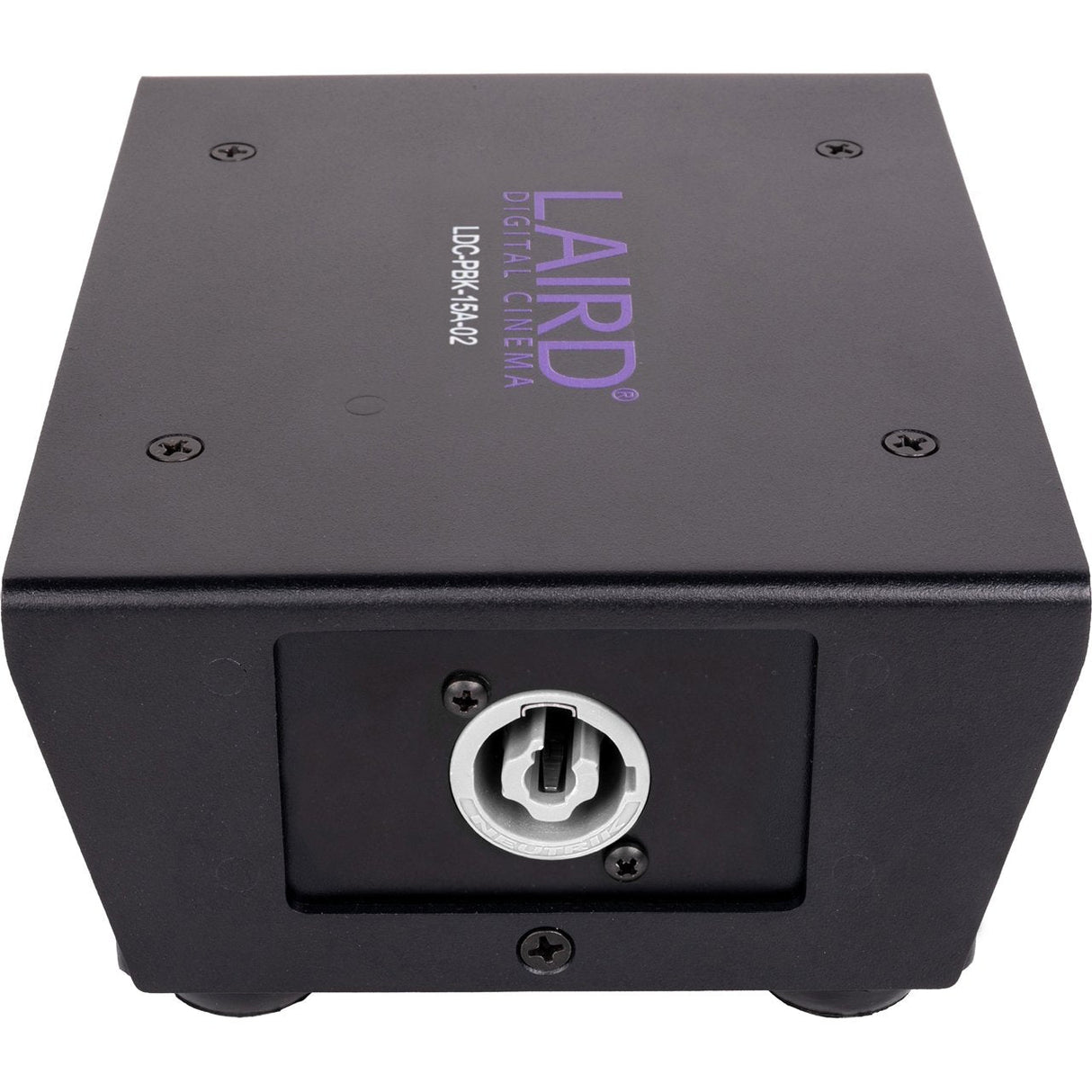

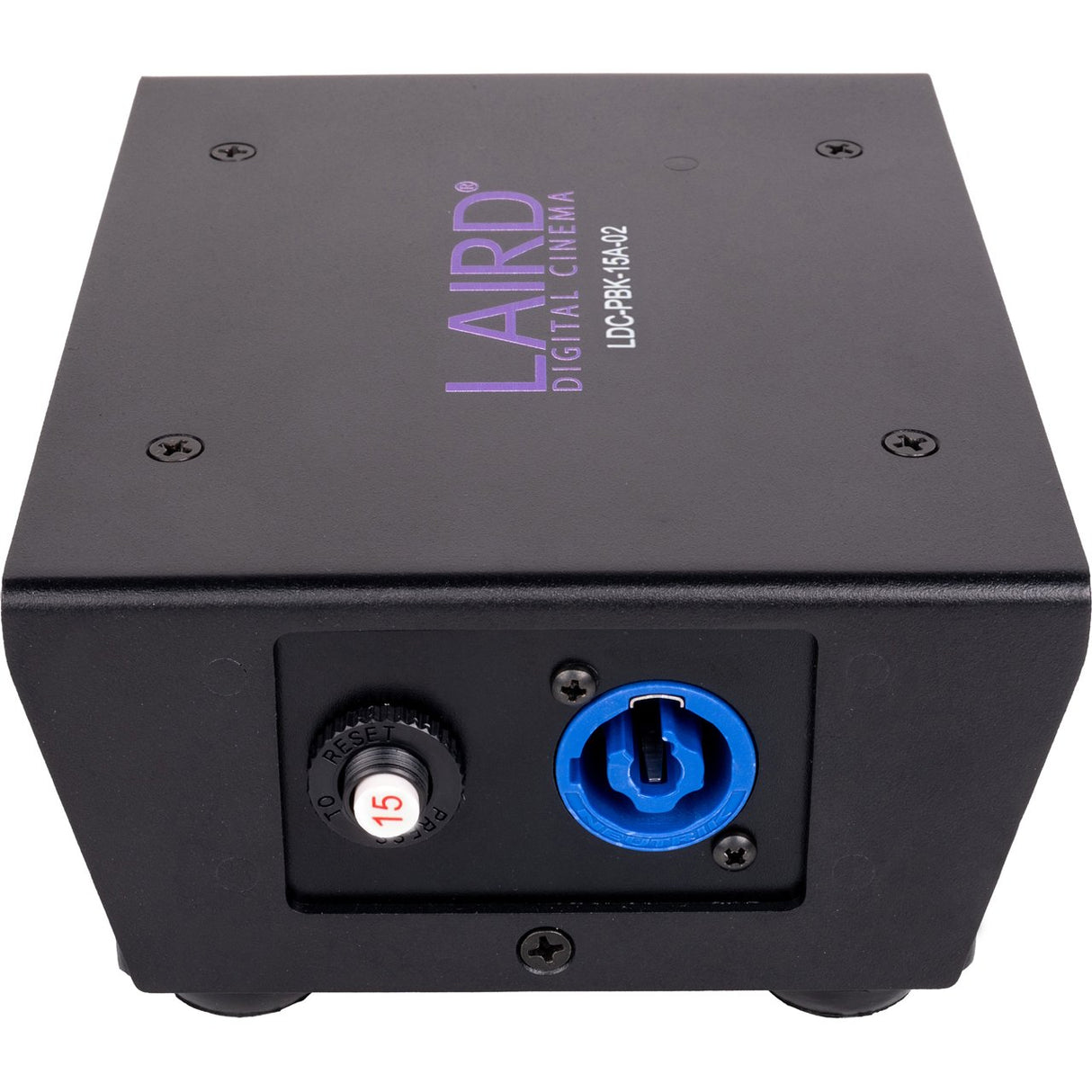

- Input Connector: 1 powerCON Type A.

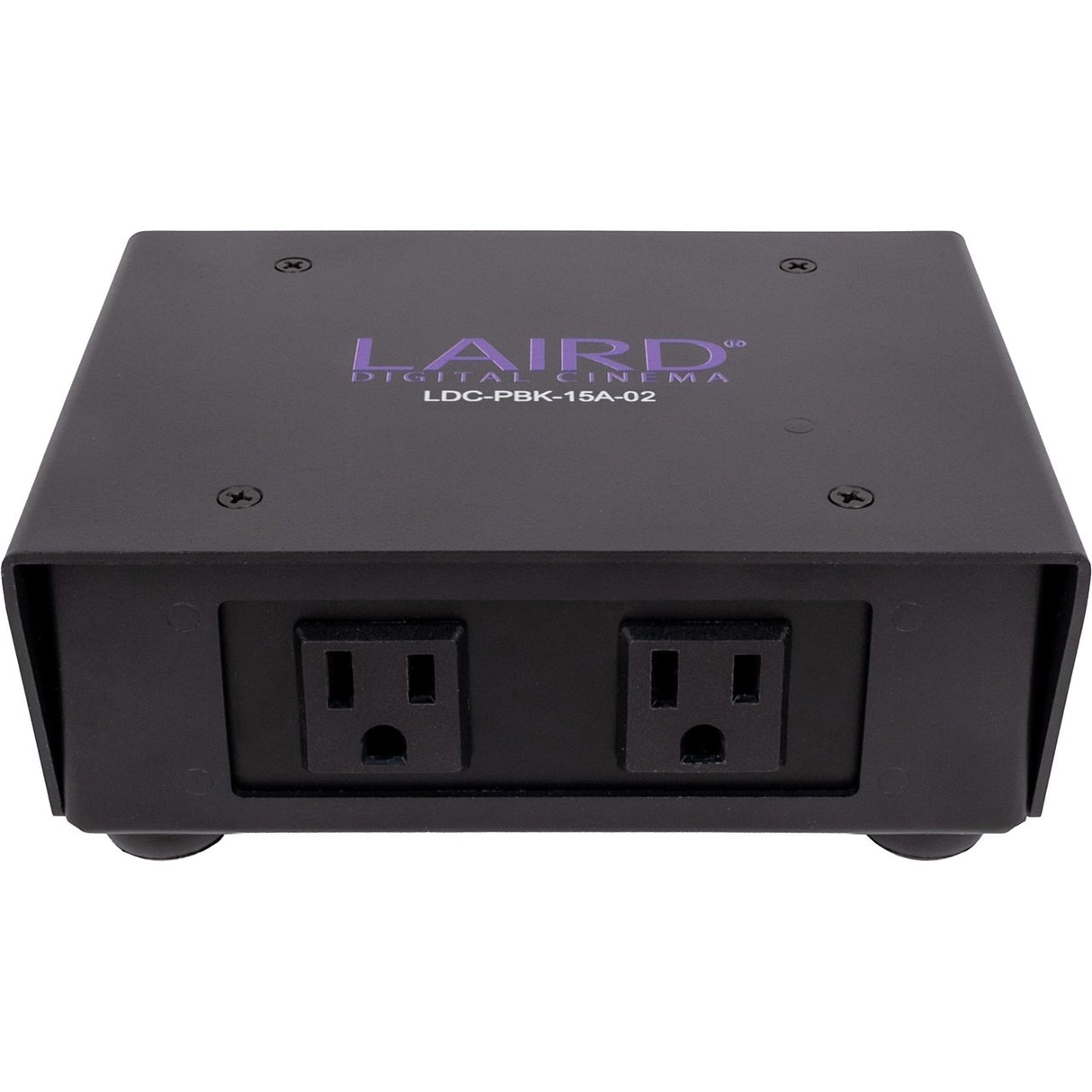

- Output Connectors: 1 powerCON Type B and 4 NEMA 5-15 Edison receptacles.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Neutrik Contact Resistance: 2 mOhm maximum.
- Neutrik Dielectric Strength: 4 kVdc and 2.8 kVac.
- Neutrik Insulation Resistance: Greater than 1 GOhm.
- Neutrik Rated Voltage: 250 V AC.
- Edison Receptacle Voltage Rating: 125 V AC.
- Edison NEMA Rating: 5-15.
