Description

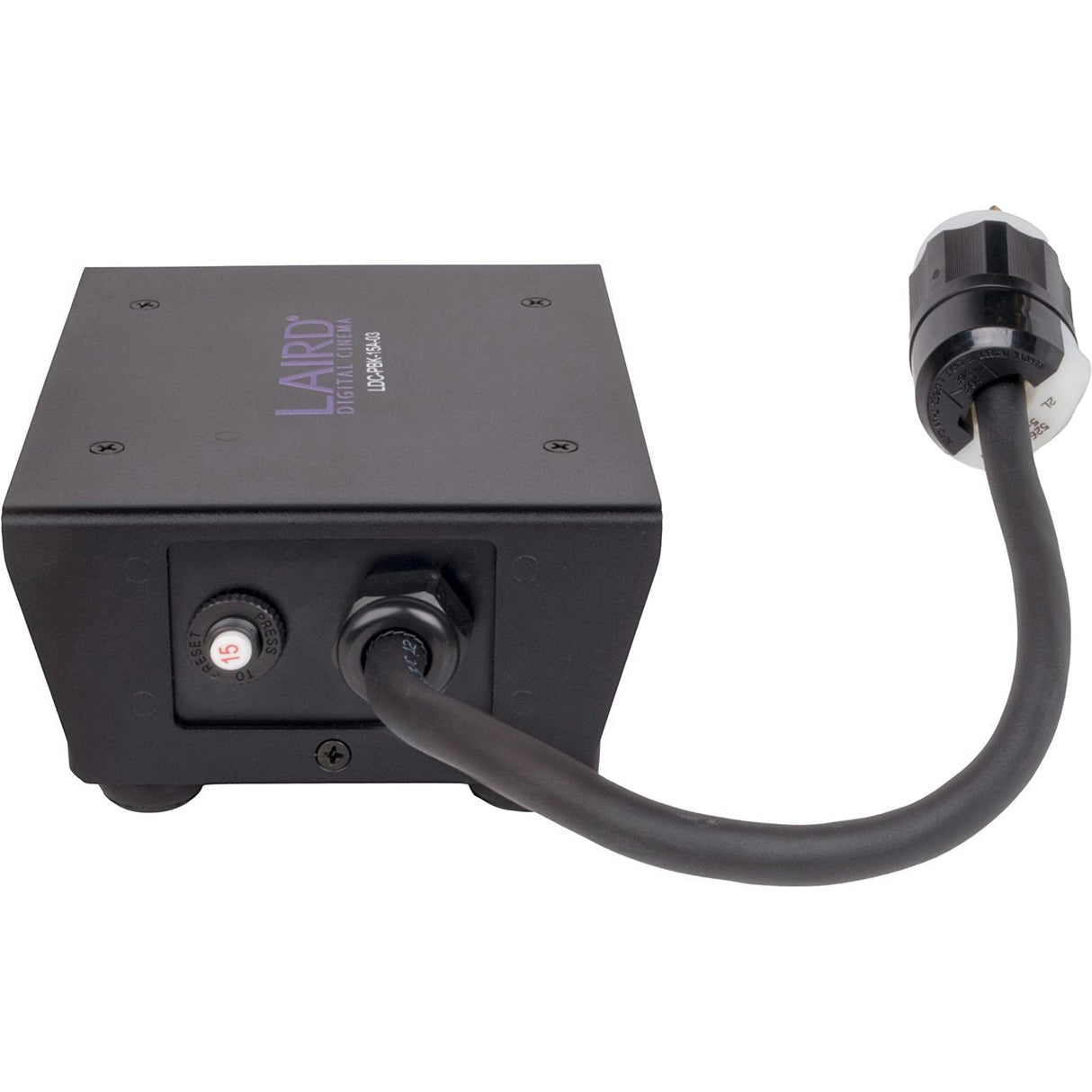

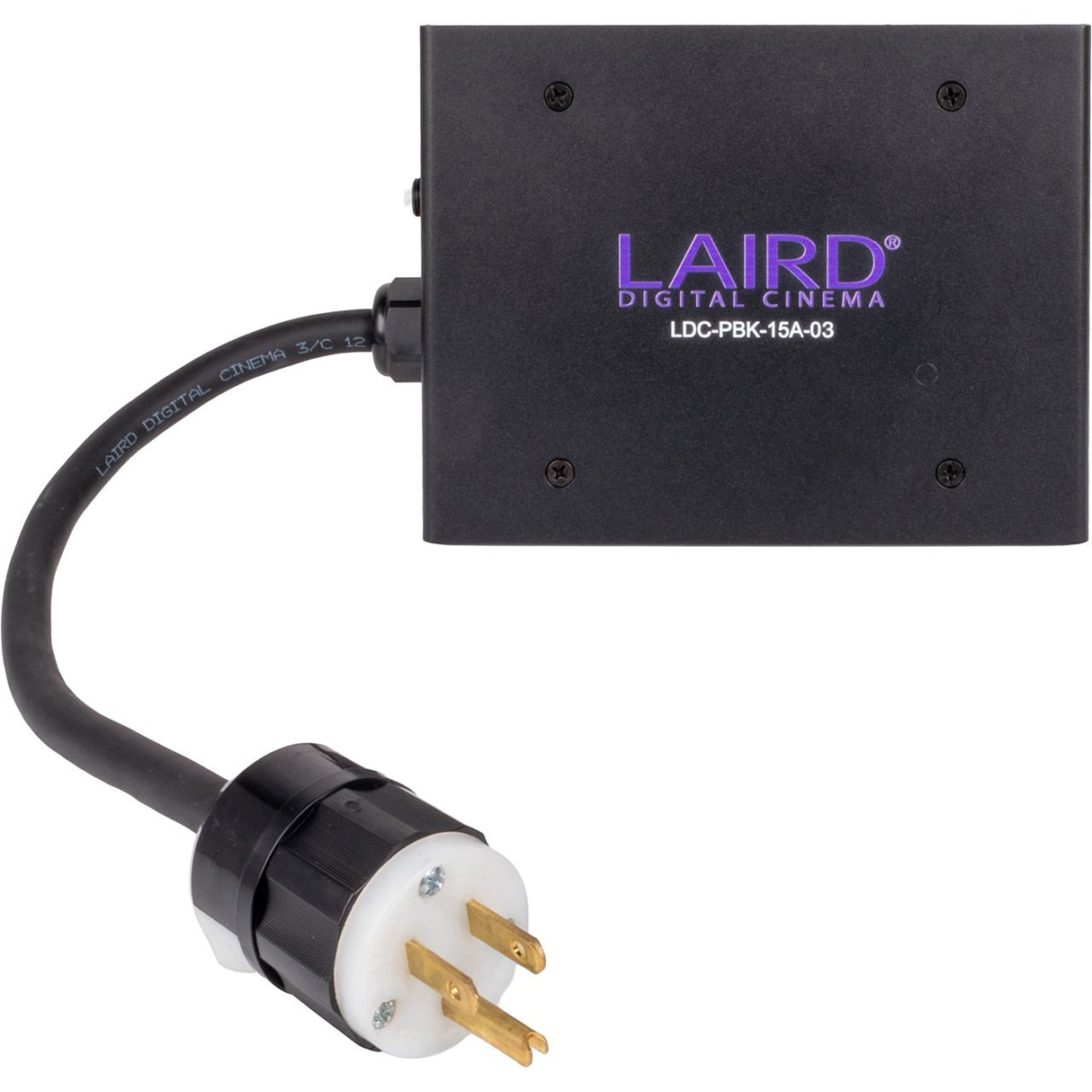

Laird LDC-PBK-15A-03 15A Power Distribution Splitter with Edison Plug and powerCON TRUE1
The Laird LDC-PBK-15A-03 is a 15 amp power distribution splitter engineered for professional audio, lighting, and live event applications. It delivers reliable feed thru power and breakout connectivity in a compact enclosure designed for stage and truss based environments.
This model supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding setups. It uses high quality Neutrik powerCON TRUE1 connectors and Laird PWR-12-3-TP cabling to support consistent electrical performance in demanding production workflows.
An integrated M10 threaded insert allows secure mounting to truss systems and compatible hardware. The LDC-PBK-15A-03 is ideal for touring rigs, fixed installations, and event production systems that require organized and dependable power distribution.
Key Features
- 15 Amp Power Distribution: Rated for 15 amps to support professional production power requirements.
- Feed Thru Design: Enables daisy chaining of multiple power distribution units.
- Mixed Output Configuration: Provides Edison and powerCON TRUE1 outputs for flexible system integration.

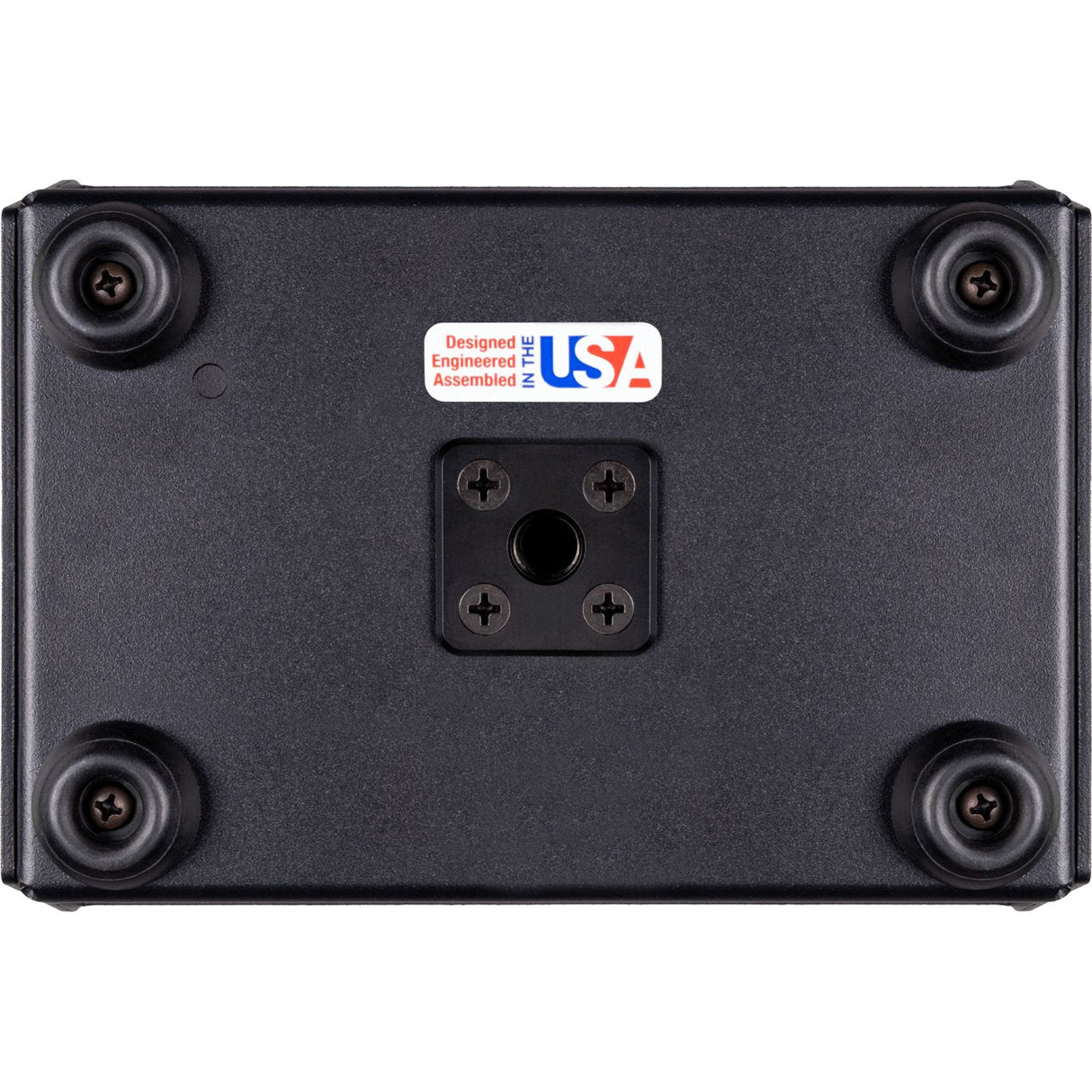

- Truss Mount Ready: Integrated M10 threaded insert supports easy truss mounting.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 15 Amps.
- Input Connector: 1 NEMA 5-15 Edison plug.

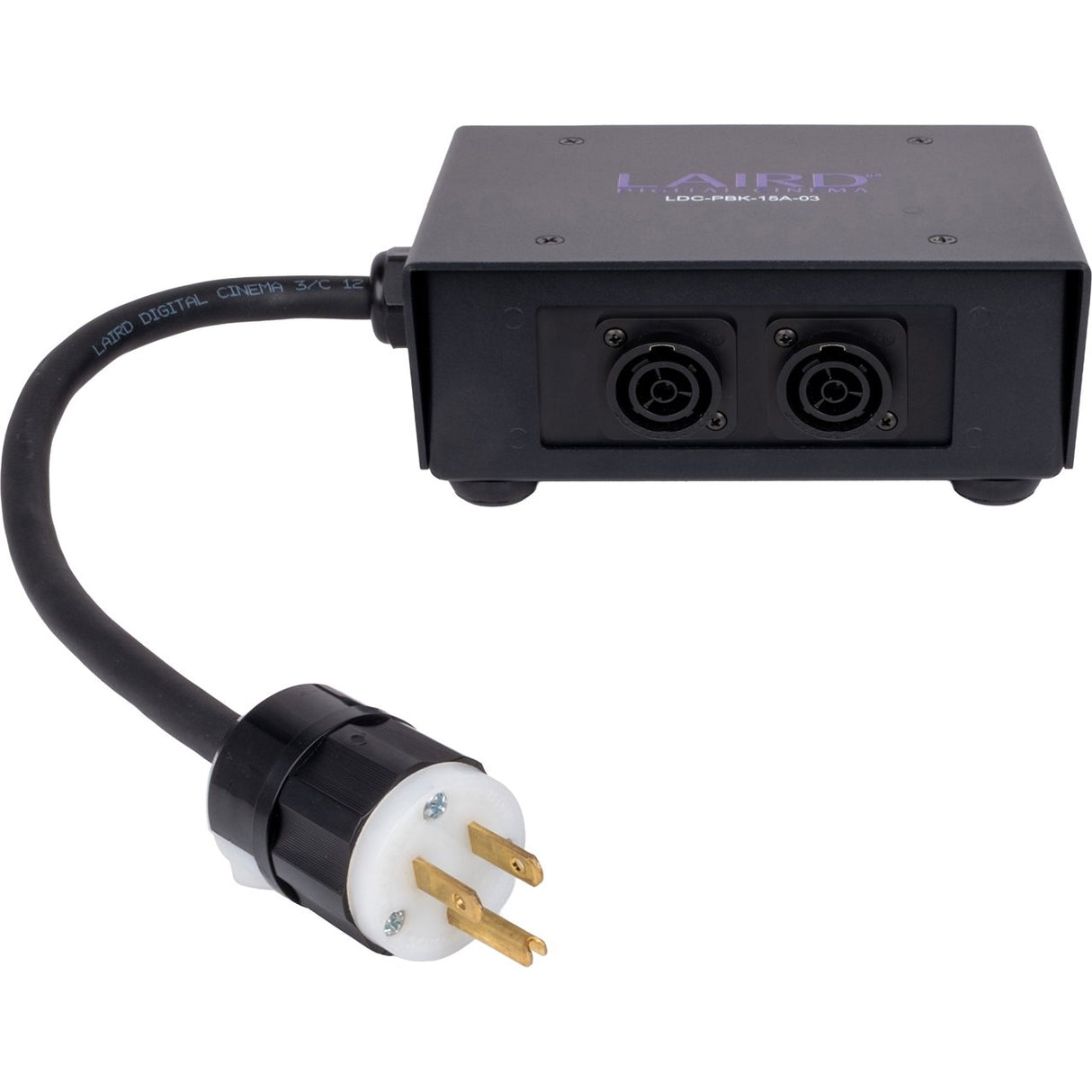

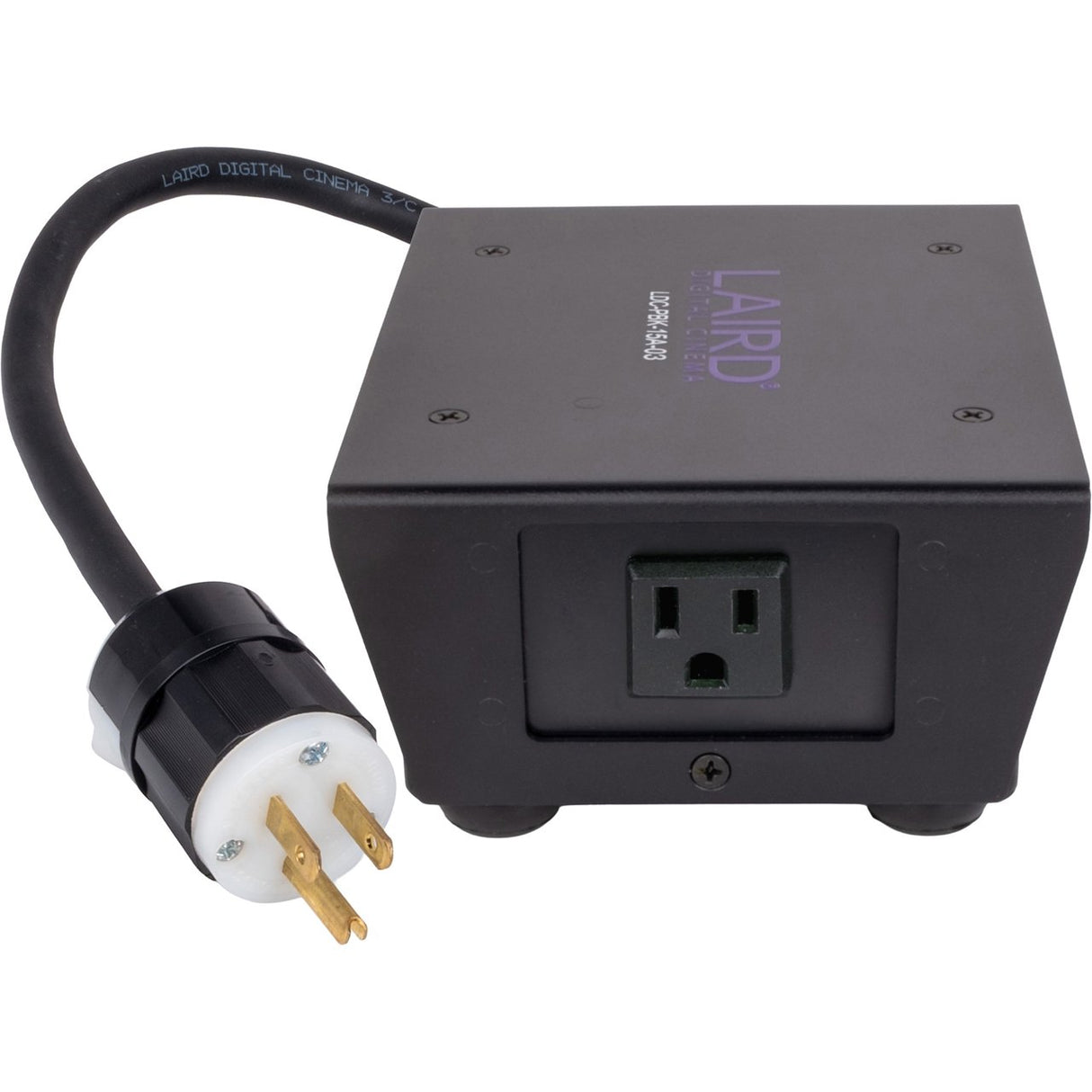

- Output Connectors: 1 NEMA 5-15 Edison receptacle and 4 powerCON TRUE1.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Cable Type: SJOOW.
- Conductors: 3 x 12 AWG.
- Current Carrying Capacity: 25 Amps.
- Neutrik Contact Resistance: 2 mOhm maximum.
- Neutrik Dielectric Strength: 4 kVdc and 2.8 kVac.
- Neutrik Insulation Resistance: Greater than 1 GOhm.
- Neutrik Rated Voltage: 250 V AC.
- Edison Receptacle Voltage Rating: 125 V AC.
- Edison NEMA Rating: 5-15.
