Description

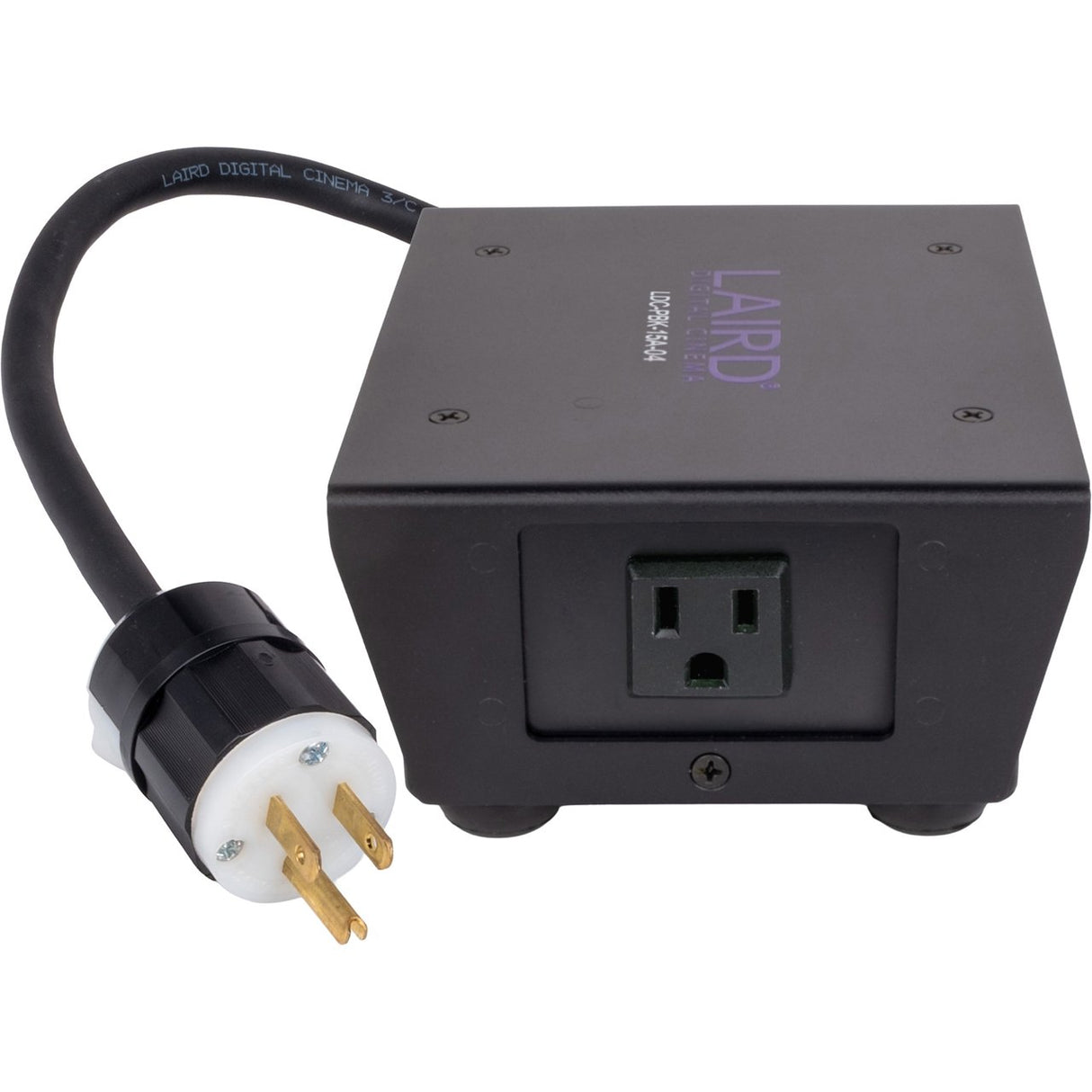

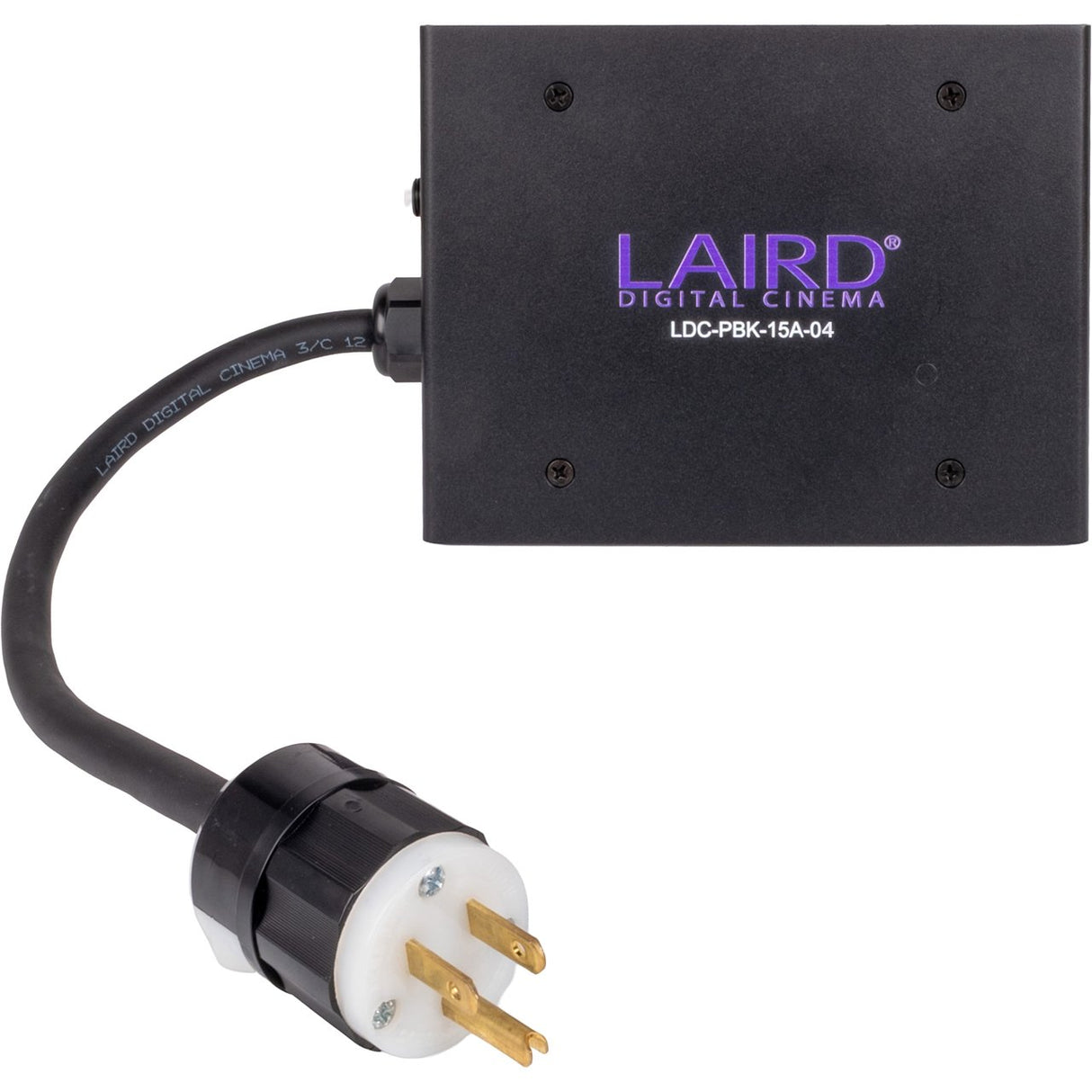

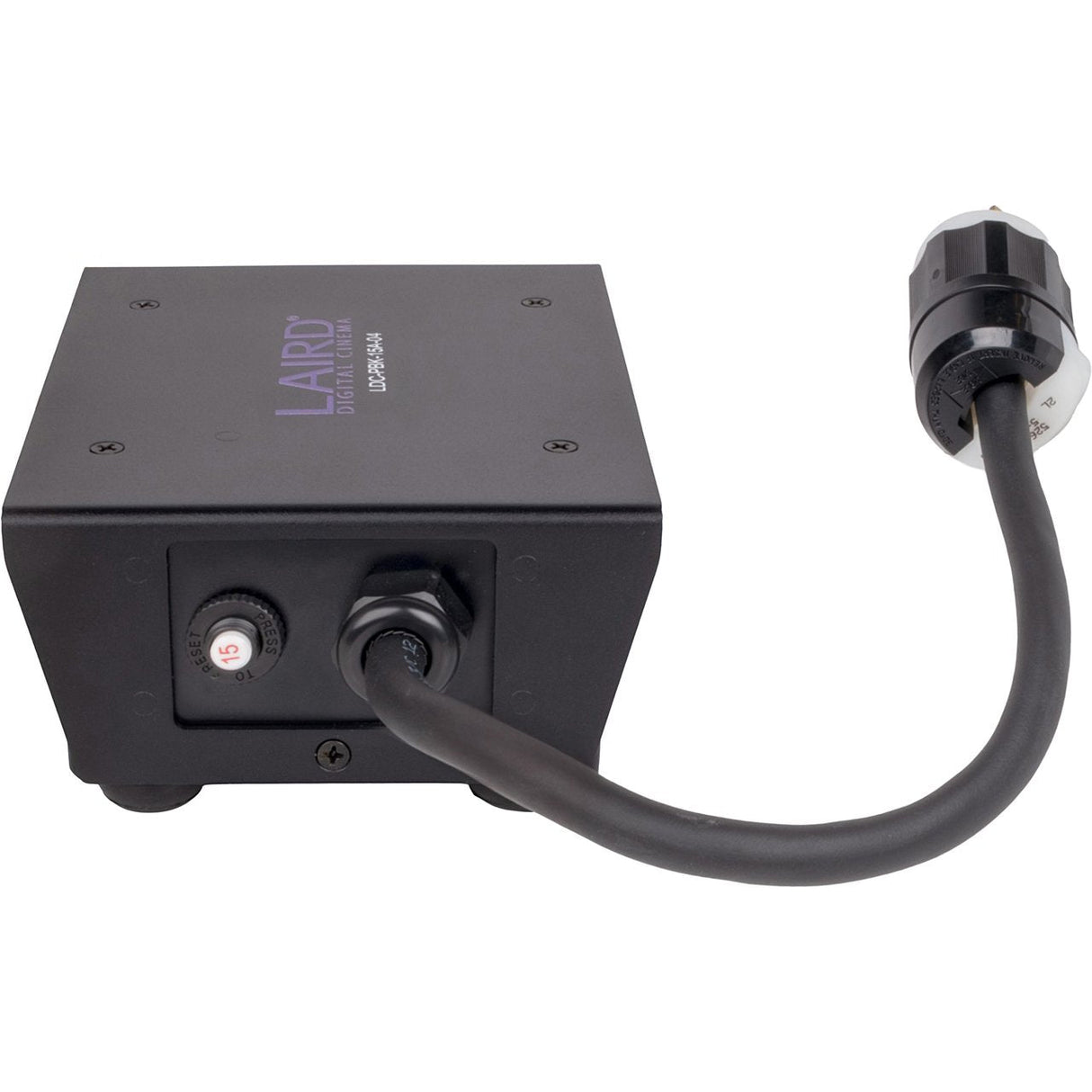

Laird LDC-PBK-15A-04 15A Power Distribution Splitter with Edison Plug
The Laird LDC-PBK-15A-04 is a 15 amp power distribution splitter designed for professional audio, lighting, and live event environments. It provides feed thru power and multiple Edison breakout receptacles in a compact enclosure suited for stage and truss based deployments.
This model supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding systems. It uses Laird PWR-12-3-TP cabling and a rugged aluminum enclosure to support consistent electrical performance in demanding production workflows.
An integrated M10 threaded insert allows secure mounting to truss systems and compatible hardware. The LDC-PBK-15A-04 is ideal for touring rigs, fixed installations, and event production systems that require organized and dependable Edison power distribution.
Key Features
- 15 Amp Power Distribution: Rated for 15 amps to support professional production power requirements.
- Feed Thru Design: Enables daisy chaining of multiple power distribution units.
- Five Edison Outputs: Provides five NEMA 5-15 Edison receptacles for flexible device connections.

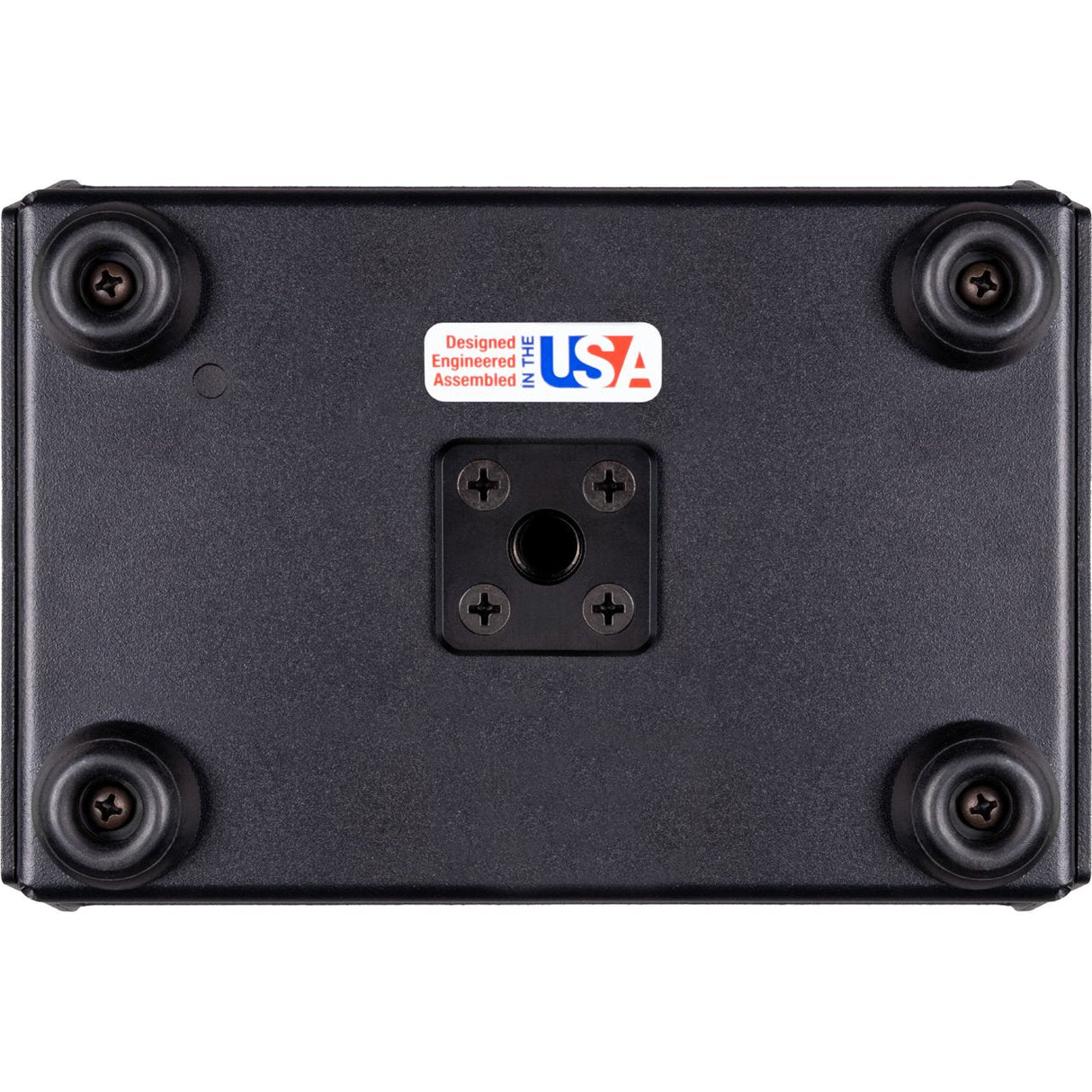

- Truss Mount Ready: Integrated M10 threaded insert supports easy truss mounting.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 15 Amps.
- Input Connector: 1 NEMA 5-15 Edison plug.
- Output Connectors: 5 NEMA 5-15 Edison receptacles.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Cable Type: SJOOW.
- Conductors: 3 x 12 AWG.
- Current Carrying Capacity: 25 Amps.
- Plug Voltage Rating: 125 V AC.
- Plug NEMA Rating: 5-15P.
- Edison Receptacle Voltage Rating: 125 V AC.
- Edison NEMA Rating: 5-15.
