Description

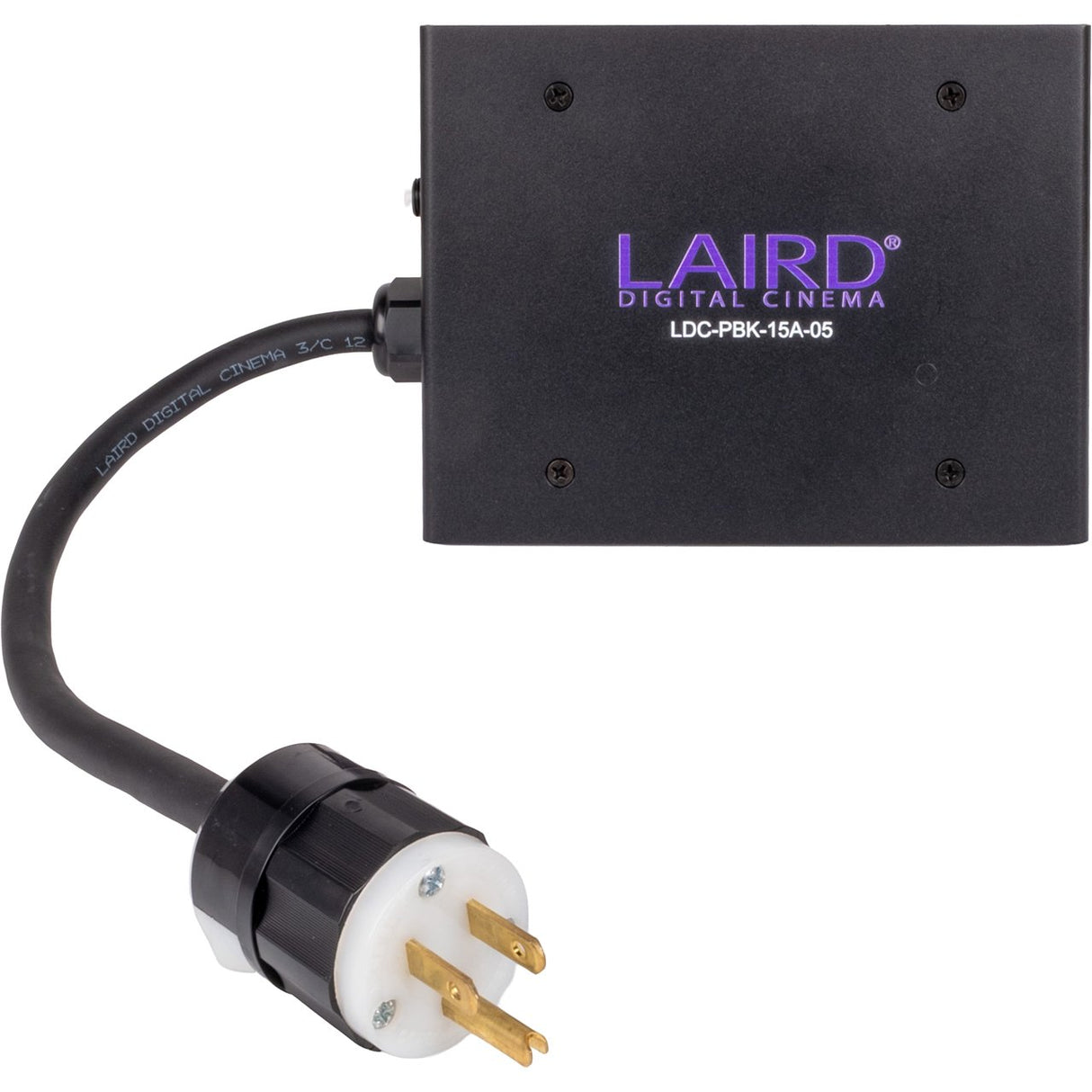

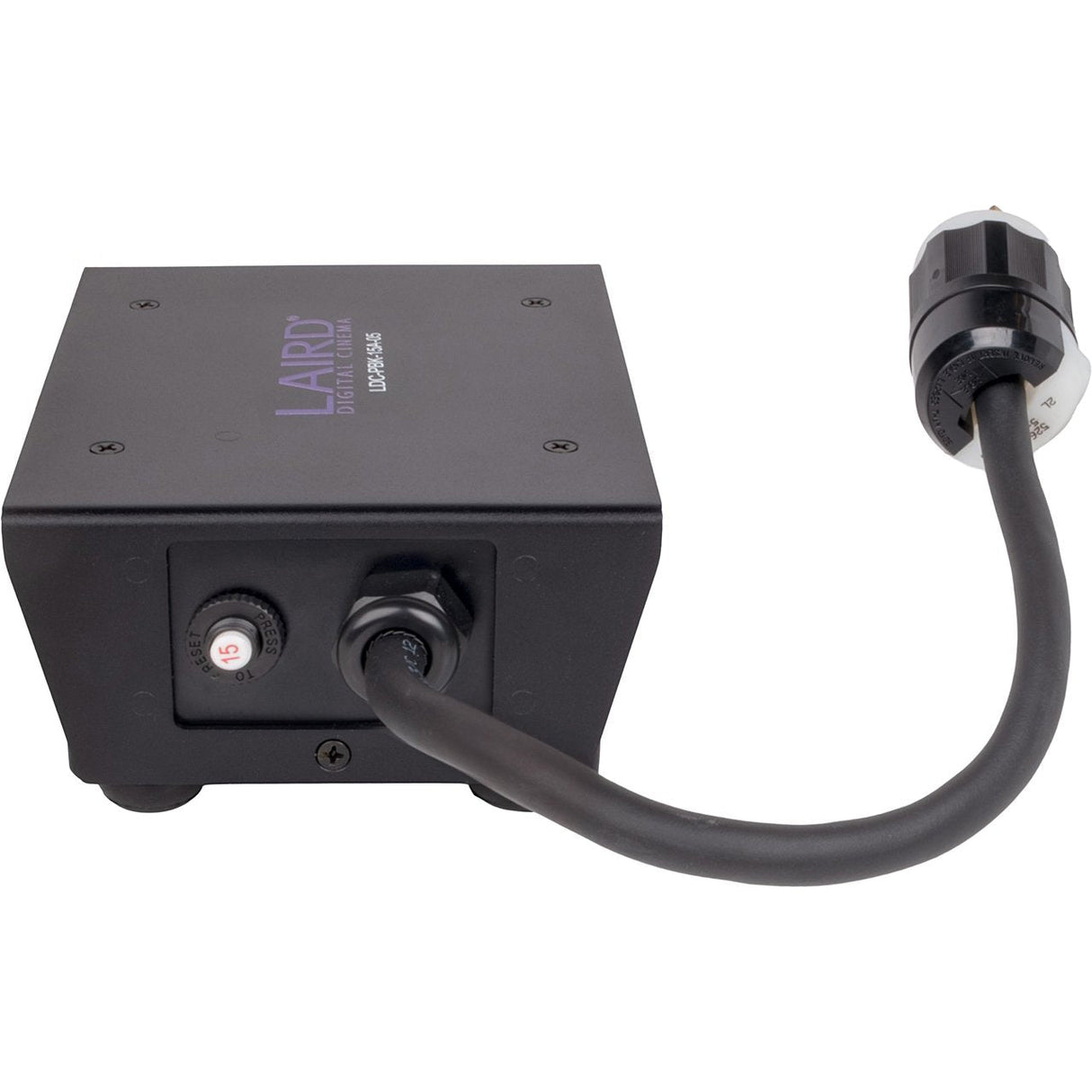

Laird LDC-PBK-15A-05 15A Power Distribution Splitter with Edison Plug and powerCON Type B
The Laird LDC-PBK-15A-05 is a 15 amp power distribution splitter engineered for professional audio, lighting, and live event power management. It provides feed thru power and breakout connectivity in a compact enclosure designed for stage and truss based deployments.
This model supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding setups. It uses high quality Neutrik powerCON Type B connectors and Laird PWR-12-3-TP cabling to support consistent electrical performance in demanding production environments.

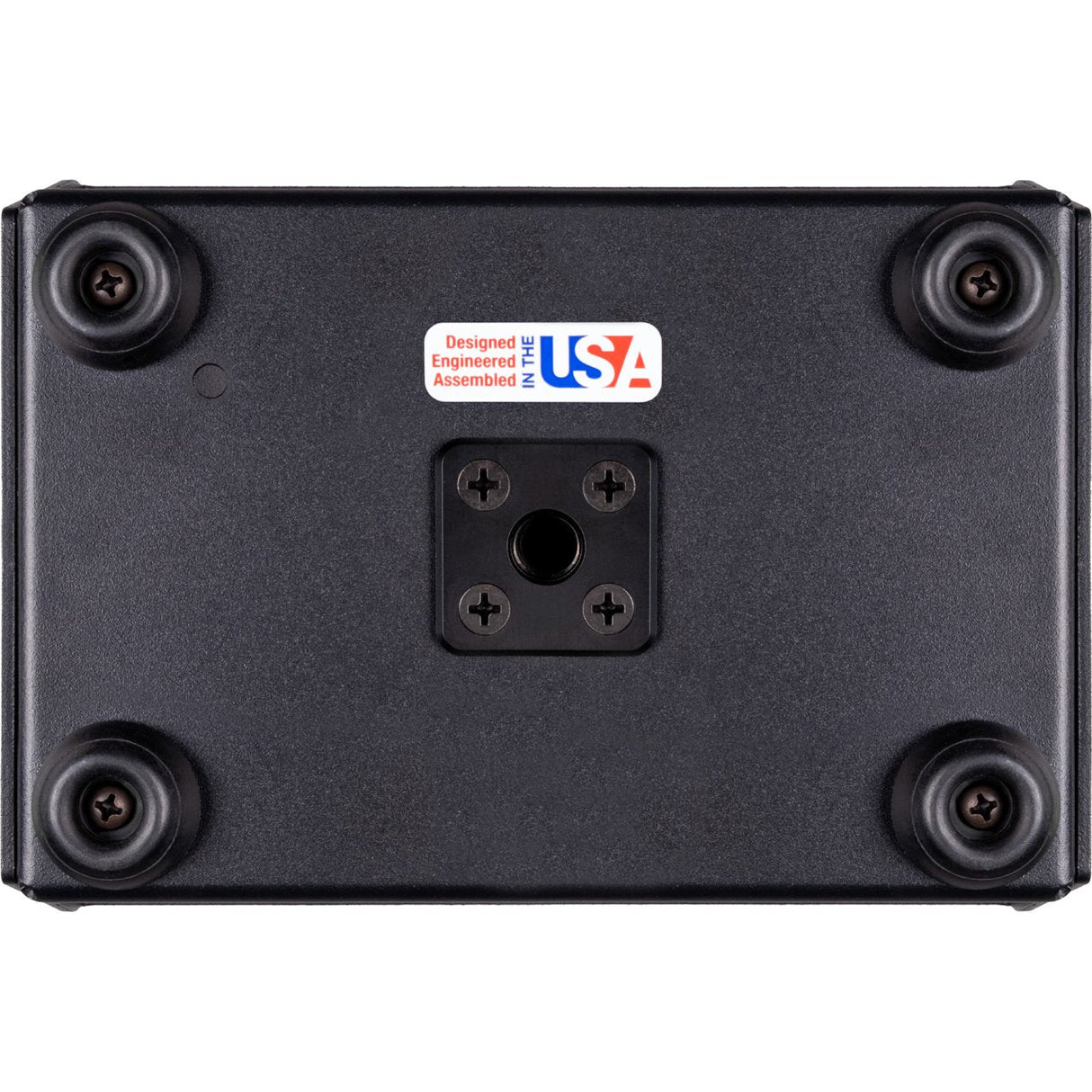

An integrated M10 threaded insert enables secure mounting to truss systems and compatible hardware. The LDC-PBK-15A-05 is ideal for touring rigs, fixed installations, and event production workflows that require reliable mixed connector power distribution.
Key Features
- 15 Amp Power Distribution: Rated for 15 amps to support professional production power requirements.
- Feed Thru Design: Enables daisy chaining of multiple power distribution units.
- Mixed Output Configuration: Provides Edison and powerCON Type B outputs for flexible system integration.
- Truss Mount Ready: Integrated M10 threaded insert supports easy mounting to truss systems.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 15 Amps.
- Input Connector: 1 NEMA 5-15 Edison plug.

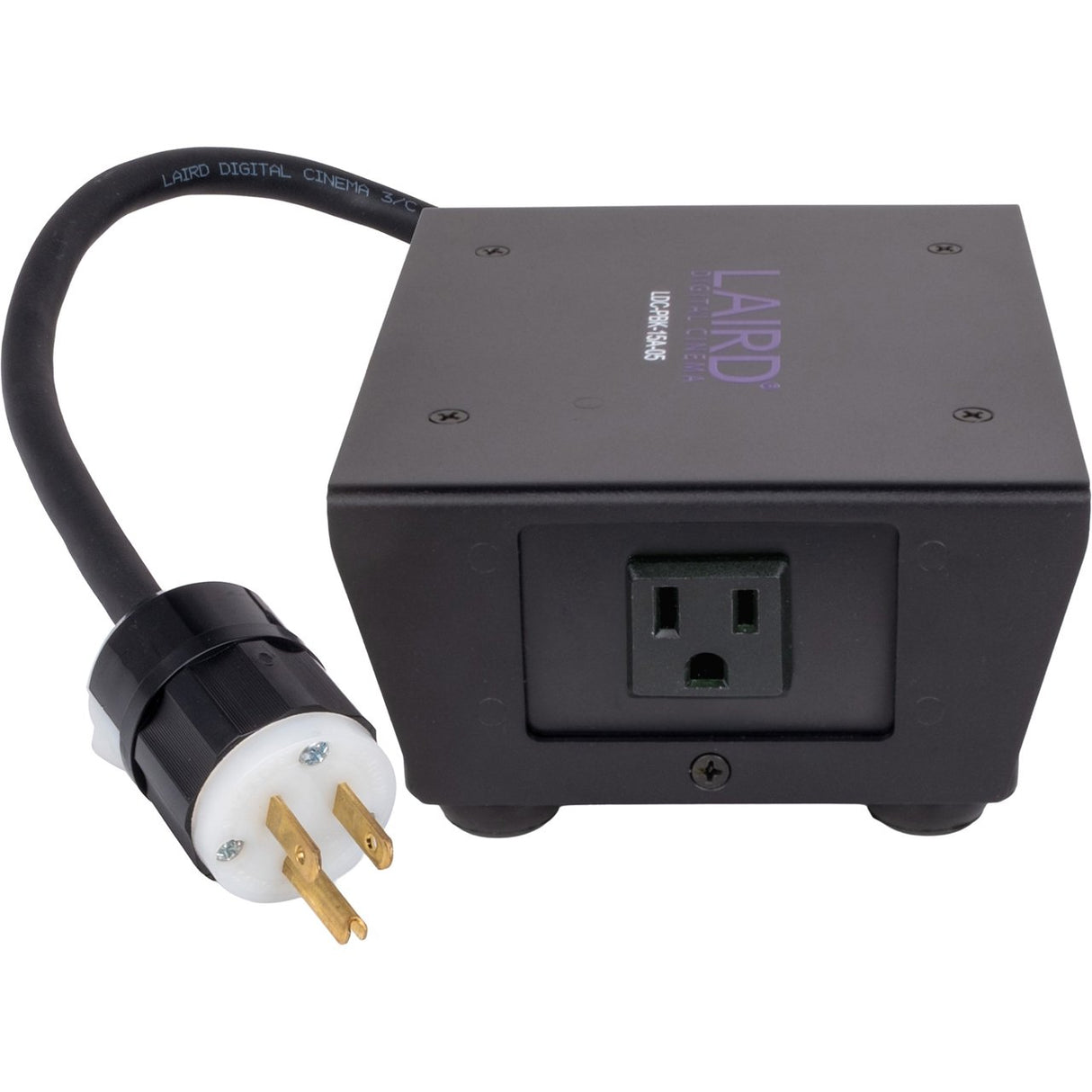

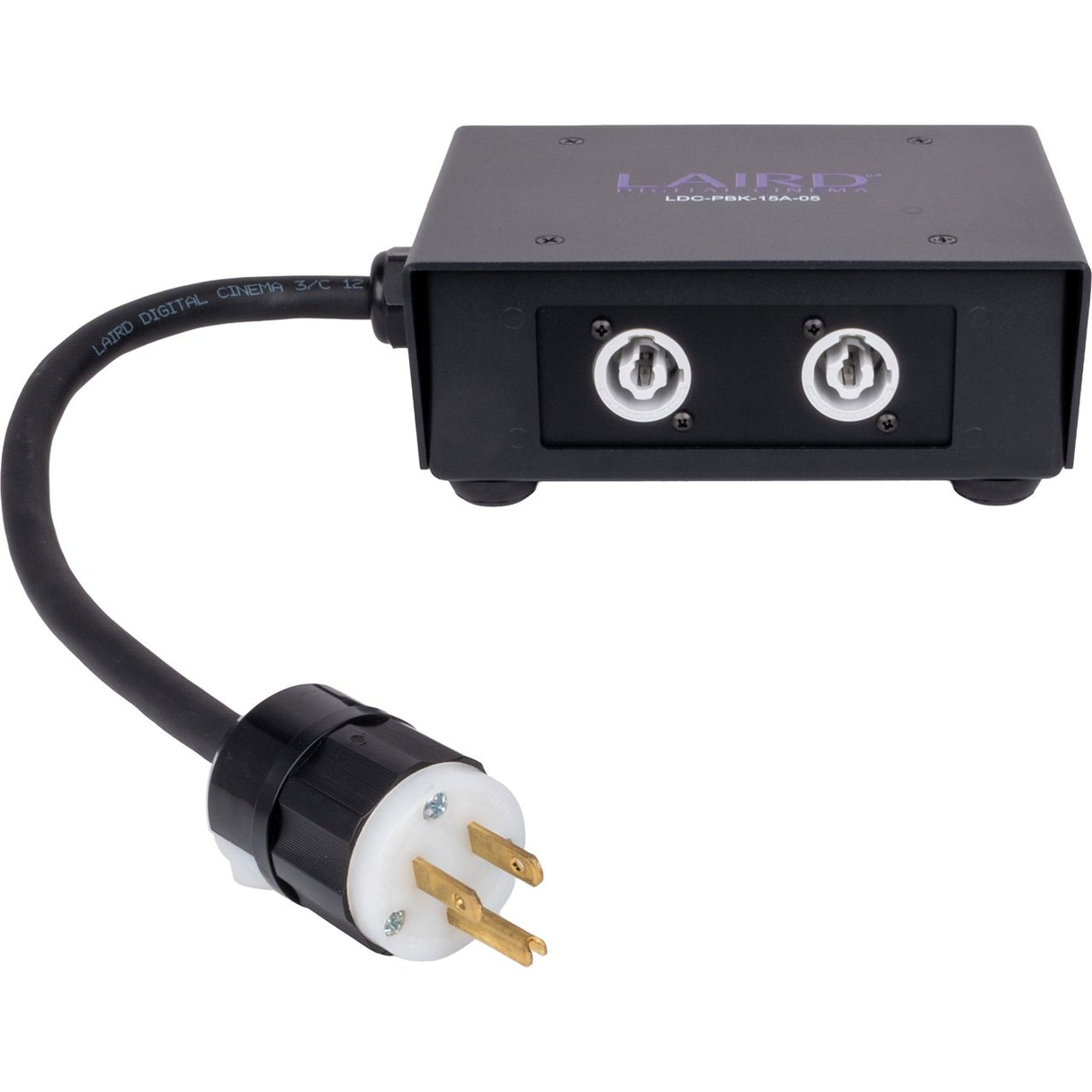

- Output Connectors: 1 NEMA 5-15 Edison receptacle and 4 powerCON Type B.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Cable Type: SJOOW.
- Conductors: 3 x 12 AWG.
- Current Carrying Capacity: 25 Amps.
- Neutrik Contact Resistance: 2 mOhm maximum.
- Neutrik Dielectric Strength: 4 kVdc and 2.8 kVac.
- Neutrik Insulation Resistance: Greater than 1 GOhm.
- Neutrik Rated Voltage: 250 V AC.
- Plug Voltage Rating: 125 V AC.
- Plug NEMA Rating: 5-15P.
