Description

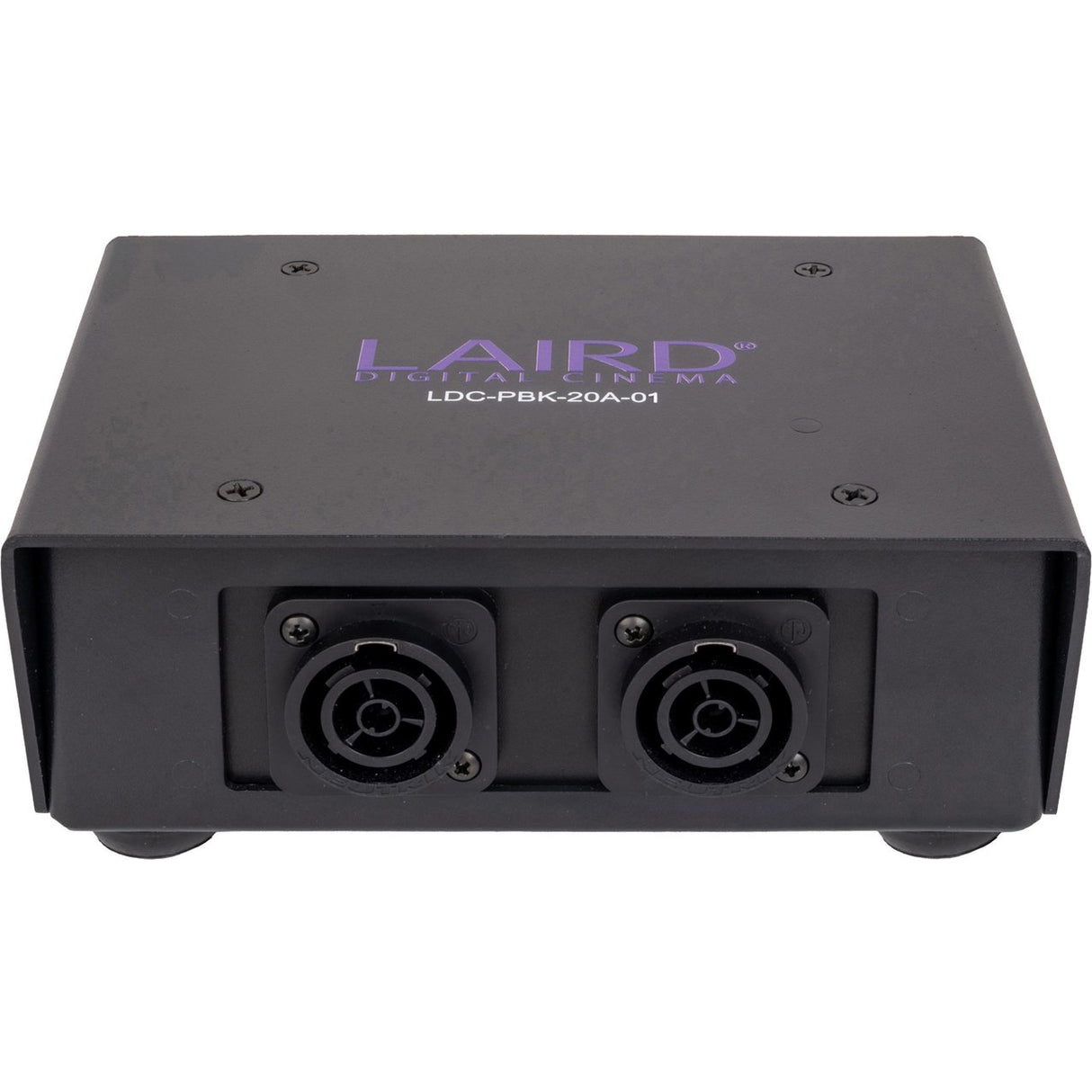

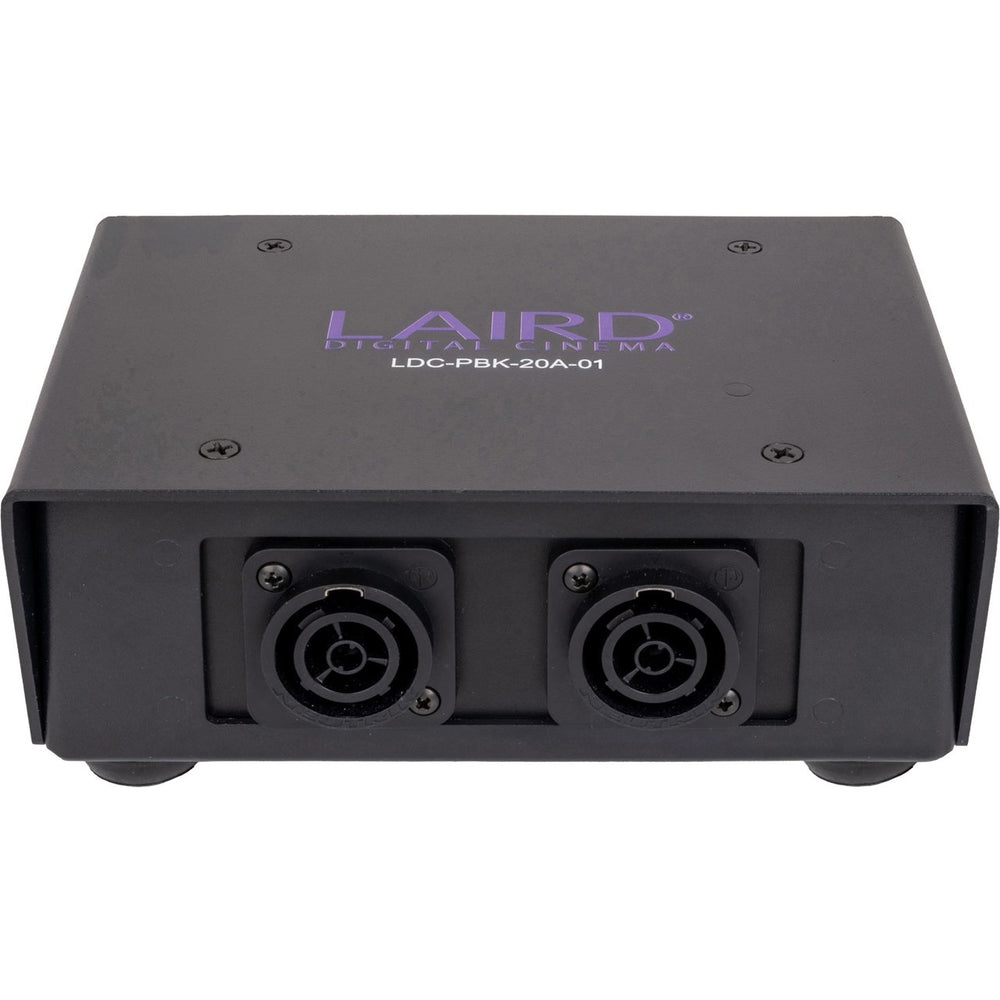

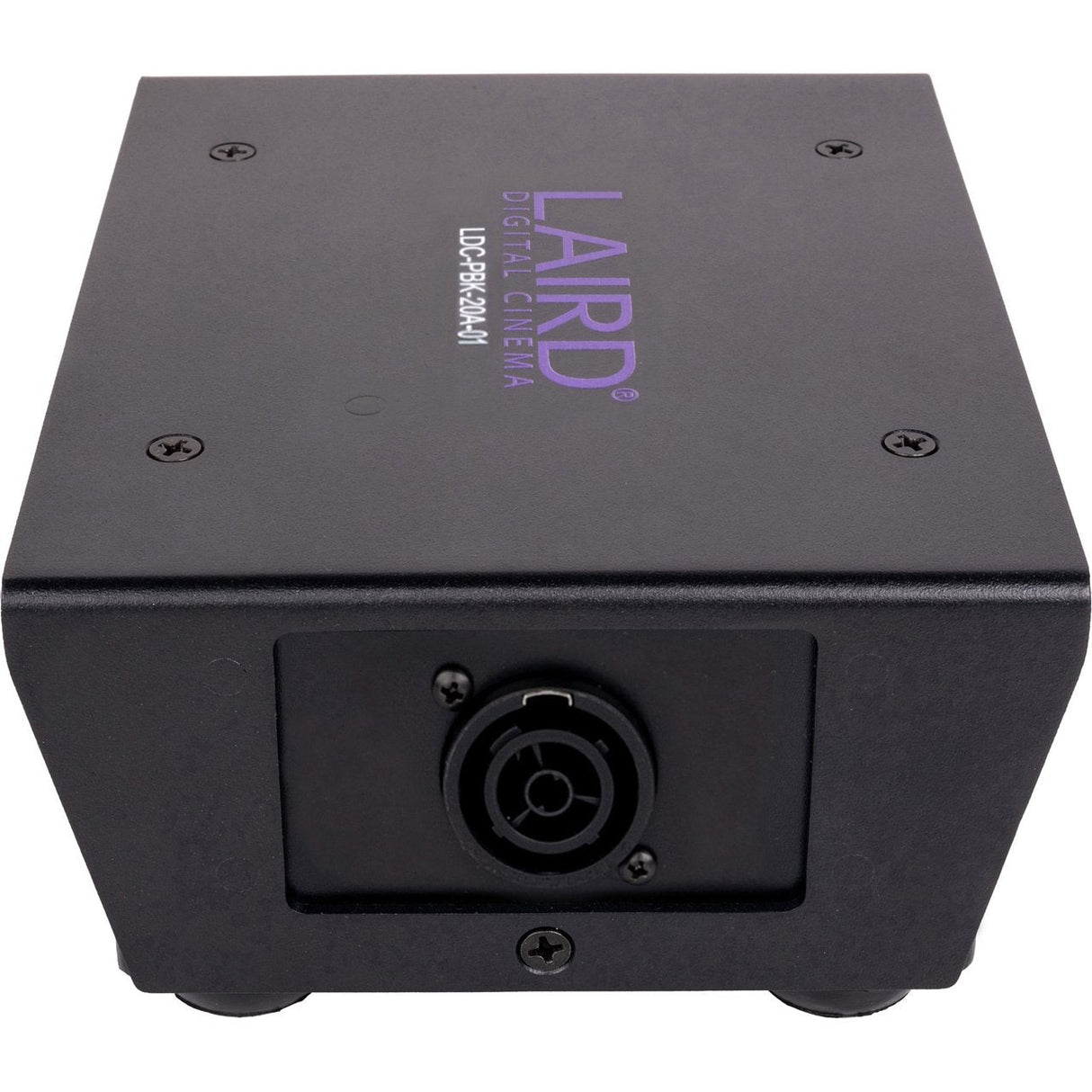

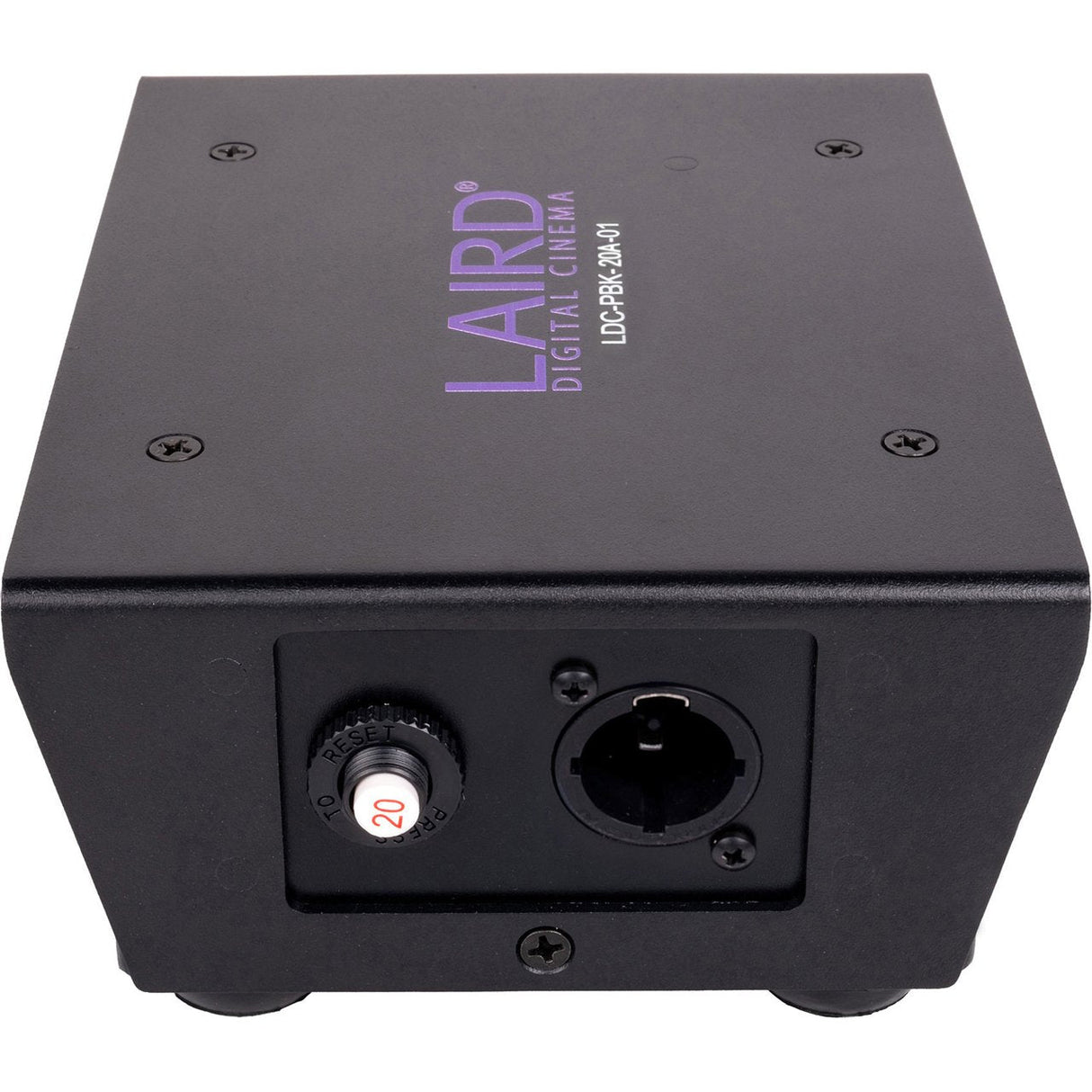

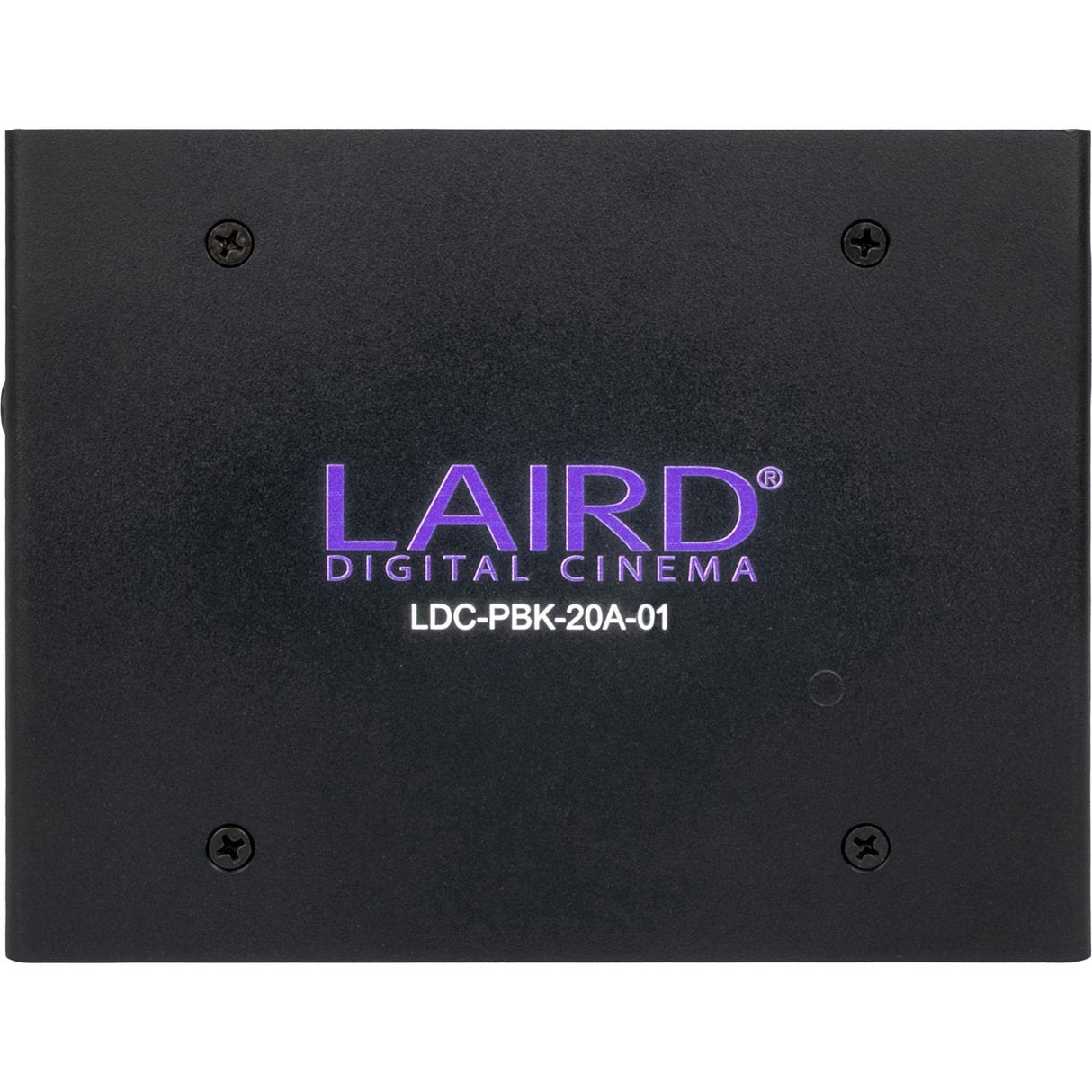

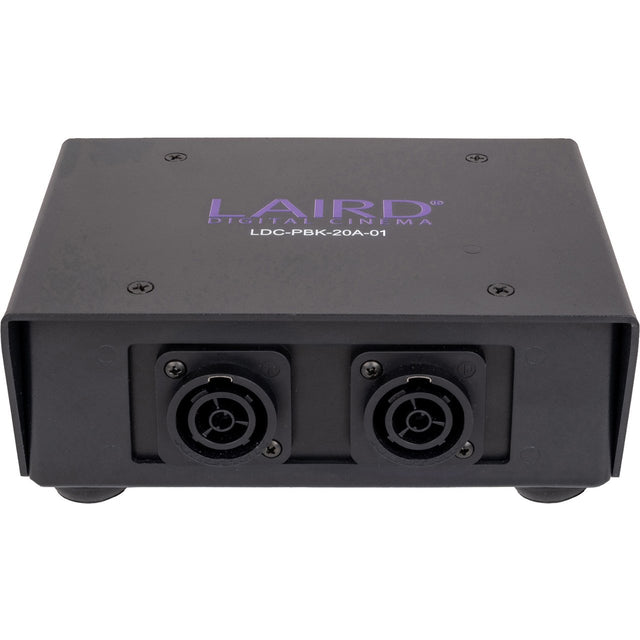

Laird LDC-PBK-20A-01 20A Power Distribution Splitter with powerCON TRUE1
The Laird LDC-PBK-20A-01 is a 20 amp power distribution splitter designed for professional audio, lighting, and live event power management. It provides feed thru power and multiple locking outputs in a compact enclosure optimized for stage and truss based deployments.
This model supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding setups. High quality Neutrik powerCON TRUE1 connectors and a rugged aluminum enclosure are used to ensure consistent performance in demanding production environments.
An integrated M10 threaded insert enables flexible mounting to truss systems and related equipment. The LDC-PBK-20A-01 is ideal for touring rigs, fixed installations, and event production workflows that require reliable high current power distribution.
Key Features
- 20 Amp Power Distribution: Rated for 20 amps to support higher current professional production systems.
- Feed Thru Design: Enables daisy chaining of multiple power distribution units.
- powerCON TRUE1 Connectivity: Uses Neutrik powerCON TRUE1 connectors for secure locking power connections.

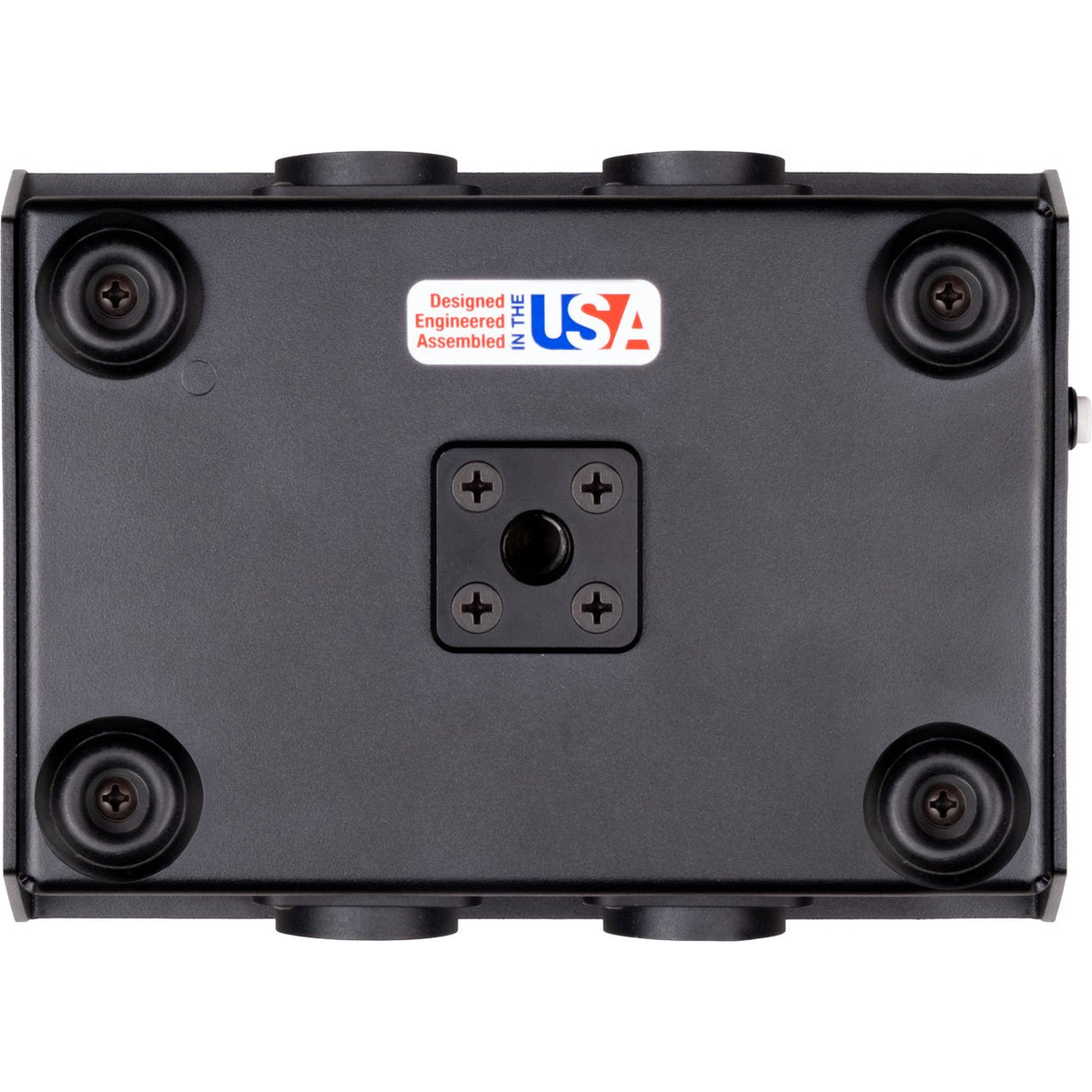

- Truss Mount Ready: Integrated M10 threaded insert supports easy mounting to truss systems.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 20 Amps.
- Input Connector: 1 powerCON TRUE1.
- Output Connectors: 5 powerCON TRUE1.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Neutrik Contact Resistance: 2 mOhm.
- Neutrik Dielectric Strength: 4 kVdc and 2.8 kVac.
- Neutrik Insulation Resistance: Greater than 1 GOhm.
- Neutrik Rated Amperage: 20 Amps.
- Neutrik Rated Voltage: 250 V AC.
