Description

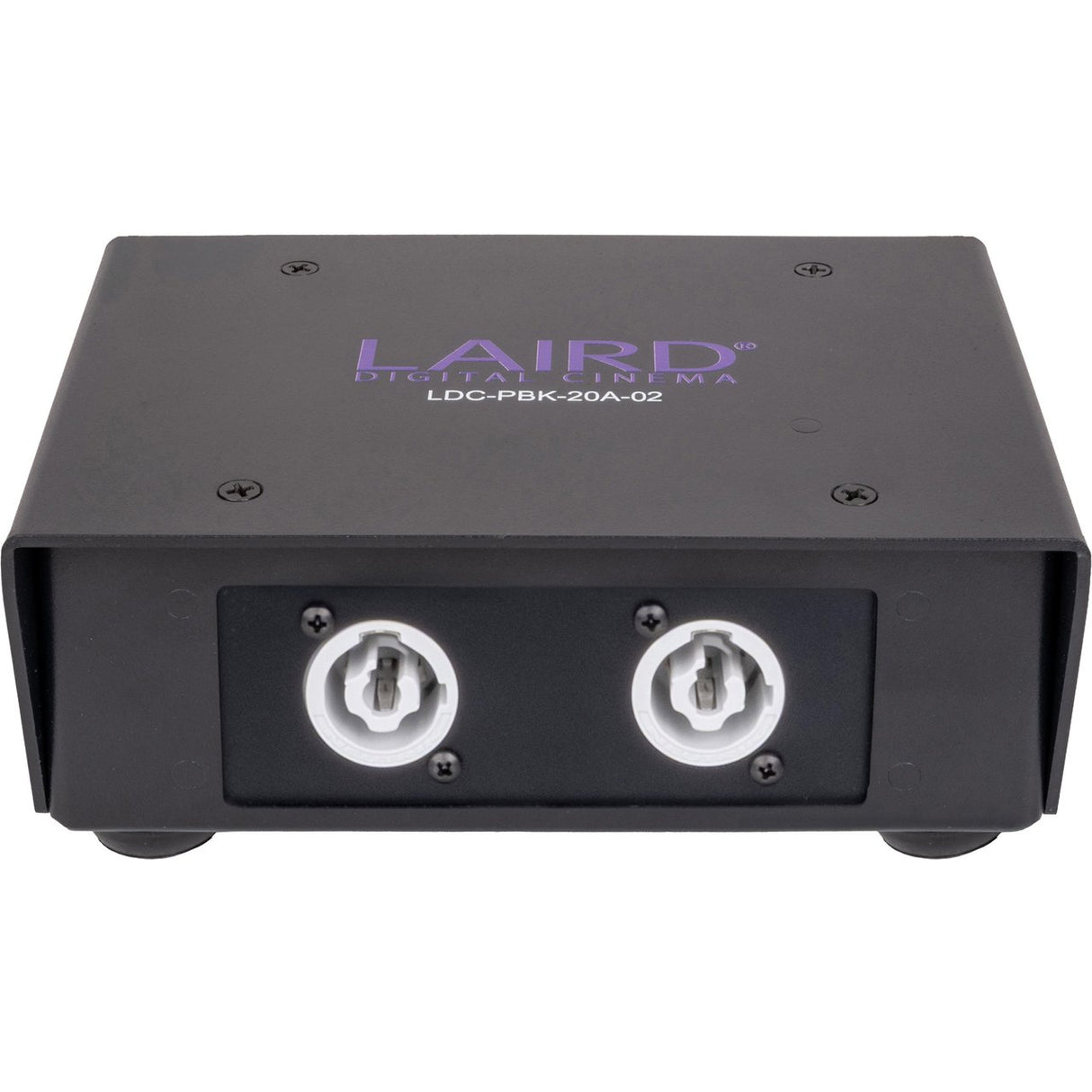

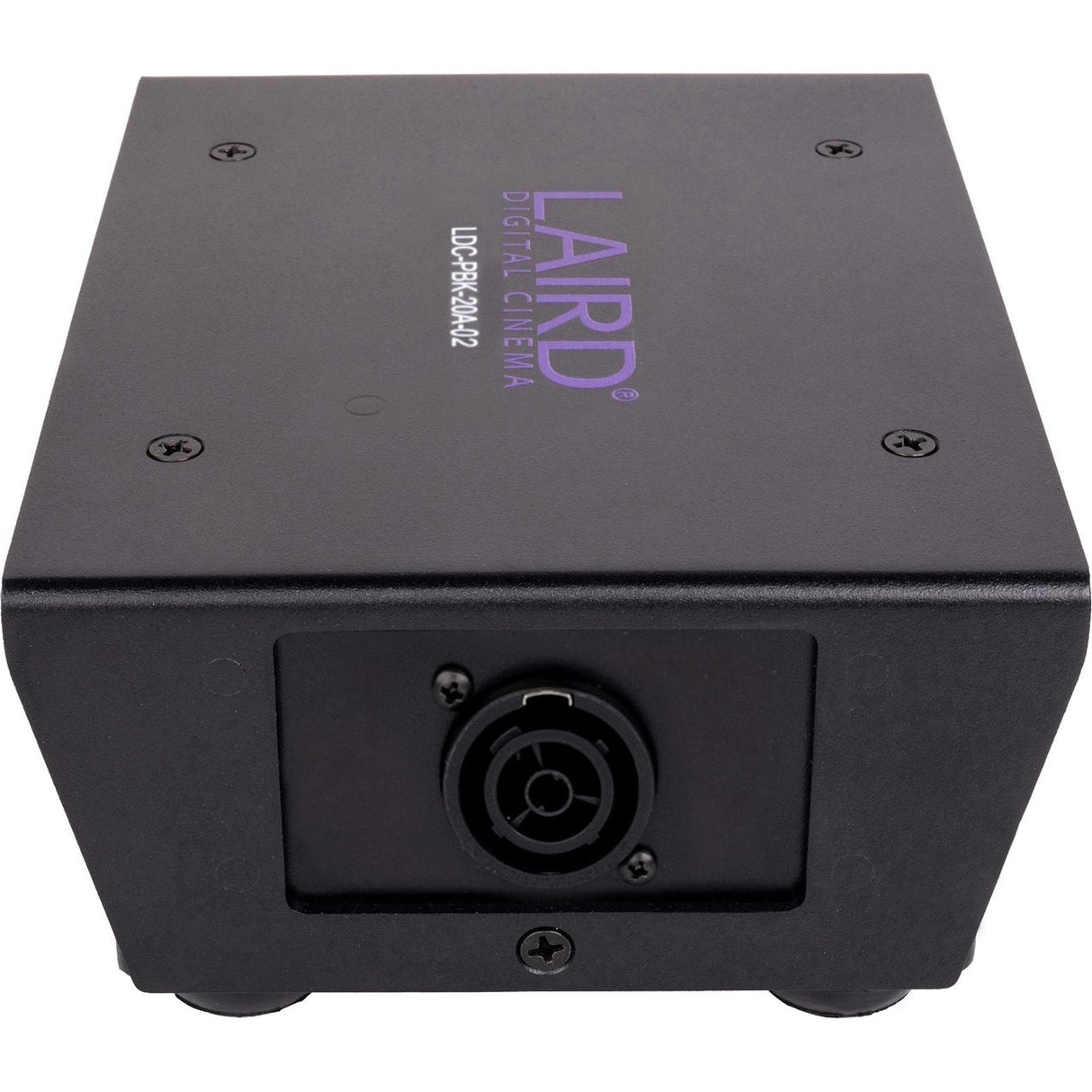

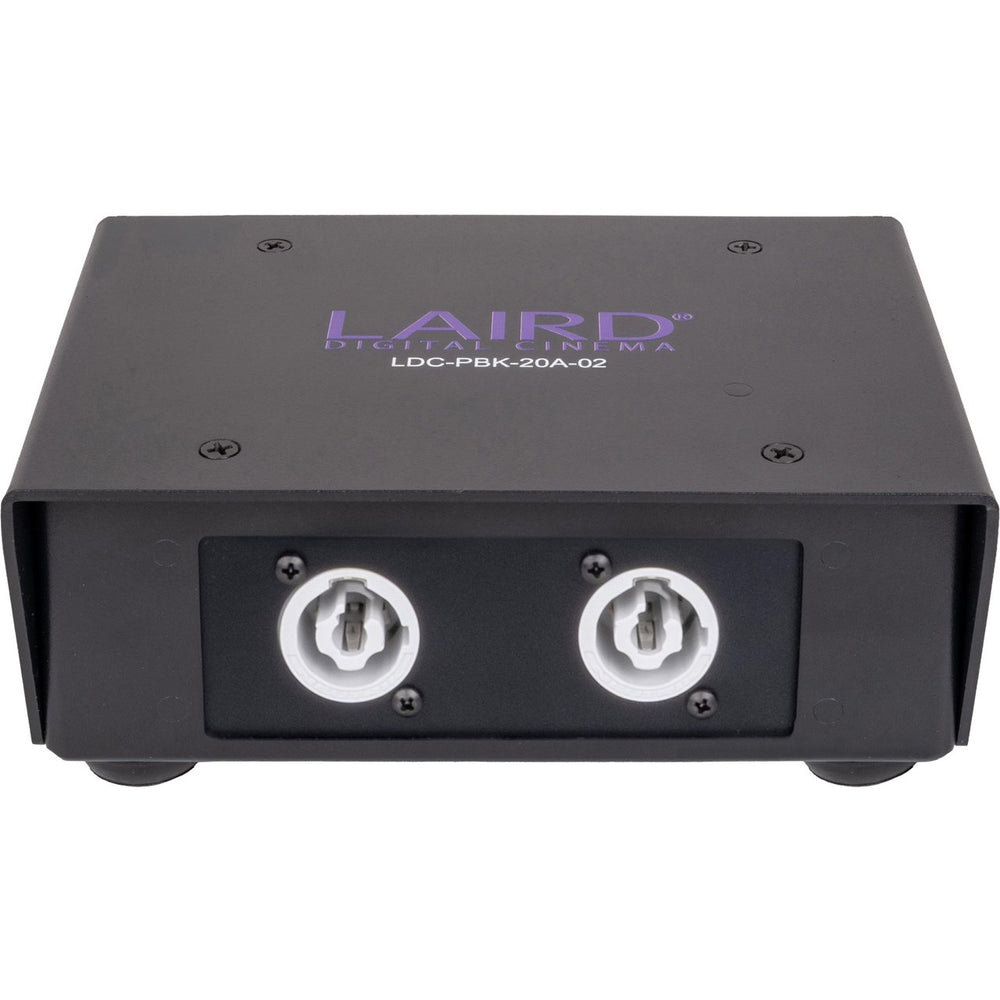

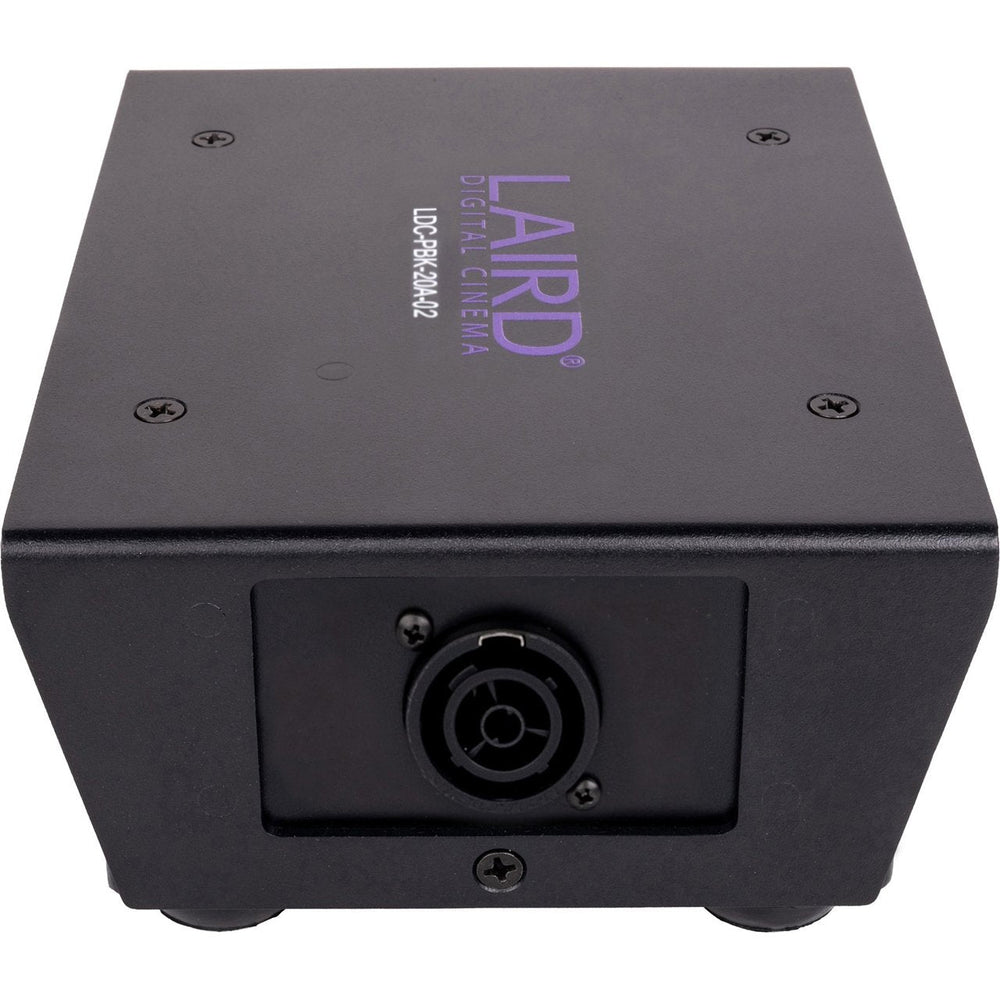

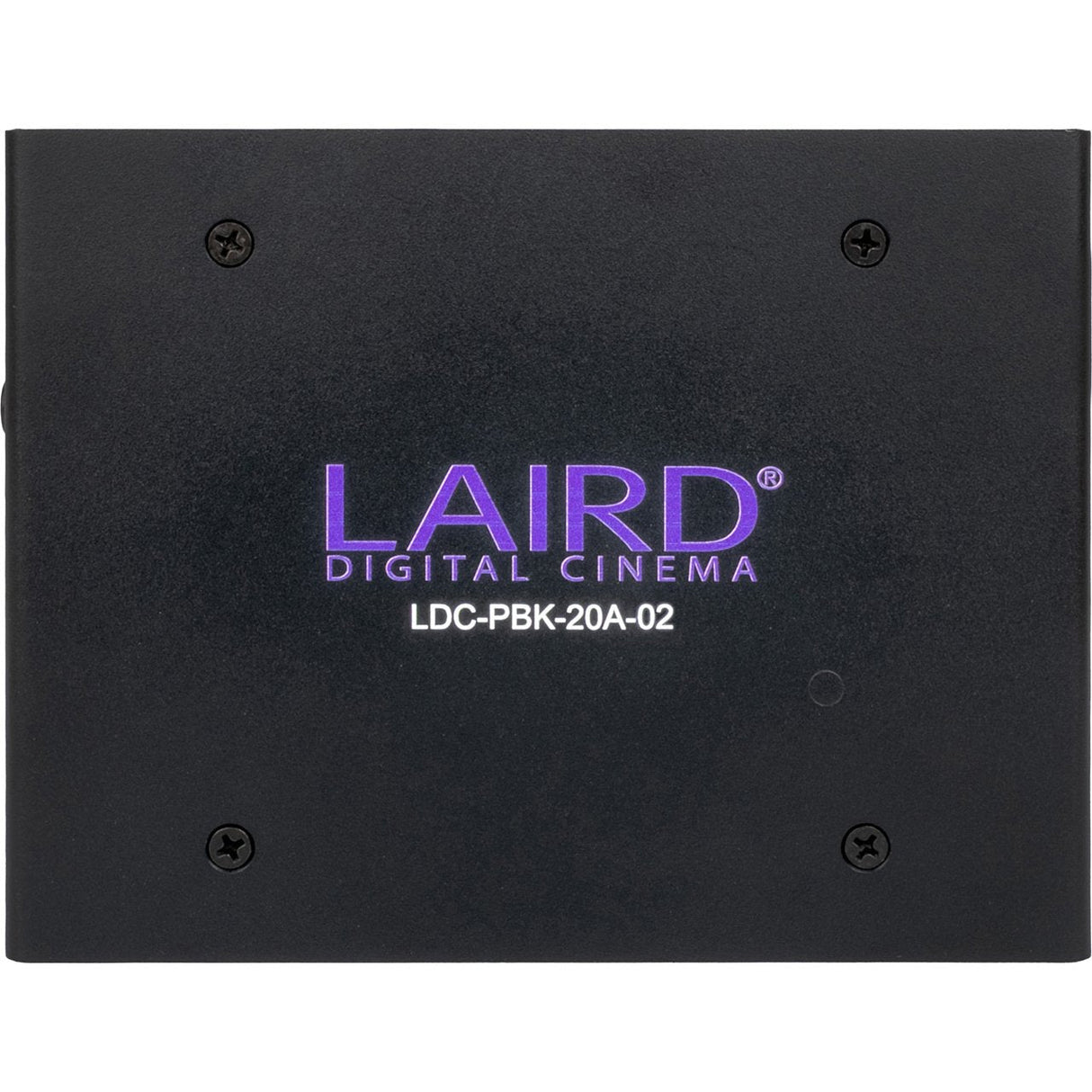

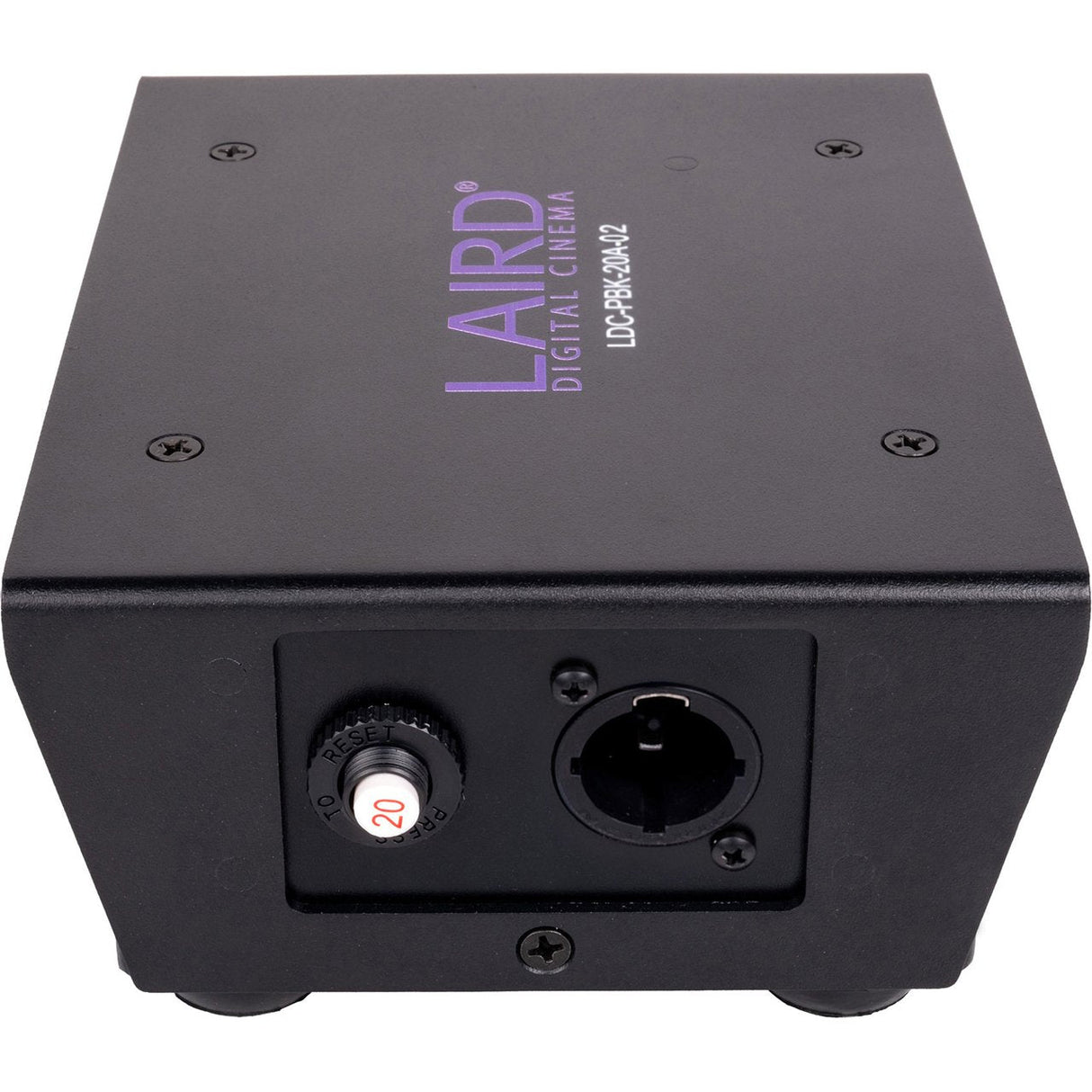

Laird LDC-PBK-20A-02 20A Power Distribution Splitter with powerCON TRUE1 and Type B
The Laird LDC-PBK-20A-02 is a 20 amp power distribution splitter engineered for professional audio, lighting, and live event power management. It delivers feed thru power and breakout connectivity in a compact enclosure designed for stage and truss based deployments.
This model supports daisy chaining of multiple power distribution boxes to maintain uninterrupted power delivery across expanding systems. High quality Neutrik powerCON connectors and a rugged aluminum enclosure are used to ensure consistent performance in demanding production environments.

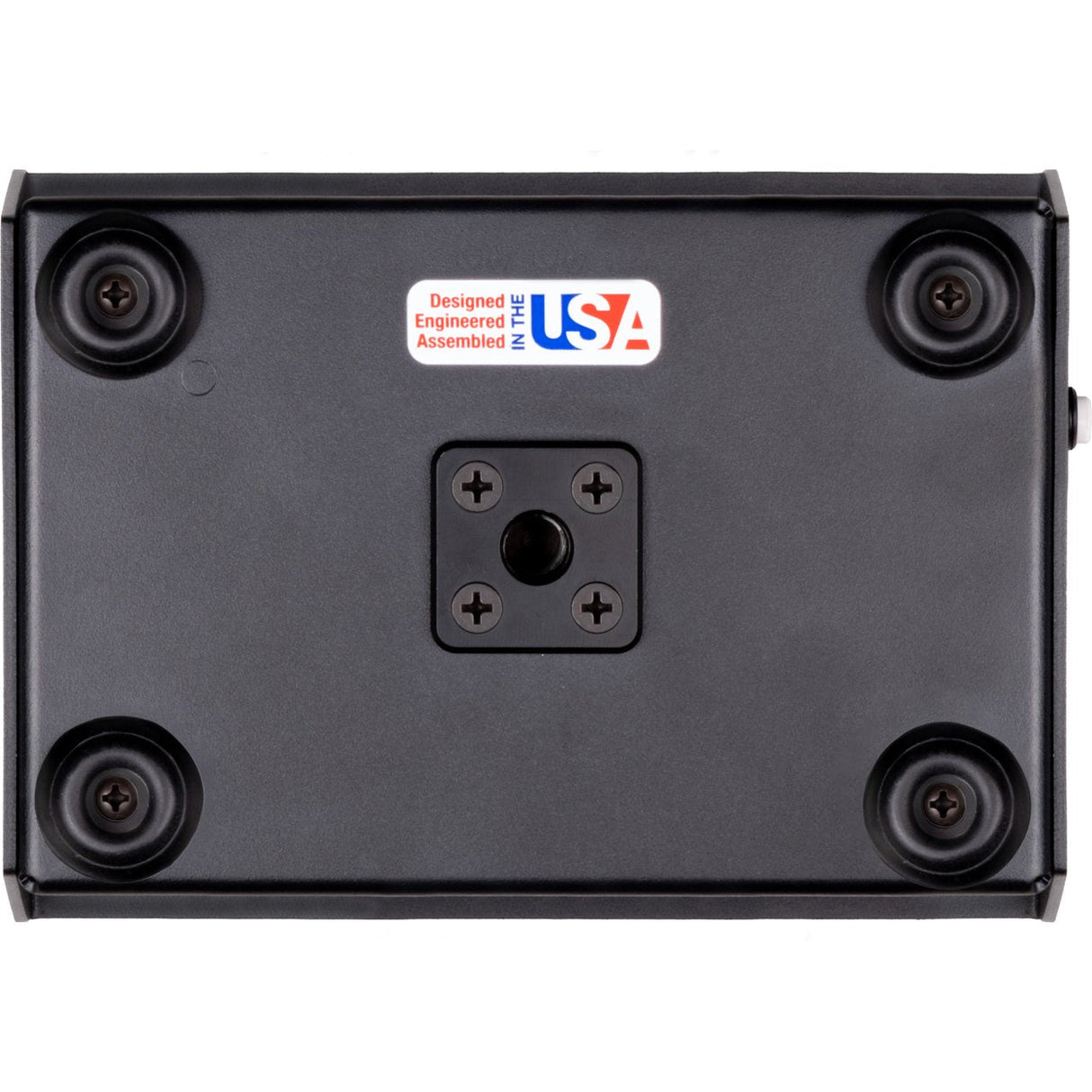

An integrated M10 threaded insert allows secure mounting to truss systems and compatible hardware. The LDC-PBK-20A-02 is ideal for touring rigs, fixed installations, and event production workflows that require reliable high current power distribution.
Key Features
- 20 Amp Power Distribution: Rated for 20 amps to support higher current professional production systems.
- Feed Thru Design: Enables daisy chaining of multiple power distribution units.
- Mixed Output Configuration: Provides powerCON TRUE1 and powerCON Type B outputs for flexible system integration.
- Truss Mount Ready: Integrated M10 threaded insert supports easy mounting to truss systems.
- Rugged Construction: Aluminum enclosure designed for professional field use.
Technical Specifications
- Rated Amperage: 20 Amps.
- Input Connector: 1 powerCON TRUE1.
- Output Connectors: 1 powerCON TRUE1 and 4 powerCON Type B.
- Enclosure Dimensions: 6.5 x 4.875 x 2.625 in.
- Neutrik Contact Resistance: 2 mOhm.
- Neutrik Dielectric Strength: 4 kVdc and 2.8 kVac.
- Neutrik Insulation Resistance: Greater than 1 GOhm.
- Neutrik Rated Amperage: 20 Amps.
- Neutrik Rated Voltage: 250 V AC.
