Description

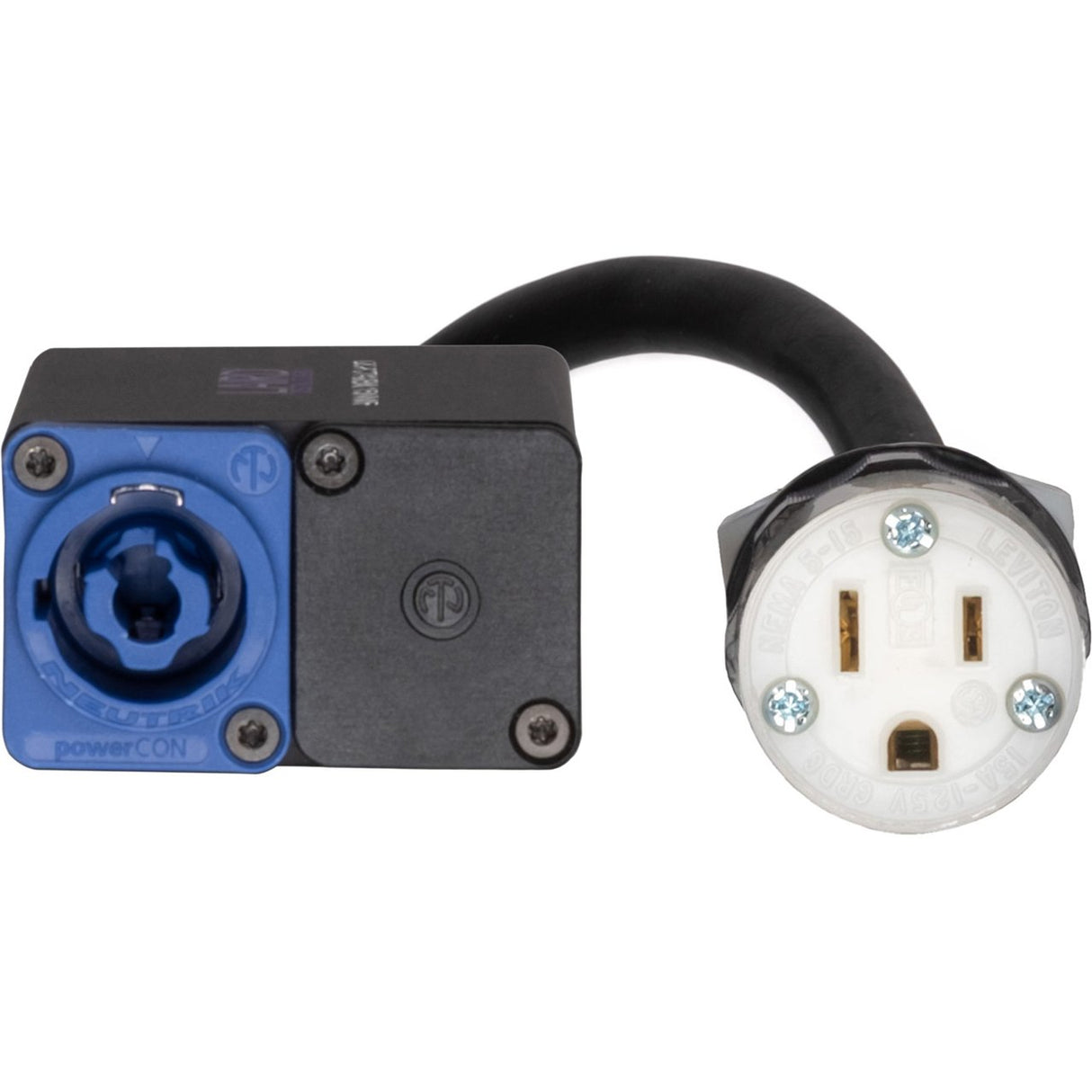

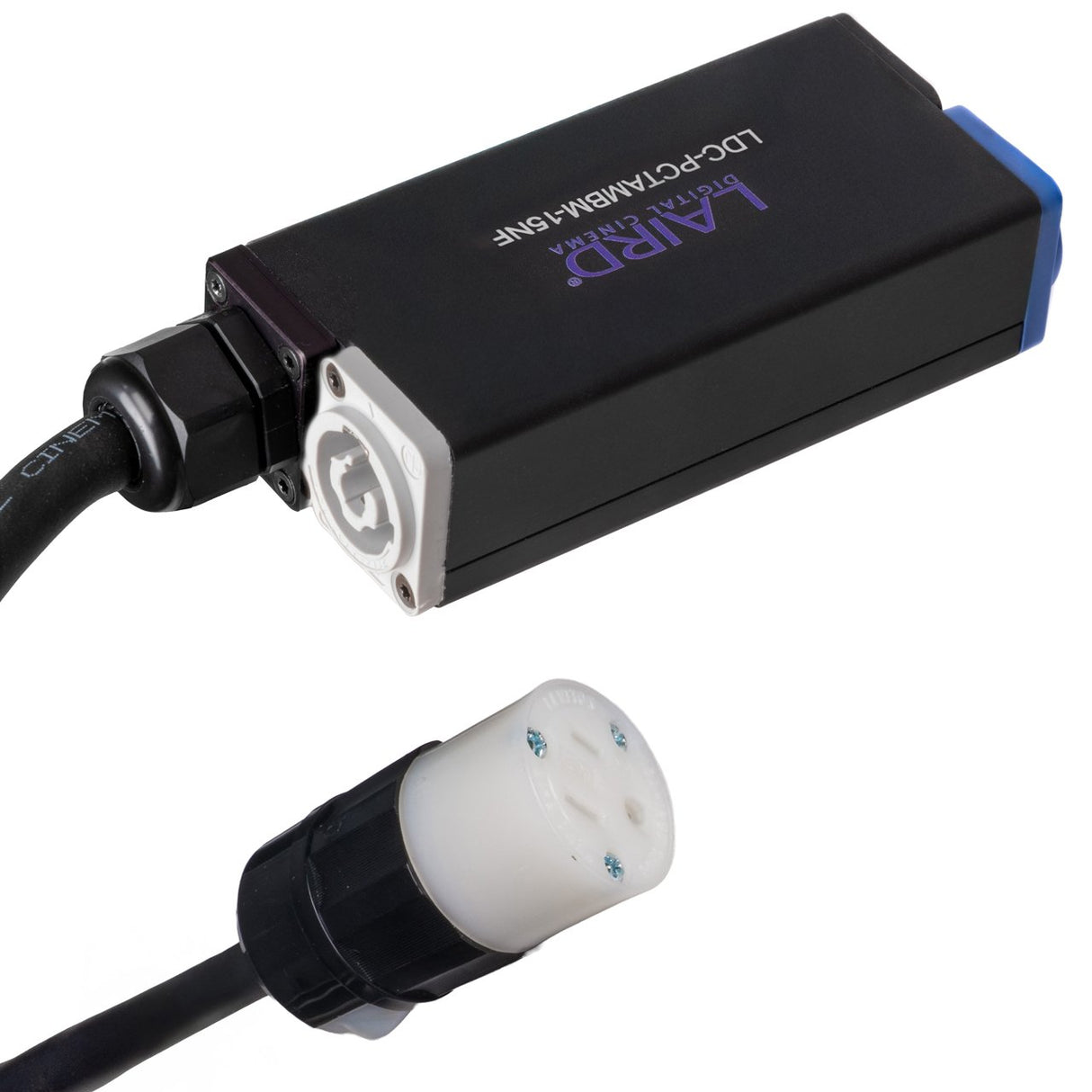

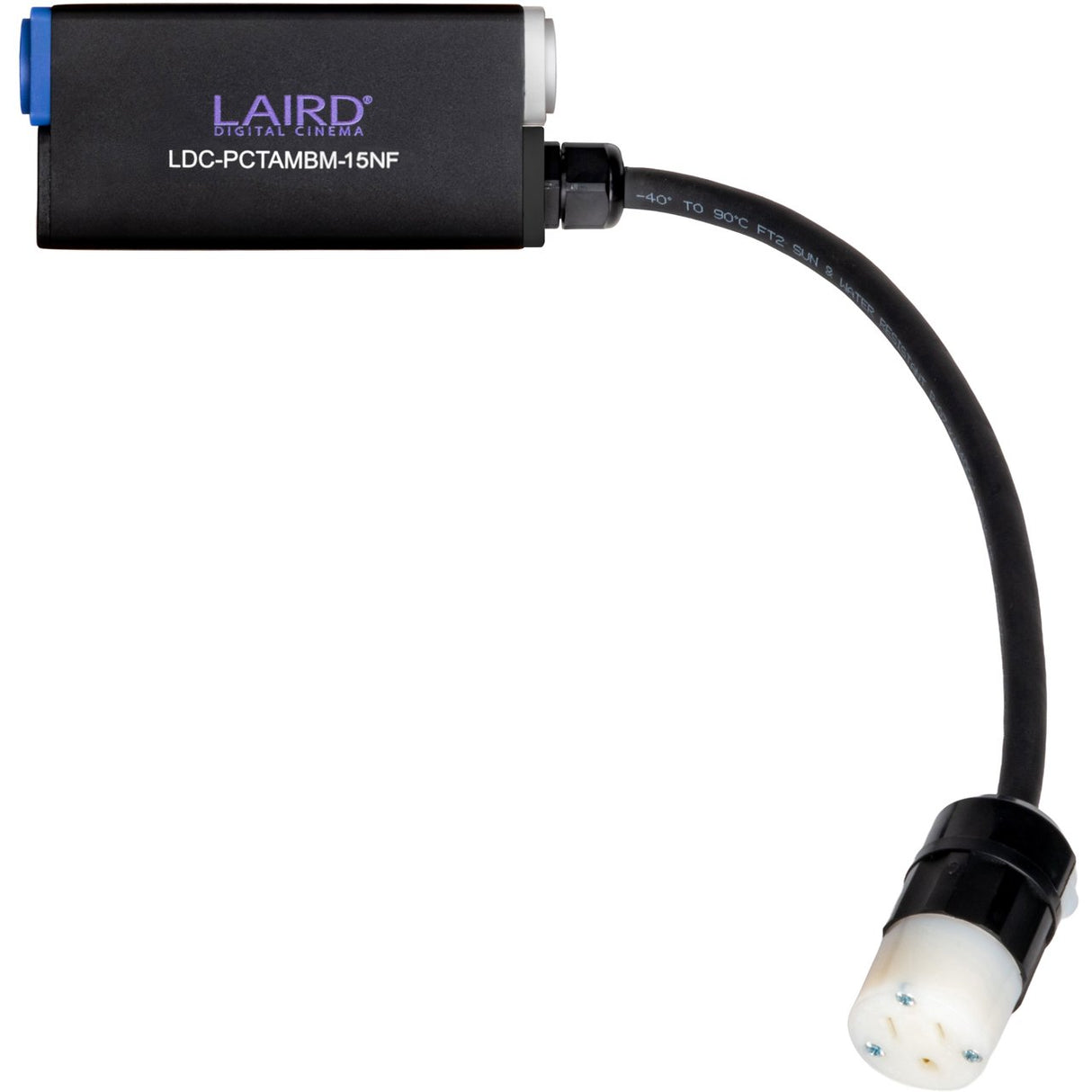

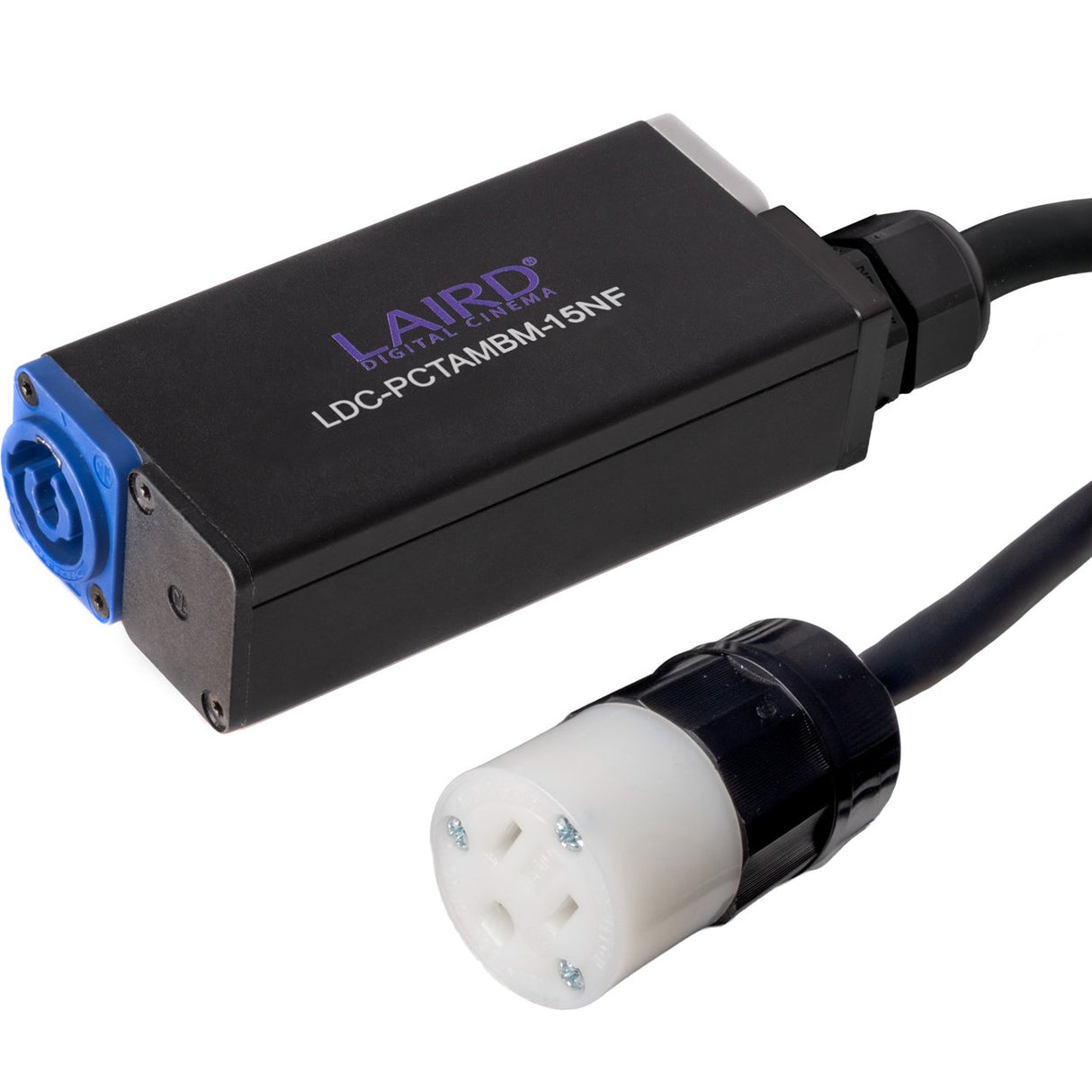

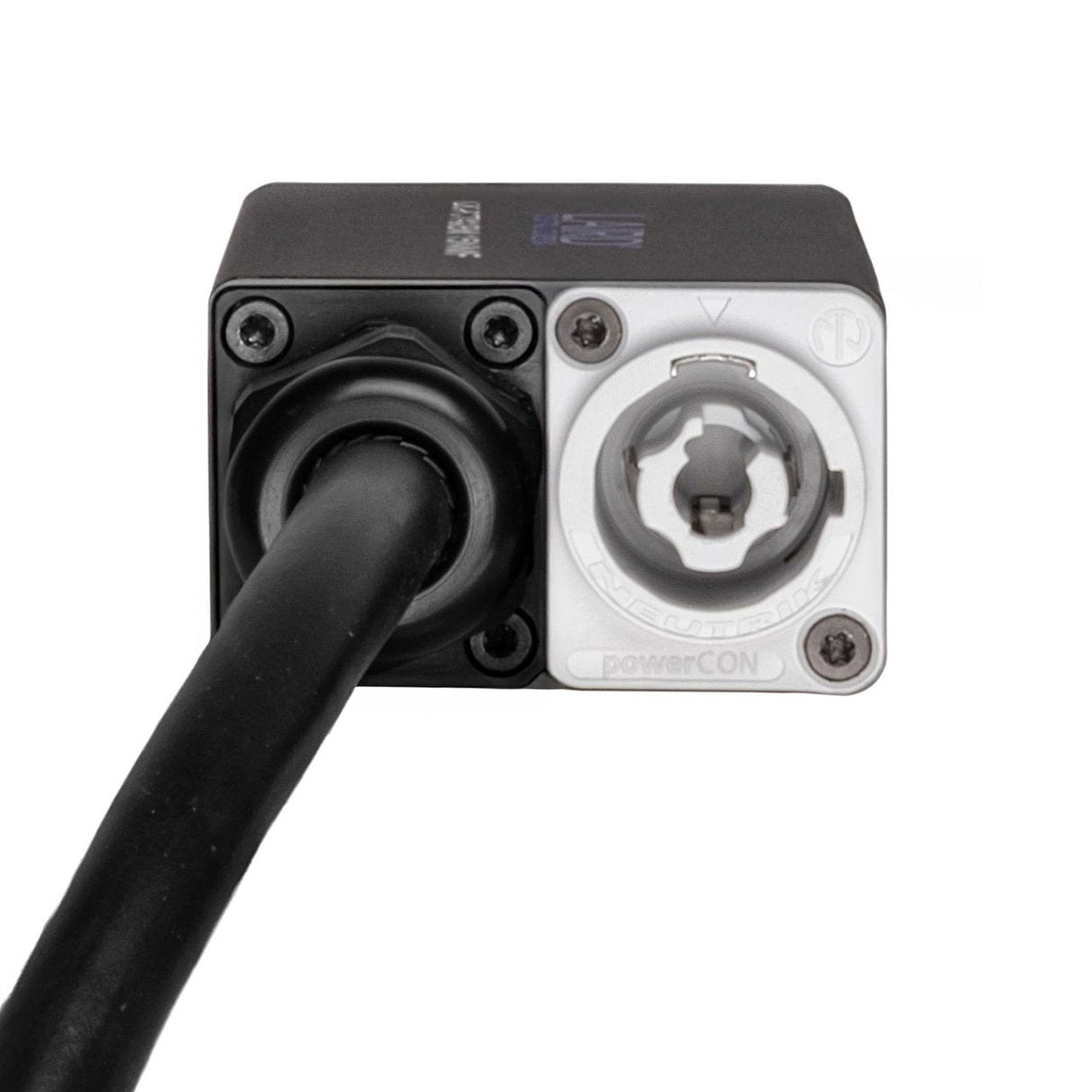

Laird LDC-PCTAMBM-15NF powerCON Power Distribution Splitter Cable
The Laird LDC-PCTAMBM-15NF power distribution splitter is designed to route power from a Neutrik powerCON Type A input to mixed professional power outputs used in live production systems. It is built for professional audio, lighting, and event environments where dependable power distribution is required.
This LDC-PCTAM series splitter supports feed thru power routing to allow daisy chaining of multiple boxes while maintaining consistent power delivery. Premium cabling and Neutrik connectors are selected to support repeated use in demanding field applications.
Ideal for touring rigs, stage power drops, and production racks, this splitter helps simplify power management in compact setups. Its rugged construction supports reliable operation in professional AV and live event workflows.
Key Features
- Power Distribution: Routes power from a Neutrik powerCON Type A input to mixed output connectors.
- Dual Output Design: Provides one Neutrik powerCON Type B output and one Edison female receptacle.
- Daisy Chain Support: Feed thru connectors enable chaining multiple power distribution boxes.
- Rugged Power Cable: Built using Laird PWR-12-3-TP rugged yet flexible power cable.
- Durable Enclosure: Rugged aluminum enclosure designed for professional field use.
Technical Specifications
- Input Connector: 1 Neutrik powerCON Type A.
- Output Connectors: 1 Neutrik powerCON Type B and 1 Edison female receptacle.
- Enclosure Dimensions: 4 x 2.04 x 1.24 in.
- Cable Type: SJOOW.
- Conductors: 3 x 12 AWG.
- Current Carrying Capacity: 25 A.
- Cable Outer Diameter: 0.42 to 0.47 in.
- Outer Jacket: Rubber CPE black.
- Cable Insulation: Rubber EPR.
- Neutrik Connector Amperage: 20 A.
- Neutrik Connector Rated Voltage: 250 VAC.
- Leviton Connector Amperage: 15 A.
- Leviton Connector Rated Voltage: 125 VAC.
- Leviton Contact Material: Solid brass.
